1PC Lithium Battery High Speed Electric
Grape Pruning Shears electric pruner for Vineyard and Orchard
Notice : if your place is remote ,then need to pay 35usd .
Feature:
1. Uses aviation material magnesium alloy shell, streamlined design and the shell is covered with rubber, more in line with ergonomic design, grip more comfortable.
2.The branch cutting section smooth, easy to heal, can effectively avoid due to shear uneven or tearing the bark cause stem rot disease.
3.Physical / mechanical safety door: blade wrench to follow and card dead state, the circuit self-test program will start motor control, protect the motor will not burn. Motor protection function (DC brushless motor).
4.Holzer chip switch control. According to the trigger blade will open and then closed edge. Battery overload overheating over discharge under pressure will be protected by the circuit board to maintain the normal performance.
5.Trimming efficiency: compared with the traditional manual scissors, is the traditional manual scissors efficiency 3-5 times.

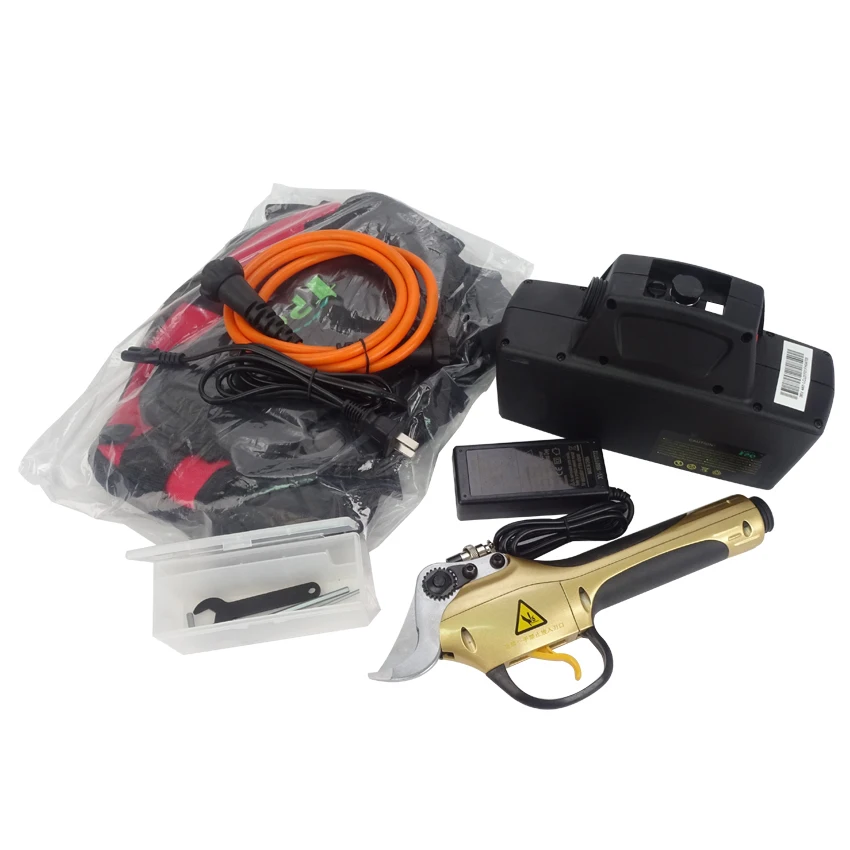

Battery, power cable and backpack:
(1)the battery uses a lithium battery with high performance at best, storage capacity, lightweight, portable and more convenient. Charging time 3-4 hours, you can use 8 hours (cut 20mm branches 10000 times), the battery weight is 1.2kg.
(2)the power connection line after a rigorous testing and testing, two hundred thousand times will not be broken.

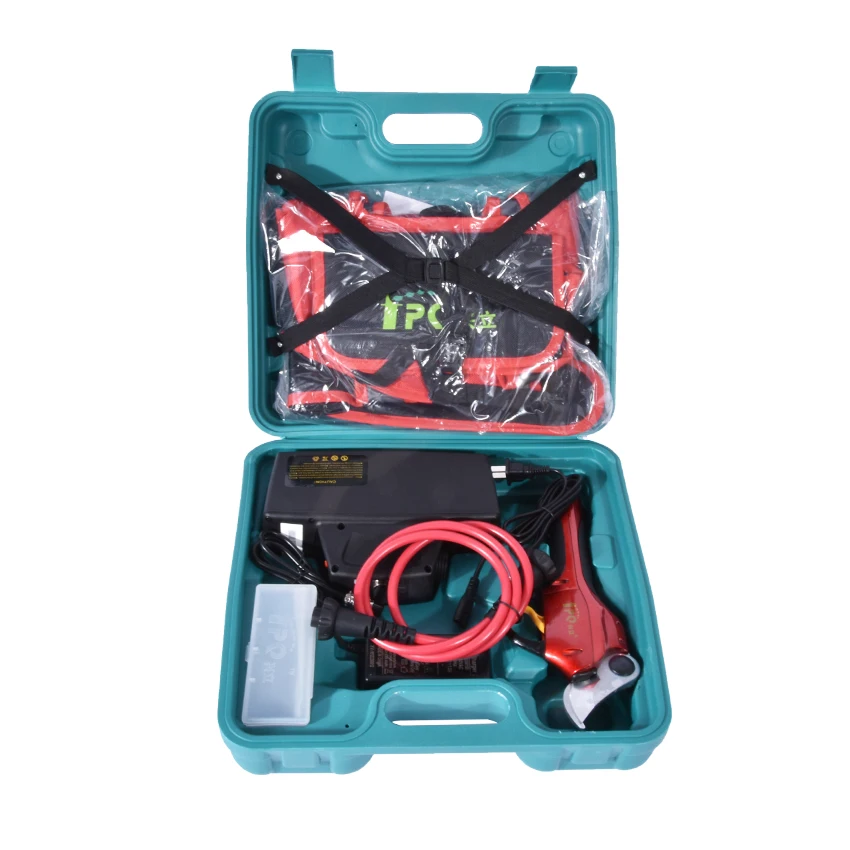

(3)SCA2-2 backpack with two straps.
Scope of application:
(1)Electric shears for fruit trees, gardens, mulberry, grape pruning.
(2)Suitable units for orchard, landscaping company, sericulture company, vineyards, schools, factories, villas and other units and individuals.

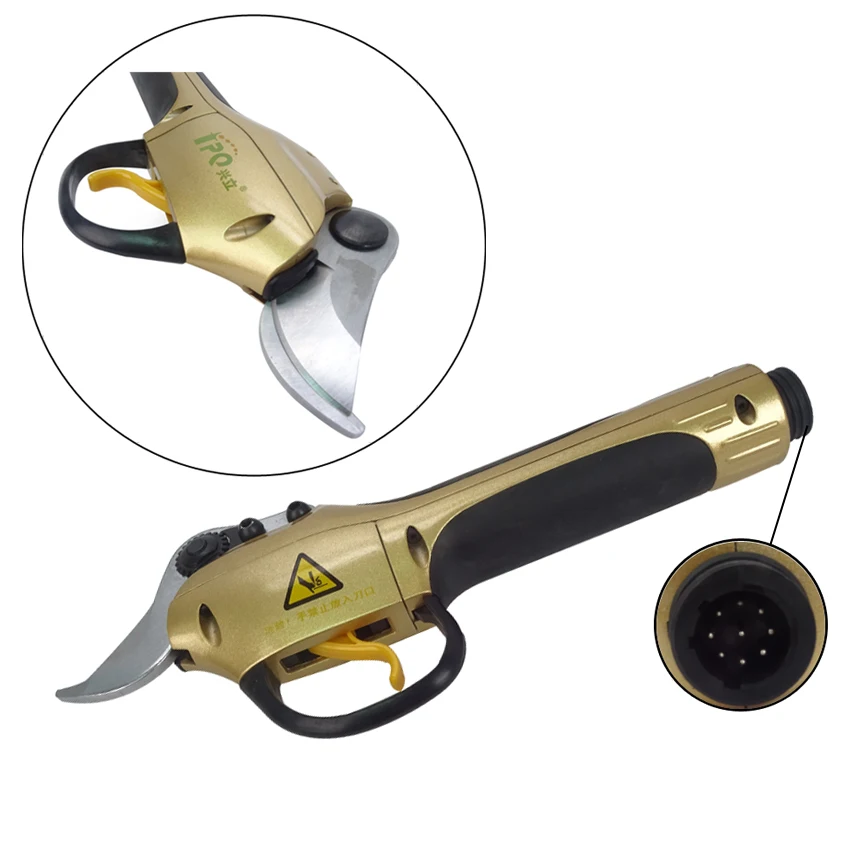

picture showing

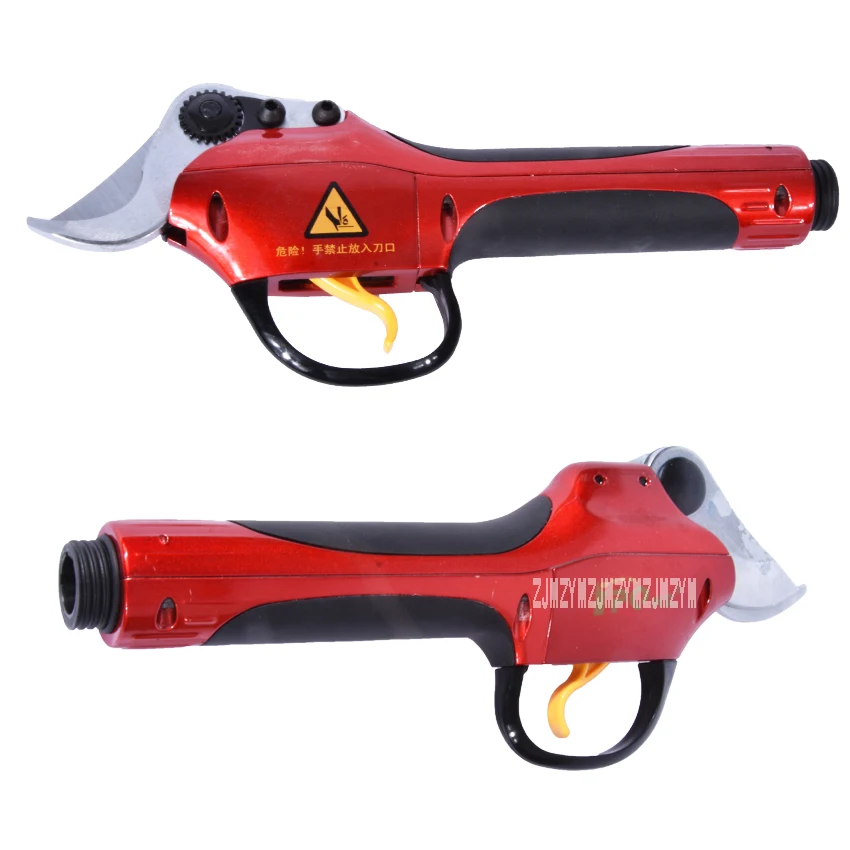

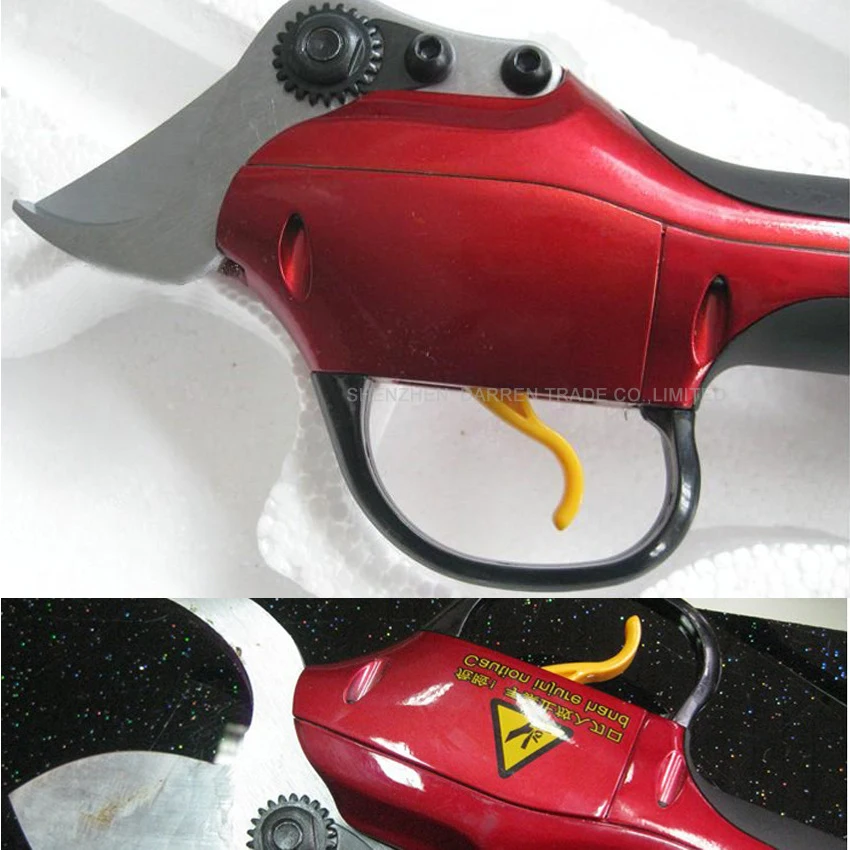

Pruning shears:
Maximum shear: 30mm (wet branches), 20mm (dry branches)
Rated voltage: DC36V
Rated power: 300W
Rated current: 10A
Current protection stop point:"=40A
Protection level: II
Net weight: 0.9KG

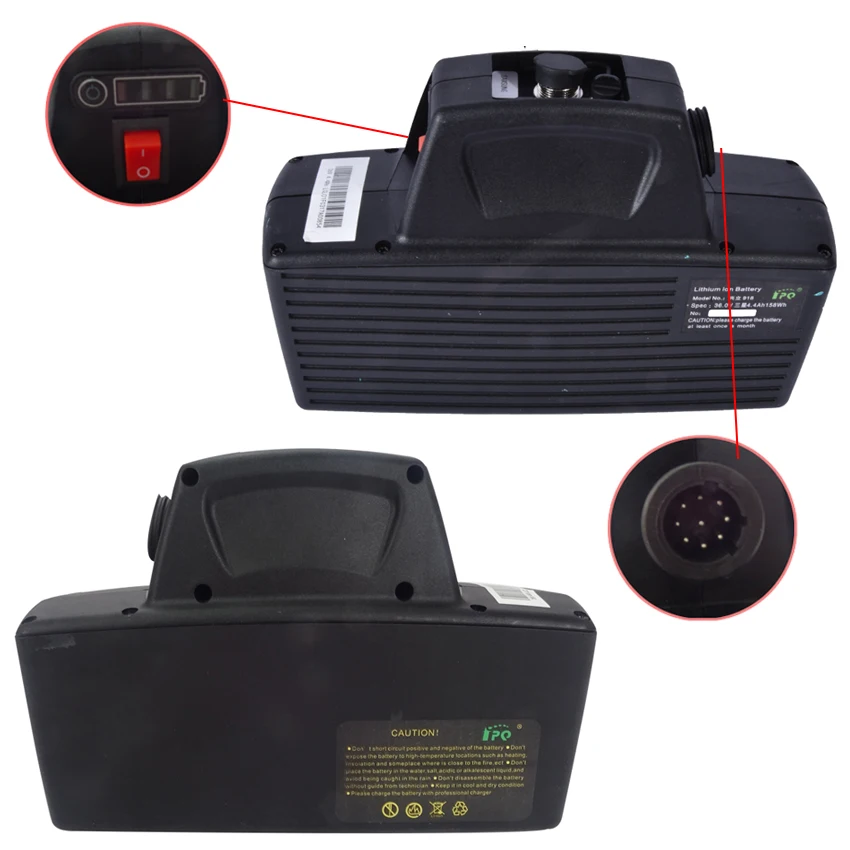

Battery (Lithium Battery):
Capacity: 4Ah
Voltage: 36V
Working time: 8h
Net weight: 1.5kg

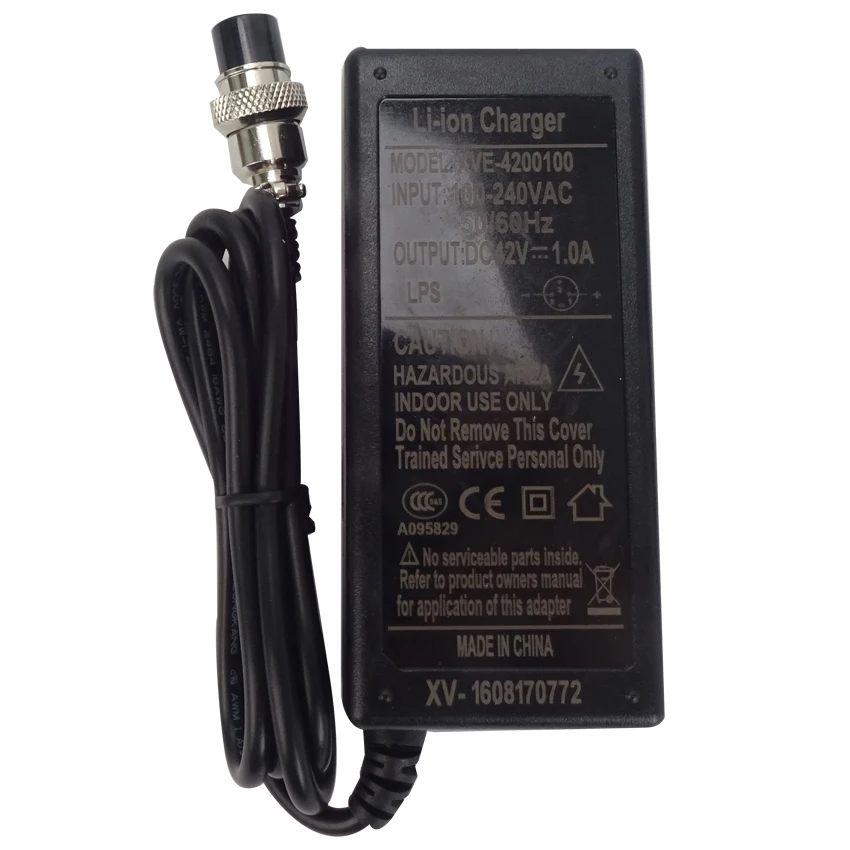

charger:
Rated voltage: 100-240V AC, 50-60Hz
Output voltage: DC41.5V
Charging current: 1A
Protection level: II
Charging time: 4-5h
Indicator light
lithium battery:
LED lights remaining battery power
Green 3 cells----- 80%-100%
Green 2 cells----- 50%-80%
Green 1 cell ------ 50%-30%
Red 1 cell ---------30% or less
charger:
Indicator------Status
Red------------Charging
Green--------- Charging completed
Pruning shears operation tone:
Beep--------Interval ---------- Times ------ Note
Once-------0.3 seconds each time ------ Do not repeat ----start and stop, size knife edge switch
Ringing twice --- every 0.3 seconds ------- Repeat 10 times ------- Charging or scissors are not connected. Please check whether the nuts on both sides of the scissors and battery are firmly connected.
Ringing three times ---- 0.3 seconds each time ----- Repeat 10 times ----- This means that the stroke plate opens Hall fault
Ringing four times ---- 0.3 seconds each time ----- Repeat 10 times ----- Said stroke plate closed Hall failure
Short beeps four times ---- 0.1 seconds each time - no repeat ------ indicates that the battery usage has been completed. Charge it as soon as possible
Ring 10 times ---- 0.3 seconds each time - Repeat 10 times - This means that the scissors have been trimmed 100,000 times. Remove the front lid: inserts, pins, screws, and joints at each joint Add specific grease maintenance
Long ring once ----- 5 seconds at a time ---- Repeat 10 times ----- The scissors have been trimmed 500,000 times, requiring full inspection and maintenance
Note:
1. Before disassembling and maintenance, you must turn off the power and pull out the cable
2. Make sure that the mechanical parts are turned on after the power supply is tested and that they must be operated strictly in accordance with the safety requirements of the manual.
3. The motor control part is strictly prohibited disassembly
4. When storing the battery, it must be fully charged. (When not in use, charge and discharge the battery at least once a month. Do not turn on the power switch during storage.)
NOTE: Color is ramdon
NOTE:It is normal if there are any small broken of the Plastic box ,it will not effect use.Please understanding,thanks!!!
