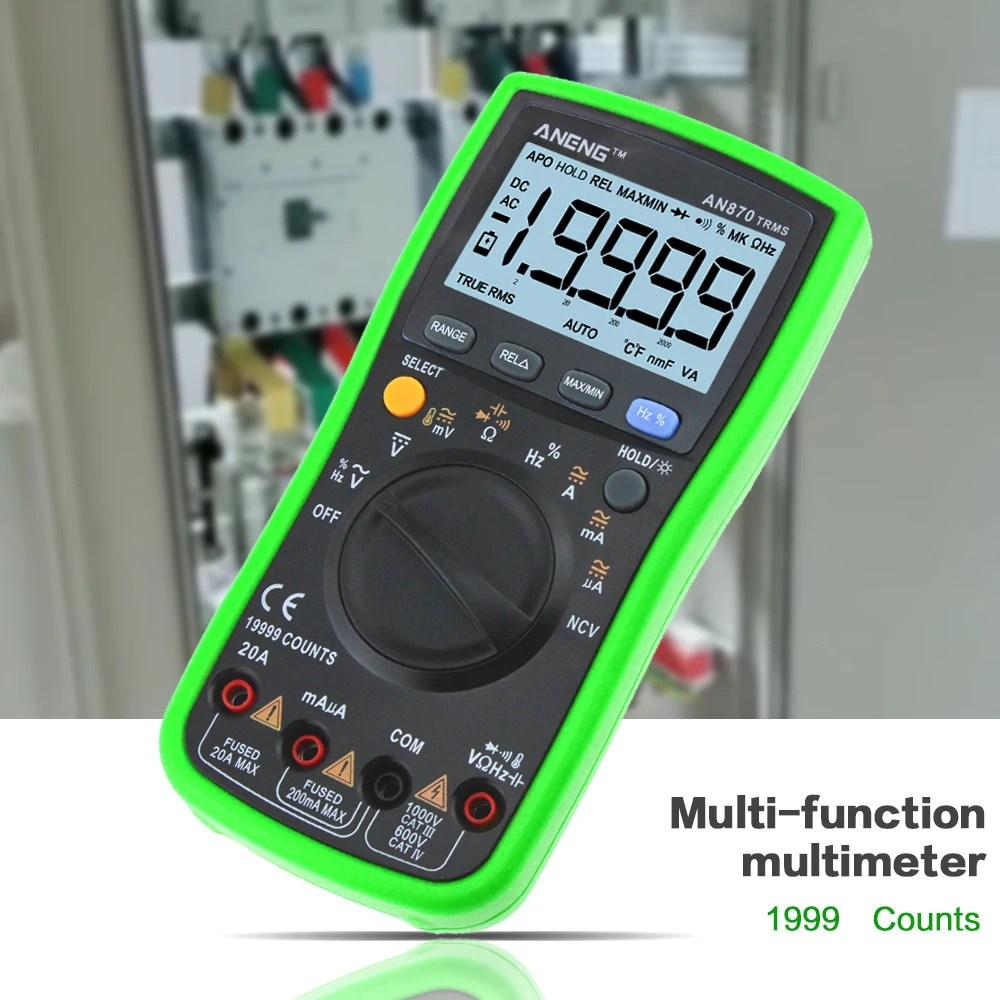

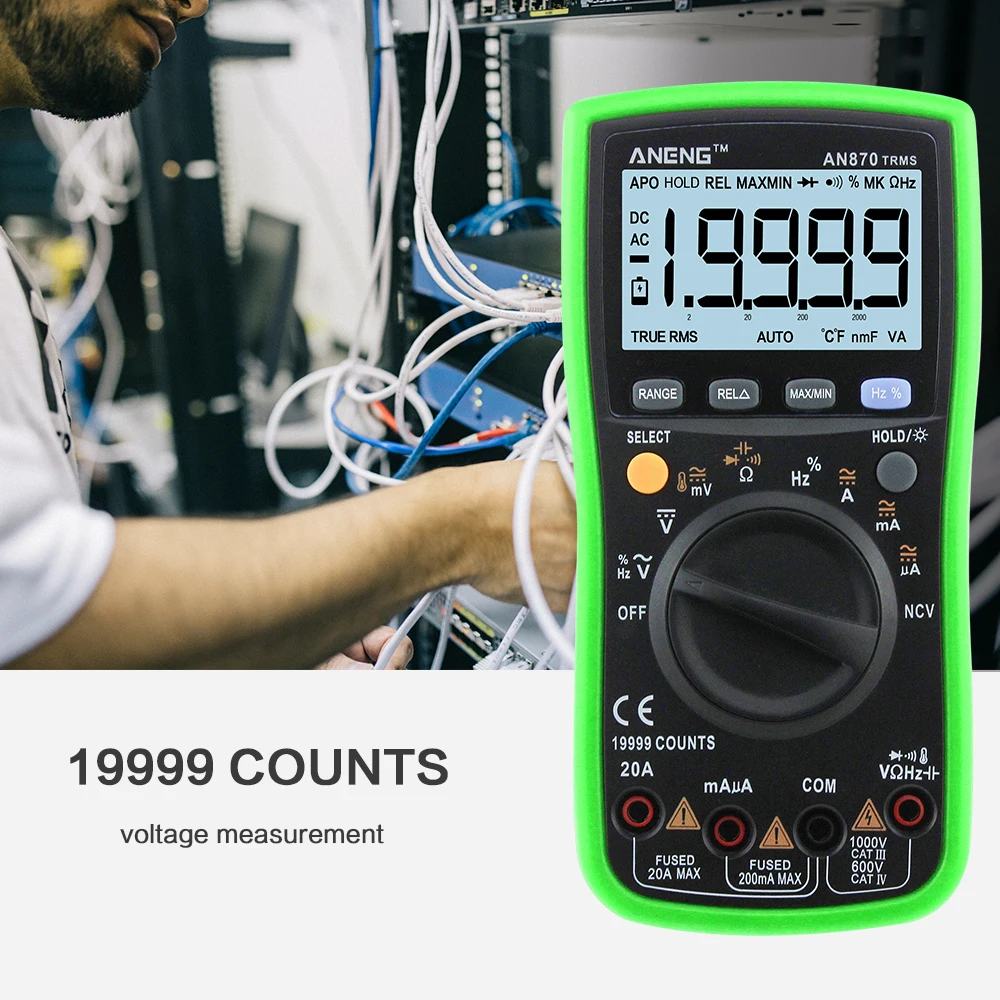

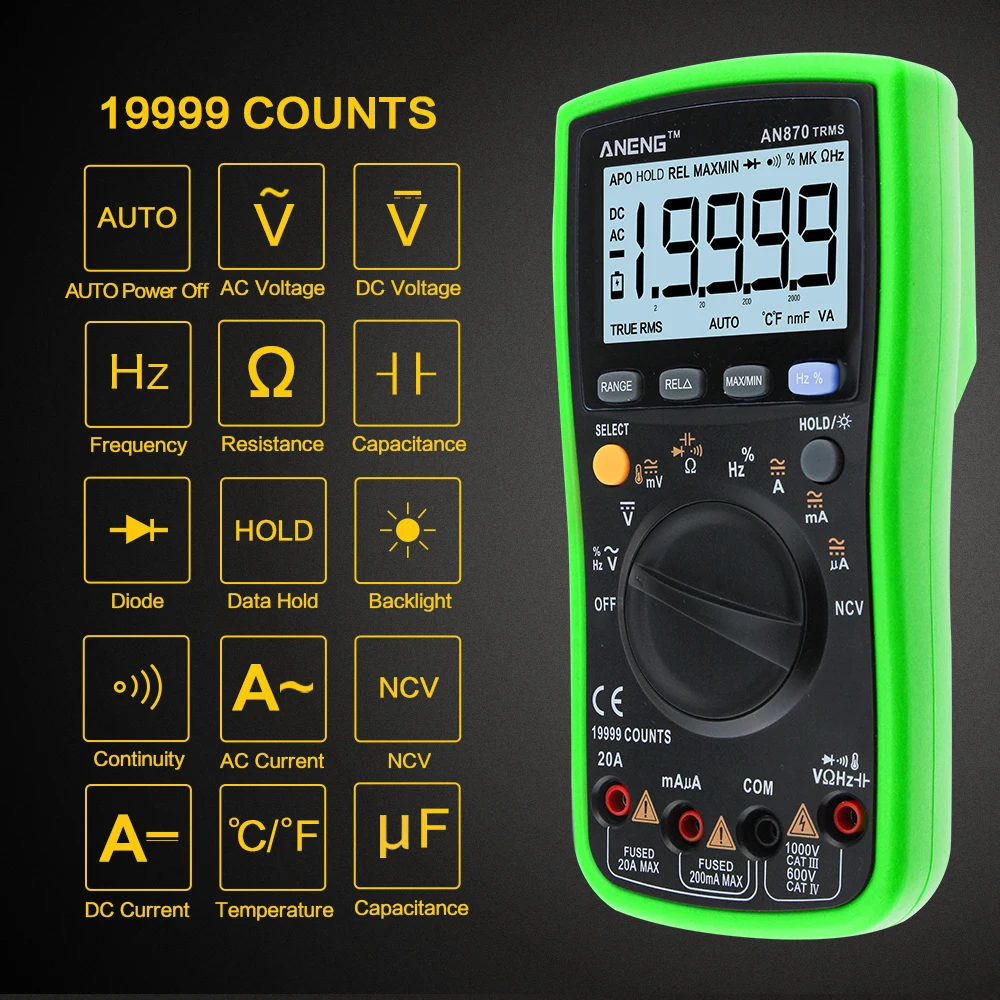

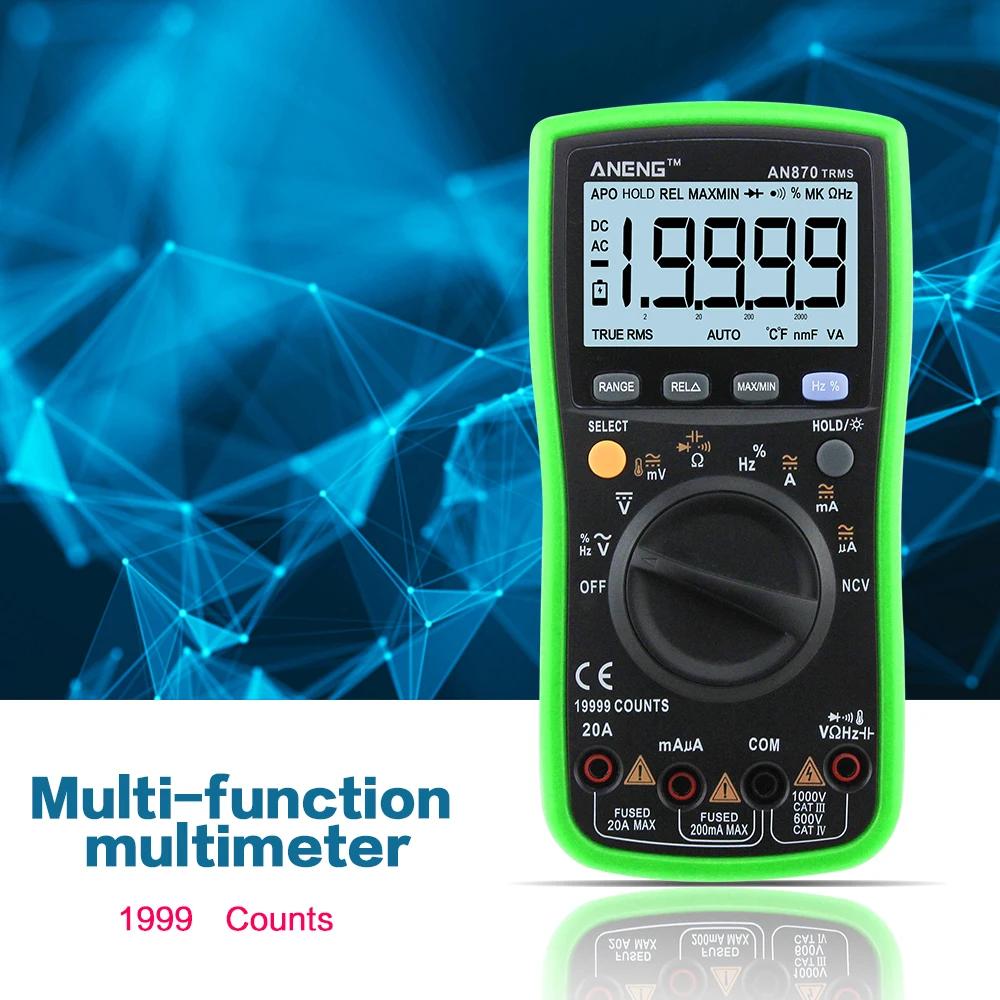

ANENG AN870 19999 counts Auto Range Digital Precision multimeter True-RMS NCV Ohmmeter AC/DC Voltage Ammeter Transistor Tester

Measuring Inductance Range: NO

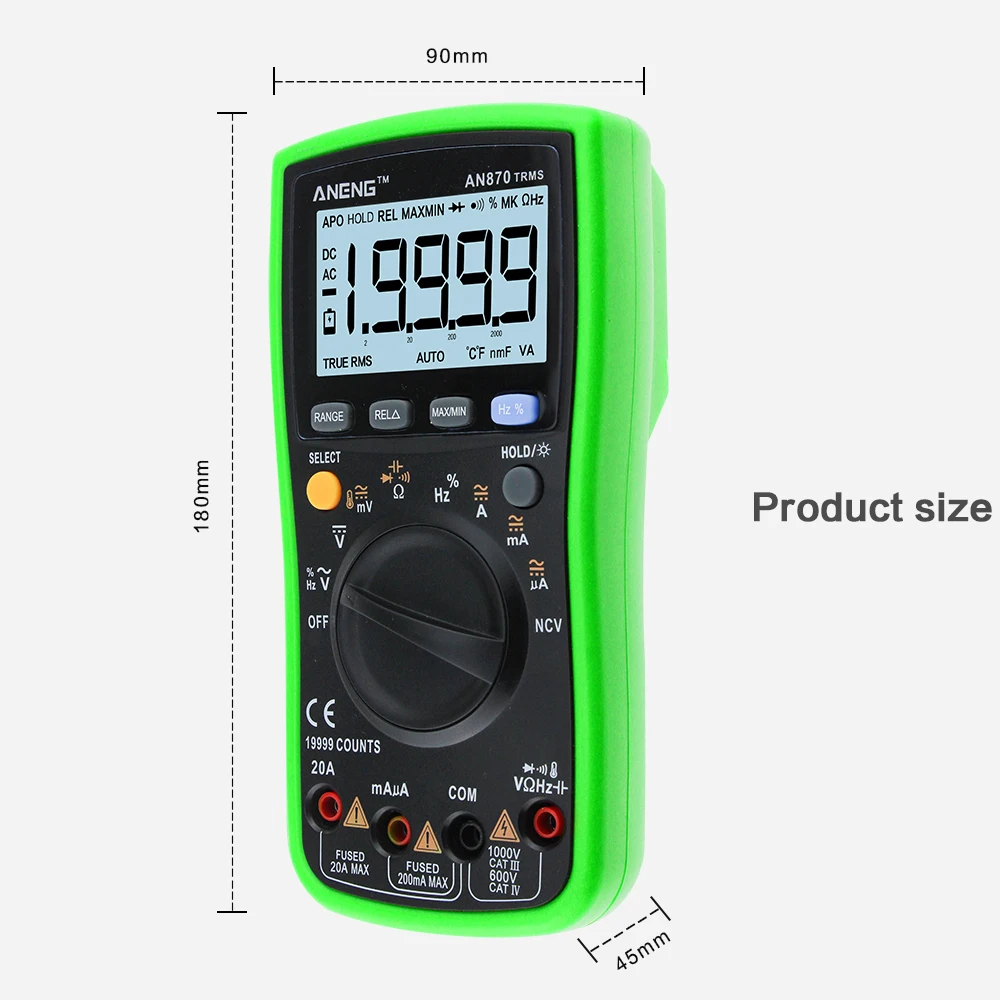

Dimensions: 180x90x45 mm

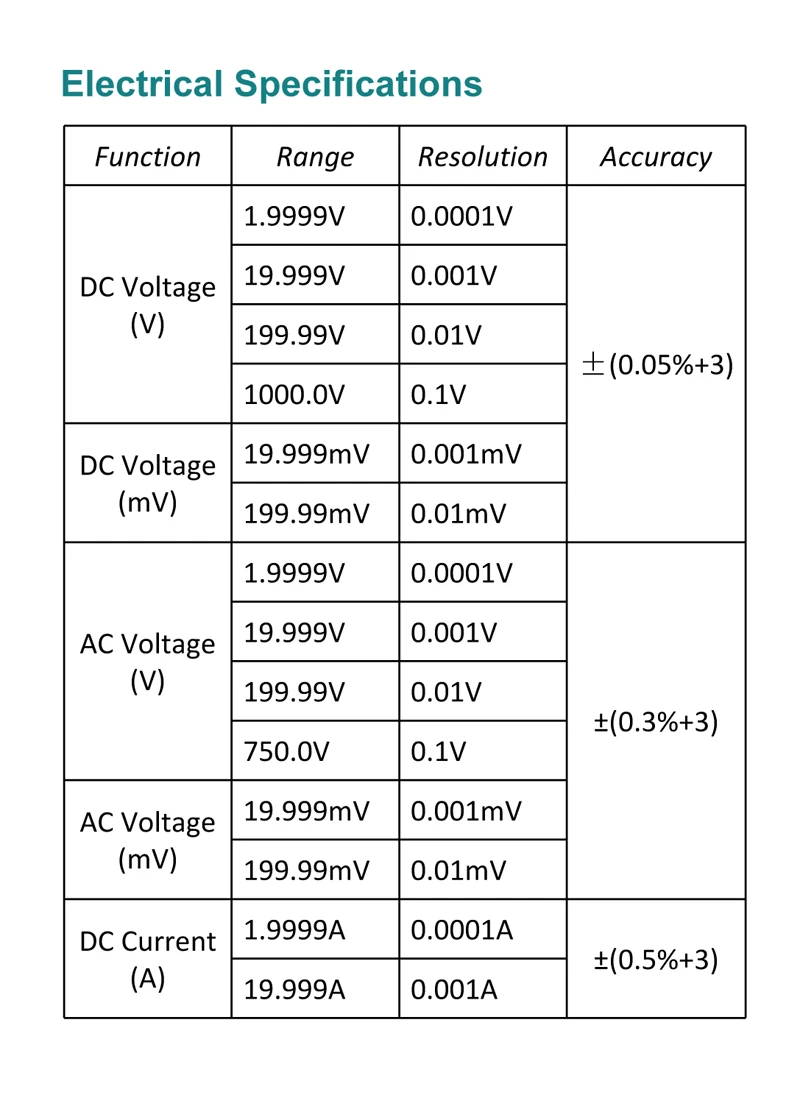

DC Voltage: 19.999mV/199.99mV/1.9999V/19.999V/199.99V/1000V

DIY Supplies: Electrical

AC Voltage: 19.999mV/199.99mV/1.9999V/19.999V/199.99V/750ACV

Operating Mode: Auto/Manual Ranging

Measuring Resistance Range: 199.99/1.9999K/19.999k/199.99k/1.9999M/19.999M/199.99M

Brand Name: ANENG

Model Number: AN870

Operating Temperature: 0 - 40 ℃

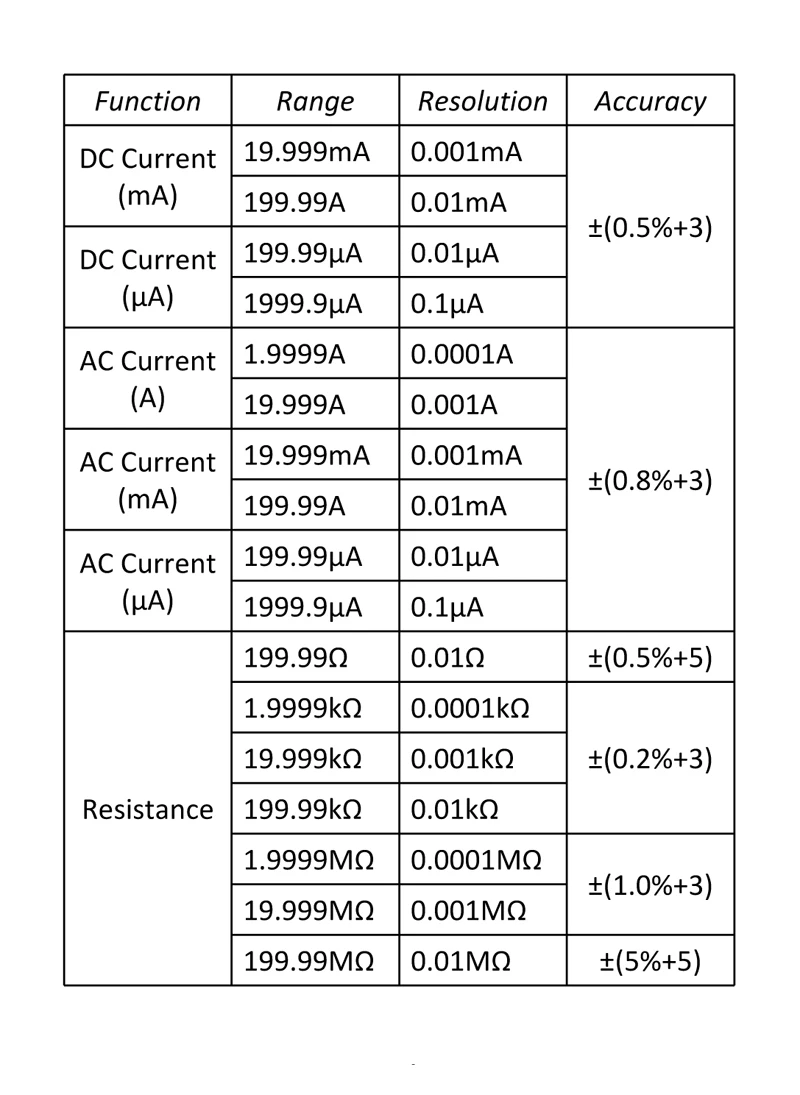

AC Current: (199.99-1999.9)uA/(19.999-199.99)mA/1.9999-199.99uA

DC Current: (199.99-1999.9)uA/(19.999-199.99)mA/1.9999-199.99uA

Display Type: Digital Display

Measuring Capacitance Range: 9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999MF

Frequency: 99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz

Temperature: -20~1000C/-4~1832F

Diode Test: Yes

NCV: Yes

Continuity: Yes

Auto-Power Off: Yes

Battery Type: 2*1.5V AA (not included)

ANENG AN870 19999 counts Auto Range Digital Precision multimeter True-RMS NCV Ohmmeter AC/DC Voltage Ammeter Transistor Tester

Please note: the device is an auto-ranging multimeter,so the mV function is always jumps, this is not defect, it is correct

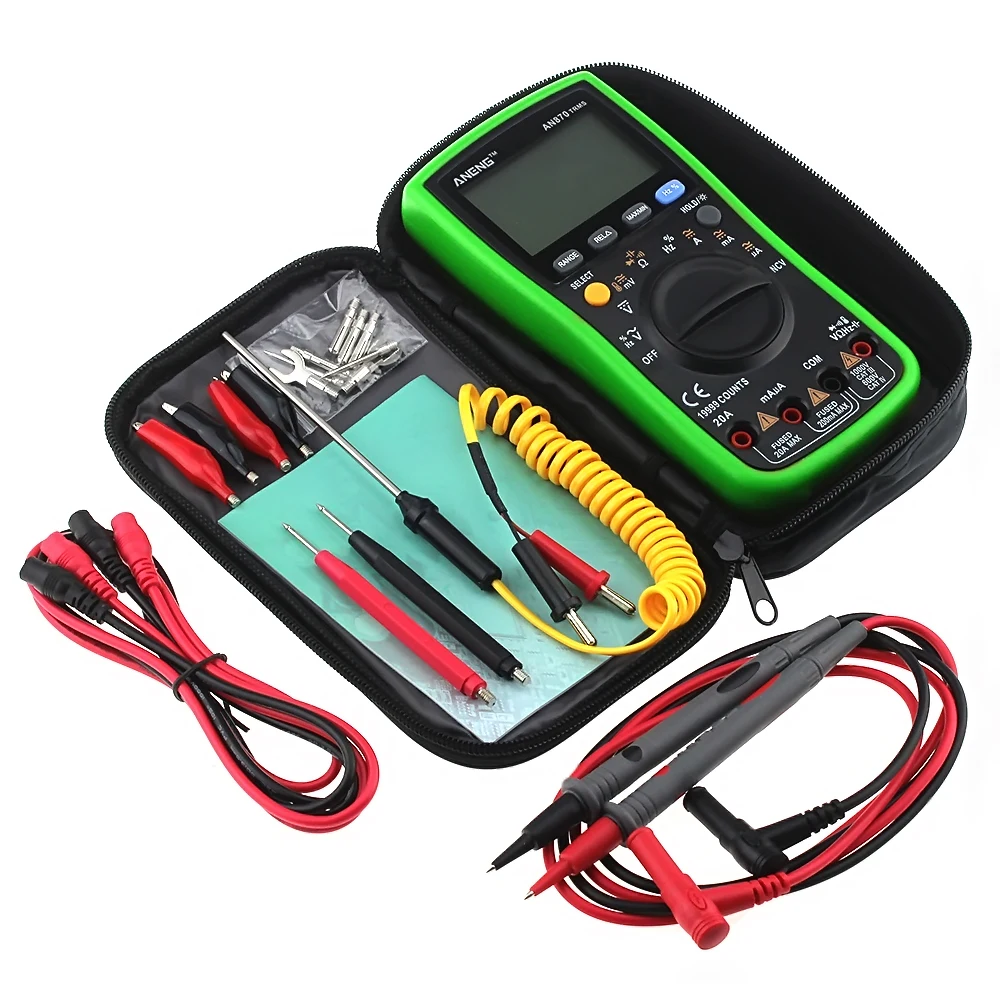

Package includes:

1 x Multimeter

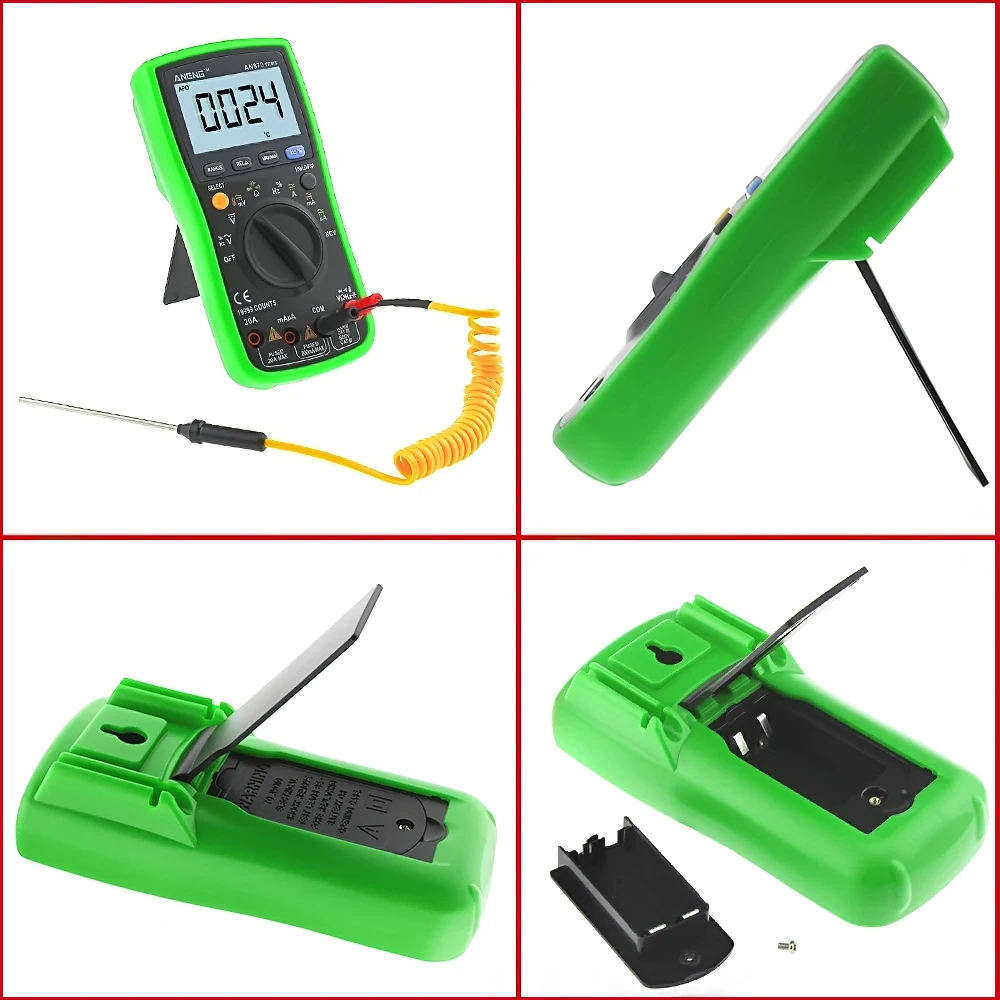

1 x Test lead+temperature sensor

2 x Test Leads (Red+black)

1 x 16 in 1 Multifunctional Test Line

1 x Storage Bag

1 x User\'s Manual ( English )



The product is battery-powered with true-rms, LCD display and backlight.

1. Do NOT exceed the “maximum value” indicated in the Specification;

2. Do NOT input voltage at the Current Mode, the Resistance Mode, the Diode  Mode,

    the Continuity Mode, or the Temperature Mode;

3. Do NOT use the product when the batteries or the battery cover is not placed  properly;

4. Turn off the product and remove the test leads from the test points before  changing batteries or fuses.

5. Do not input voltage exceeds 36V DC or 25V AC when you are at the setting of measuring current.
