CNC router Linear Guide Rail 6040L-1.5KW 3axis mach3 engraving machine

Model Number: cnc router 6040

CNC or Not: CNC

Condition: New

Voltage: 220V

Spindle motor: 6040L-1.5KW 3axis

Maximum operating frequency: 400HZ

Radial runout: 0.01mm

Collet type: ER11,1/8"(3.175mm) Collet

Rail type: Linear guide rail TRH20 (more precise moving)

Linear Guide Rail CNC router Engraving Drilling and Milling Machine

LY CNC 6040L-1.5KW 3axis

Mini NEMA23 57 Stepper Motor Base Bracket Mount for DIY CNC LatheUSD 6.21

Wood router cnc lathe machine 4030 1.5kw USB port InterfaceUSD 1880.00-2360.00

5pcs Light Pipes 300mm 1/4 Round Nozzle Water Cooling Flexible With Plastic MayitrUSD 10.70

DIY CNC Router Engraver machine LY Mini with 200W spindle motorUSD 659.00

DIY CNC Kit 0.8KW 1.5KW CNC Spindle Motor + ER11 1.5kw 2.2KW Inverter VFD for CNC Router Milling MachineUSD 340.00-380.00

1500W USB 3 Axes 4 Axis CNC Router 6040 Woodworking PCB Milling Drilling Machine with MACH3 Remote ControllerUSD 2100.00-2600.00

2200W 3 Axes 4 Axis Mini CNC Router 8060 USB Limit Switch CNC Metal Milling Cutting Machine with MACH3 Remote ControllerUSD 3150.00-3630.00

Introduction

The CNC 6040 router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

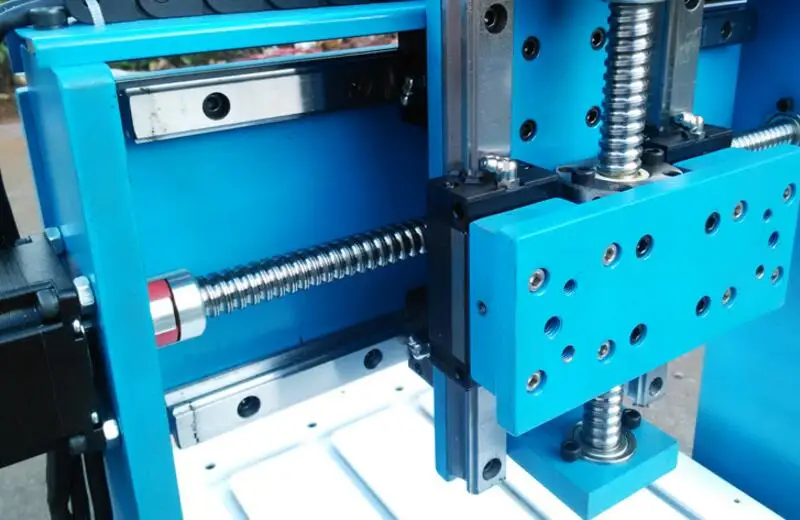

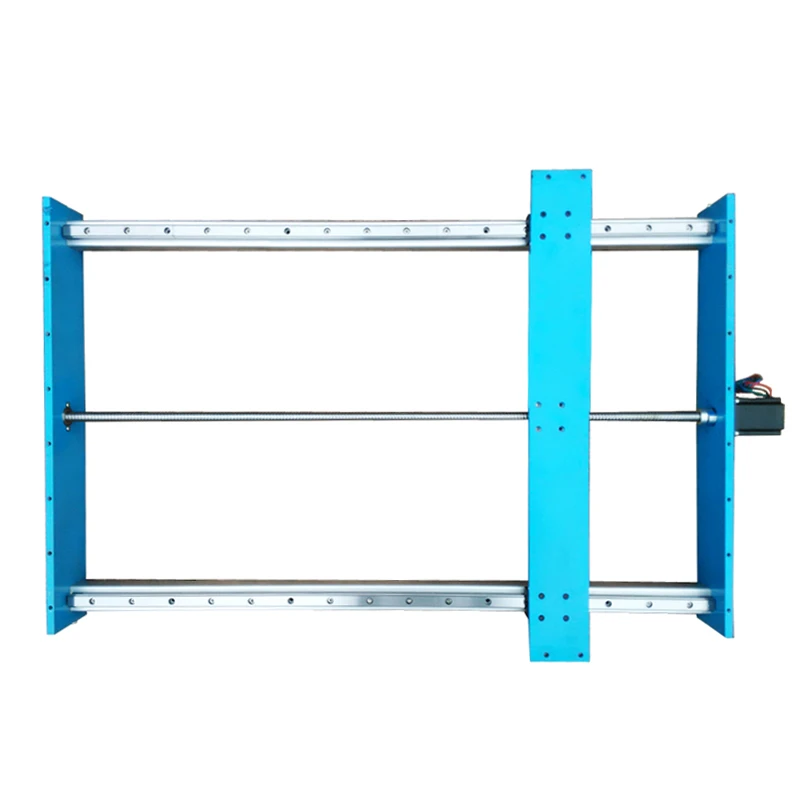

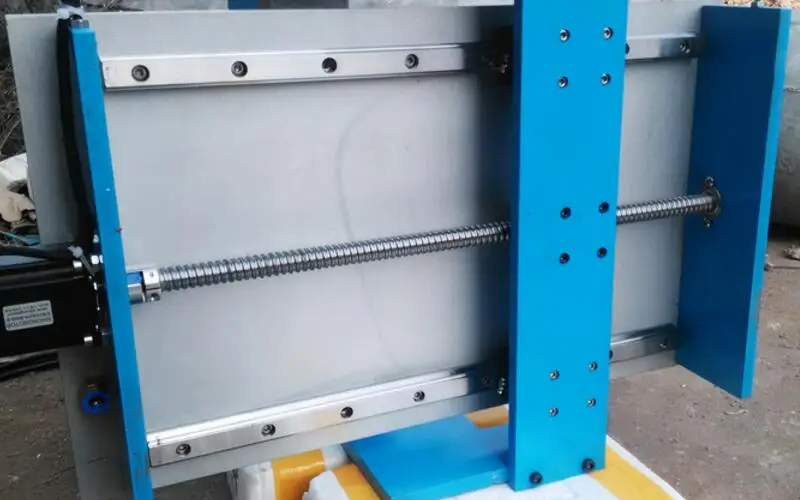

Linear Guide Rail, More Precise on moving.

The engraving process is visible as controlled by computer

Simple operation and installation

Warranty

1 year full warranty directly from factory



Shipping

•     By DHL & UPS & FEDEX with tracking number, need 5~10 days;

•     By SEA , need 40~50 days;

•     Please email us your phone number after you pay for the item only for delivery purpose.





Technical Parameters

MODEL	6040L-1.5KW 3axis
Machine Dimensions:	830 *620 * 600mm
Rack material:	6061 and 6063 Hard aluminum alloy
Table size	460 * 720mm (20mm aluminum alloy T table)
Engraving area:	360 *570mm
Z-Axis Stroke:	120mm, Engraving depth depends on the length of the tool edge
Acceptable material thickness：	140mm

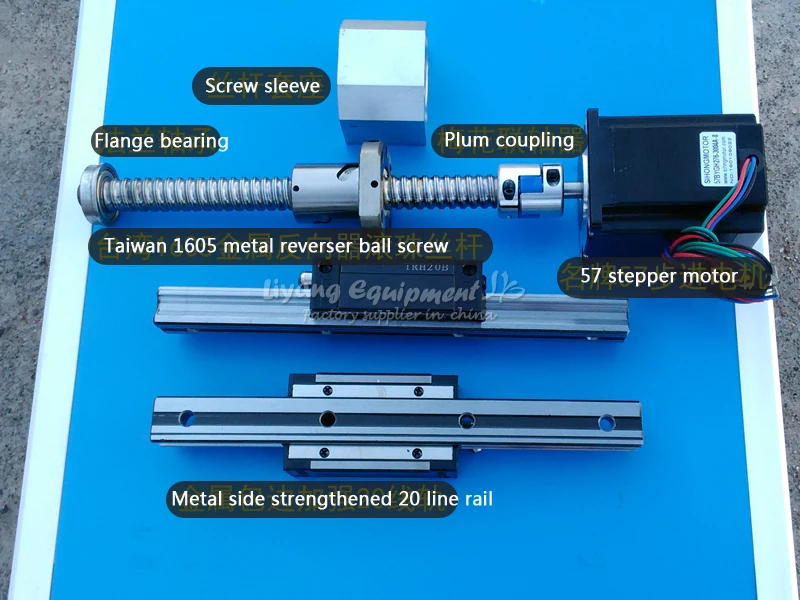

Rail type:	Linear guide rail TRH20 (more precise moving)
Type of screw:	Taiwan TBI Ball screw 1605
Spindle motor:	1.5KW VFD water cooling spindle , 0-24000r/min
Collet type:	ER11,1/8"(3.175mm) and 6mm Collet
Stepper motor and drive:	two-phase 57/3A
Maximum operating speed:	4000mm/min (Engraving speed :　300-3000mm/min)
Repeat positioning Accuracy:	0.03mm

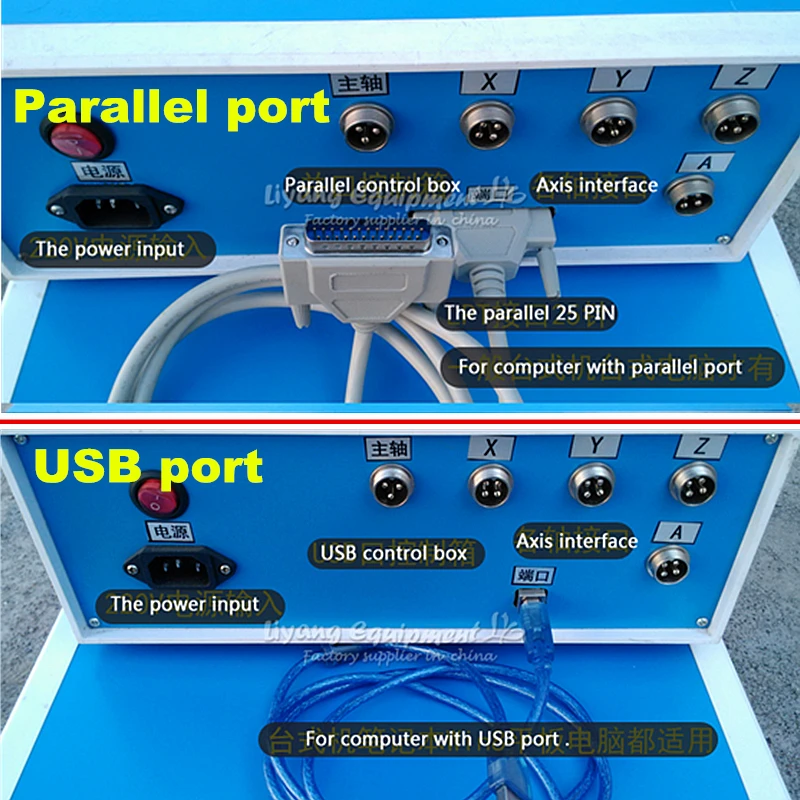

Communication interface:	Parallel port or USB port
Tool auto-checking	yes

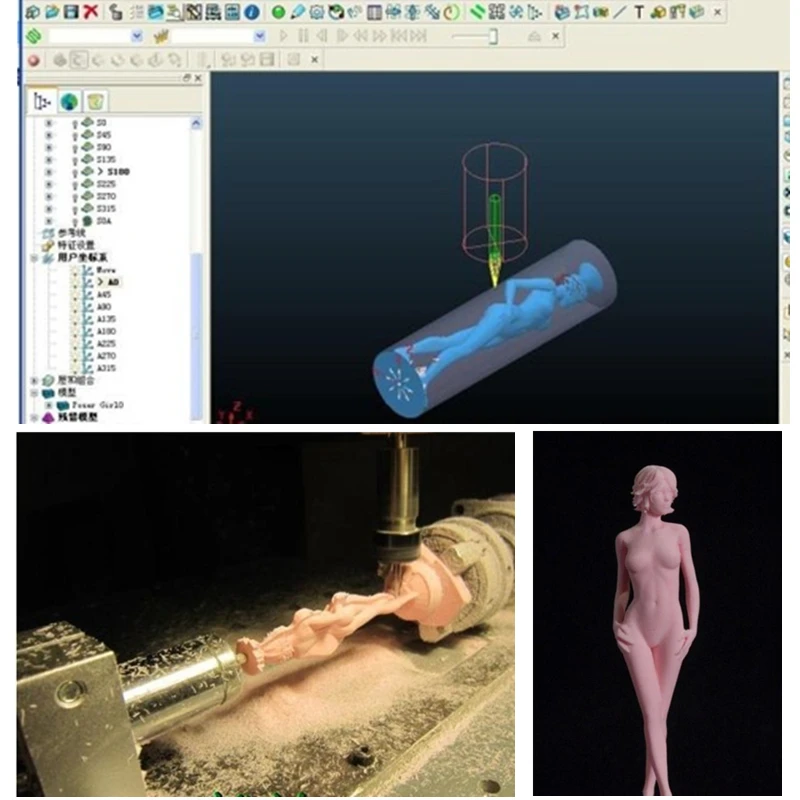

Software Compatability:	Mach3 (Type3,Wentai, ArtCAM, coppercam)
Command code:	G code/.nc/.ncc/.tab/.txt
Machine weight:	130kg
Rotation Axis (4th Axis) Can add 4th axis	----



Note:

This machine have other spindle, For example 800W and 2.2KW;

But the price may be different;

If you need other spindle ,please message us or contact us, thank you very much;



































Attribute	3axis
	Parallel port	USB port
Axis	3axis	3axis
Interface	Parallel port	USB port
Weigh	130	130
Packing list
1× Engraving machine	√	√
1× Control box	√	√
1× Power cable	√	√
1× Parallel port cable	√	ⅹ
1× USB port cable	ⅹ	√
1× Tool package (tools 8 pcs, wrench 2pcs, clamp 4pcs)	√	√
1× Rotation axis	ⅹ	ⅹ
1×tool auto-checking instrument	√	√
1x water pump	√	√
1× CD (if not get, may be lost in customs, please contact us)	√	√

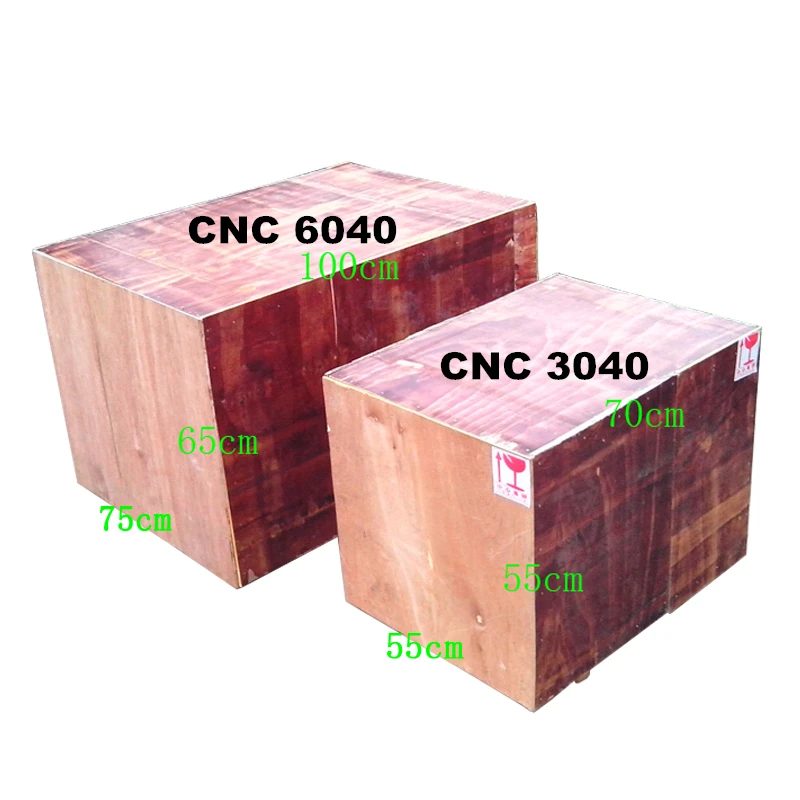

Shipment



After payment is done and passed aliexpress checking, shipping will be made within 7 work days.



Custom Duty

A  Seller’s shipping method  means send machine to local seaport by sea , terms is CFR. please make sure can clear customs .

Import duties,taxes and your local fees are not included in the price or shipping charge .These charges are the buyer\'s responsibity.Pls make sure you can clear customs before order if can not clear customs before the deadline, your Customs will distroy the goods, and you have to bear all cost caused by the Customs clearance dealy. If want to send by courier like DHL, UPS, Fedex or EMS, pls provide us with your city name, post code, so we can check if arrive, if remote areas and how much they cost.



B  Please check with your country\'s customs office to determine what these additional costs will be before you order.



Note



A  Pls check all goods carefully before you sign to accept the package and report to us within one week if there are any parts loss or machine problems. Pls show related photos and videos.



B Due to machine is special product, big size, if shipping back, shipping cost and import tax will be very high, so we do not accept Return, but we will grantee that it can work well. During warranty, we can change you spare parts for free (Except for consumable parts)



C For Machine,Warranty is one year,during warranty,if the spare parts was sent back for repair, buyer pays for the returning shipping cost and fees, we responsible for the 2nd shipping cost and handling charges.(Except for consumable parts)
