CNC Router Engraver Industrial engraving machine 3040 Milling Machine Sliding core Diameter 20*20*16mm

Model Number: industrial cnc

Condition: New

CNC or Not: CNC

Machine Dimensions: 590X560X540mm

Rack material: 6061 Hard aluminum alloy

Acceptable material thickness: max 150mm

Sliding core: XYZ: Diameter 20*20*16mm

CNC Router Engraver Industrial engraving machine 3040 Milling Machine

Mini NEMA23 57 Stepper Motor Base Bracket Mount for DIY CNC LatheUSD 6.21

Wood router cnc lathe machine 4030 1.5kw USB port InterfaceUSD 1880.00-2360.00

5pcs Light Pipes 300mm 1/4 Round Nozzle Water Cooling Flexible With Plastic MayitrUSD 10.70

DIY CNC Router Engraver machine LY Mini with 200W spindle motorUSD 659.00

DIY CNC Kit 0.8KW 1.5KW CNC Spindle Motor + ER11 1.5kw 2.2KW Inverter VFD for CNC Router Milling MachineUSD 340.00-380.00

1500W USB 3 Axes 4 Axis CNC Router 6040 Woodworking PCB Milling Drilling Machine with MACH3 Remote ControllerUSD 2100.00-2600.00

2200W 3 Axes 4 Axis Mini CNC Router 8060 USB Limit Switch CNC Metal Milling Cutting Machine with MACH3 Remote ControllerUSD 3150.00-3630.00

Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

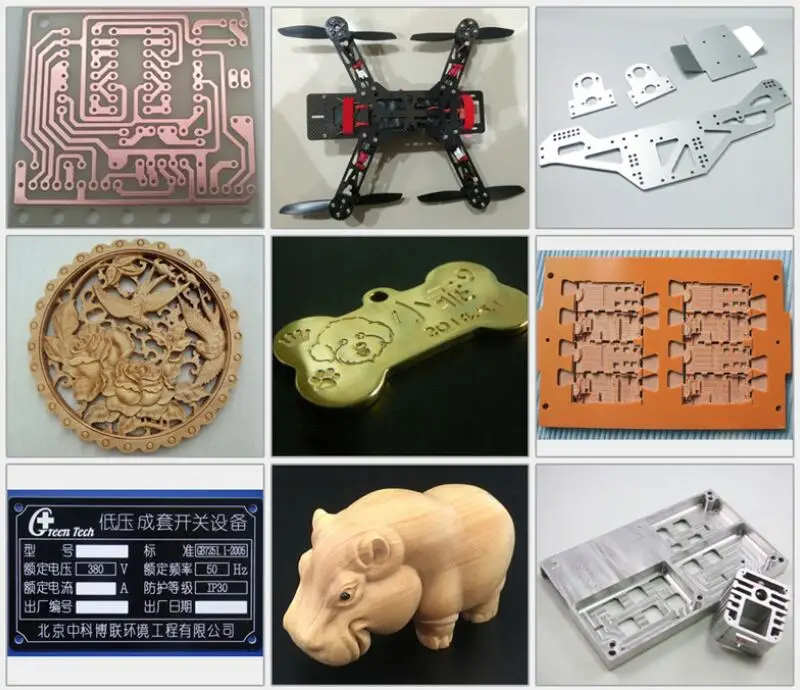

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.



Model and Technical Parameters

MODEL	CNC 3040 router
Attribute	1.5KW 3axis	1.5KW 4axis	2.2KW 3axis	2.2KW 4axis
Axis	3axis	4axis	3axis	4axis
Limit switch	Yes	Yes	Yes	Yes

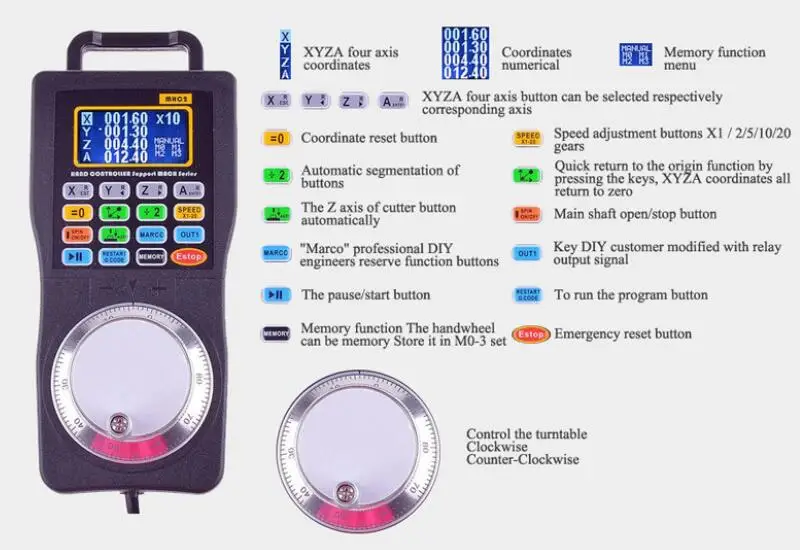

With hand wheel	Yes	Yes	Yes	Yes
Spindle motor	1.5KW	1.5KW	2.2KW	2.2KW
Weigh	65	75	68	78
Machine Dimensions	590X560X540mm

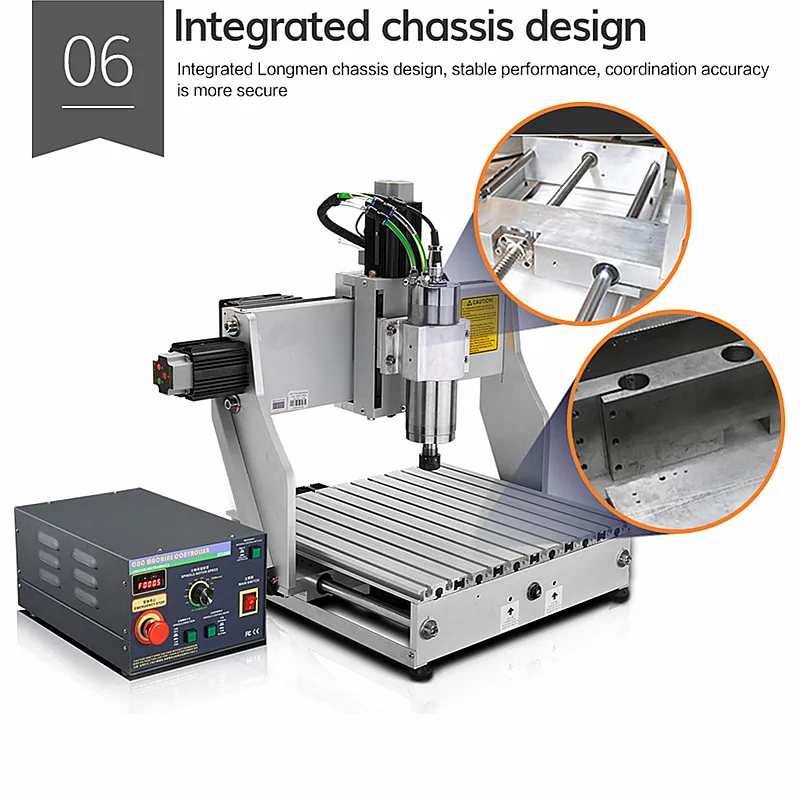

Rack material	6061 Hard aluminum alloy
Engraving area	XYZ: 400X300X100mm
Acceptable material thickness	≤ 150mm

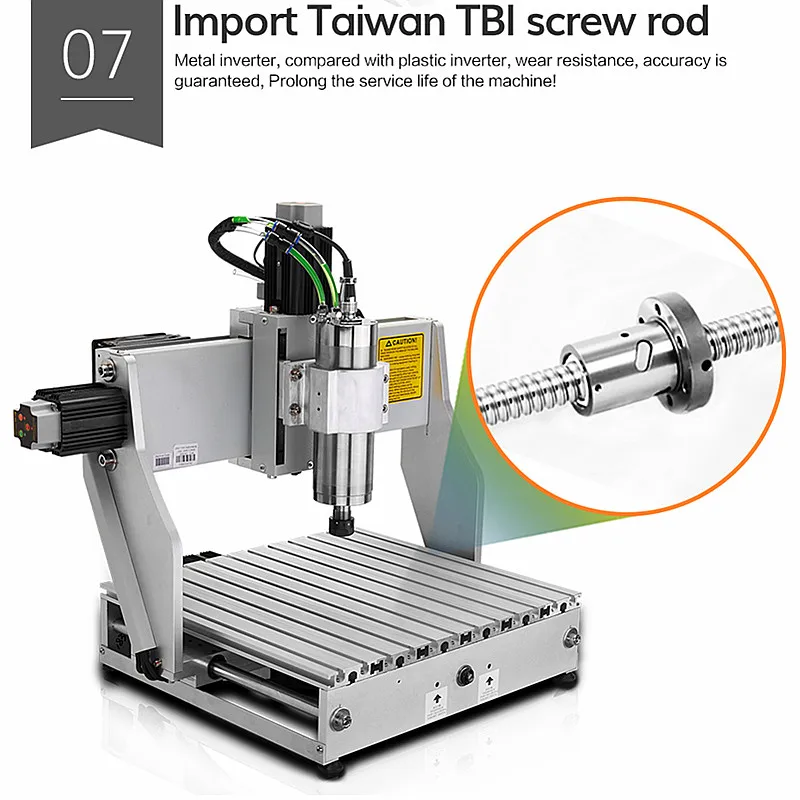

Driving core	XYZ: TBI 1605 ball screws
Sliding core	XYZ: Diameter 20*20*16mm

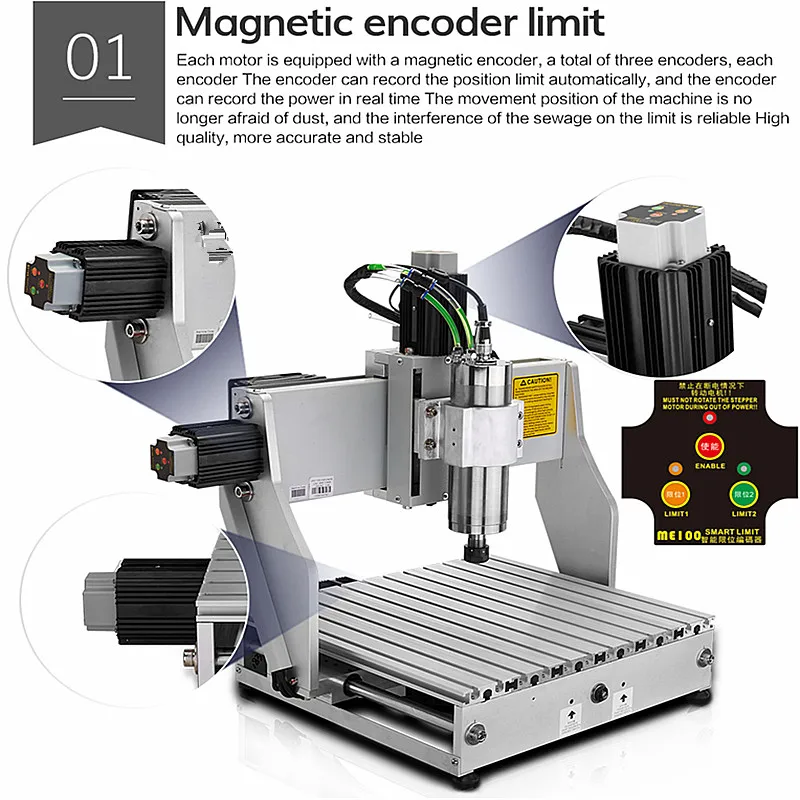

Limit switch	XYZ: each 2 Photoelectric limit switch

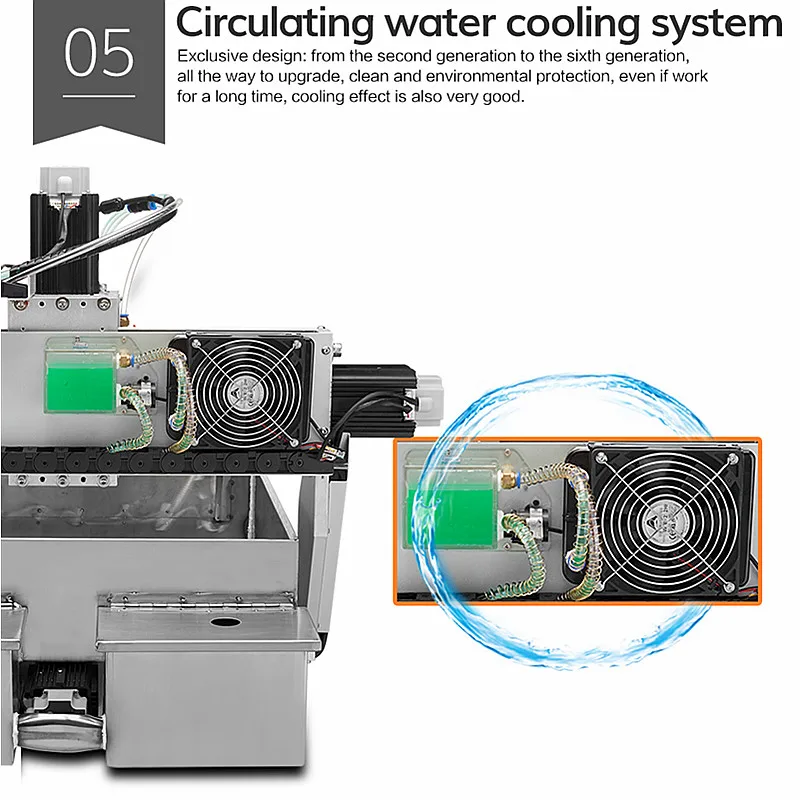

Spindle motor	VFD water-cooled spindle , 0-24000r/min
Collet type	1.5KW-ER11,2.2KW-ER20 (3.175mm) Collet

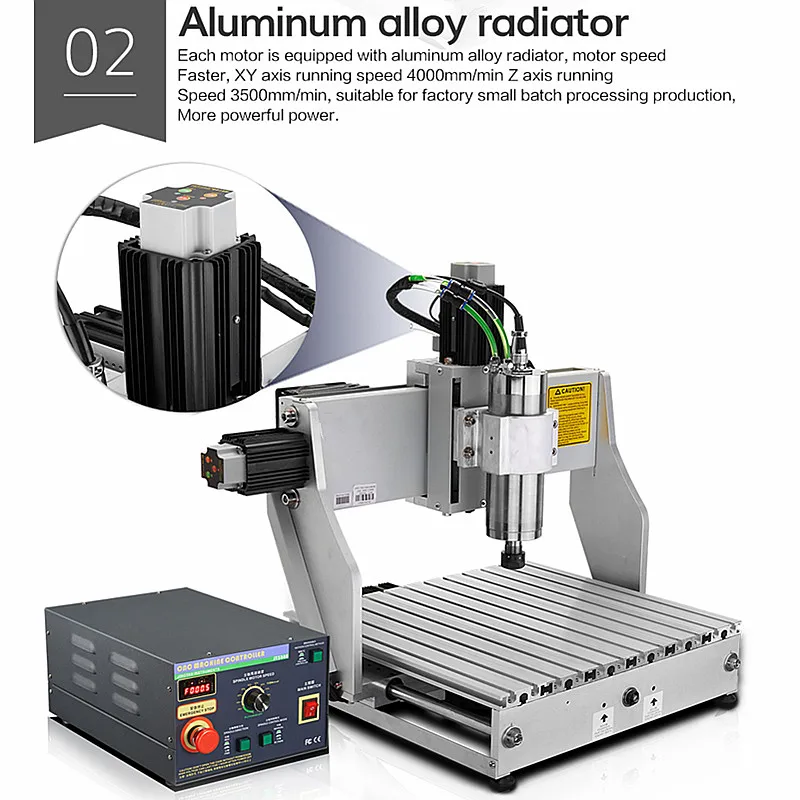

Stepper motor and drive	two-phase hybrid stepping motor 57 3A 1.8 Degree
Maximum operating speed	4000mm/min (Engraving speed: 300-3000mm/min)
Positioning Accuracy	0.05mm
Repeatability precision	0.01-0.02mm

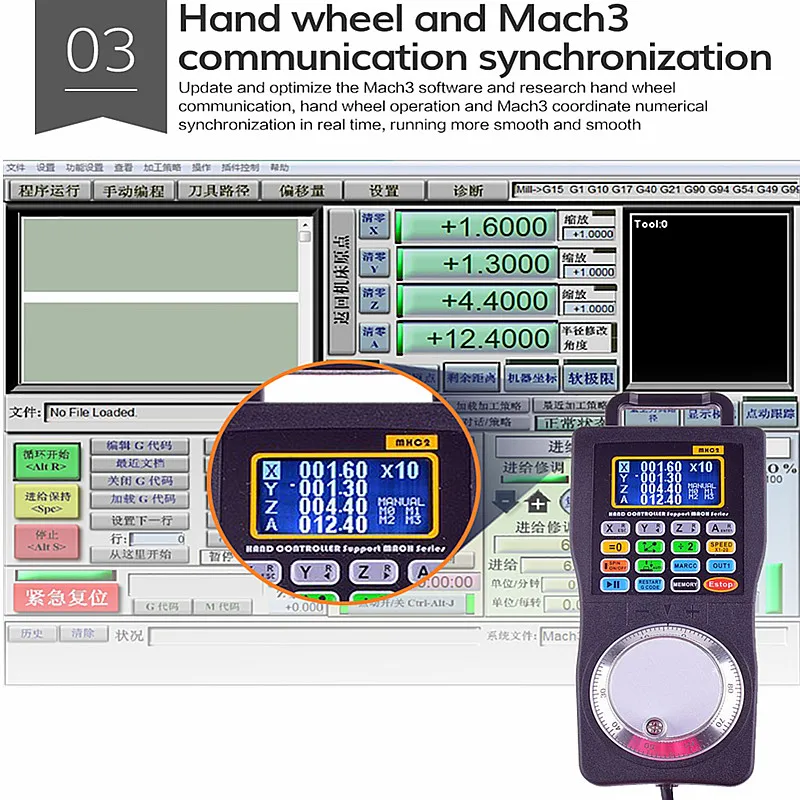

Communication interface	Parallel Port (mach3 control)
System requirements	Win-XP or win-7 8 10(32) operating system

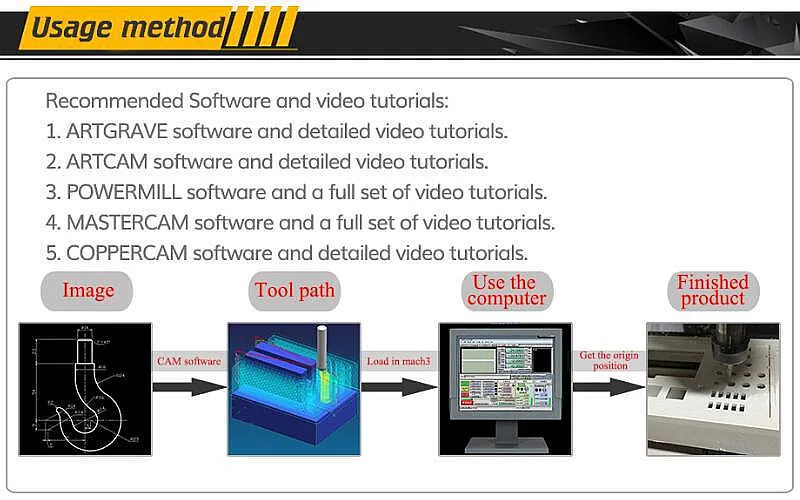

Software Compatability	Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)
Command code	G code/.nc/.ncc/.tab/.txt

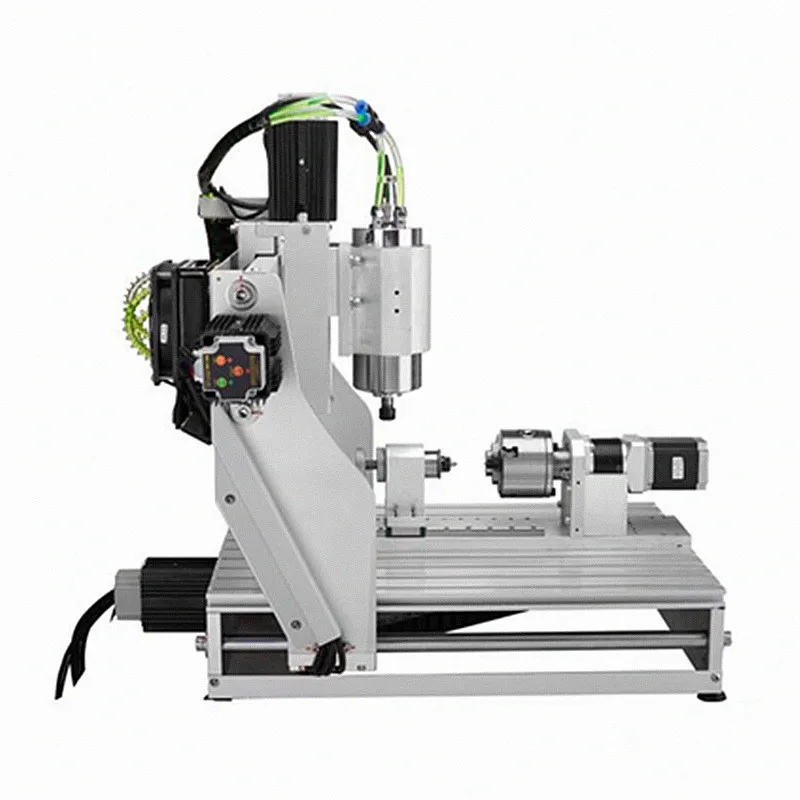

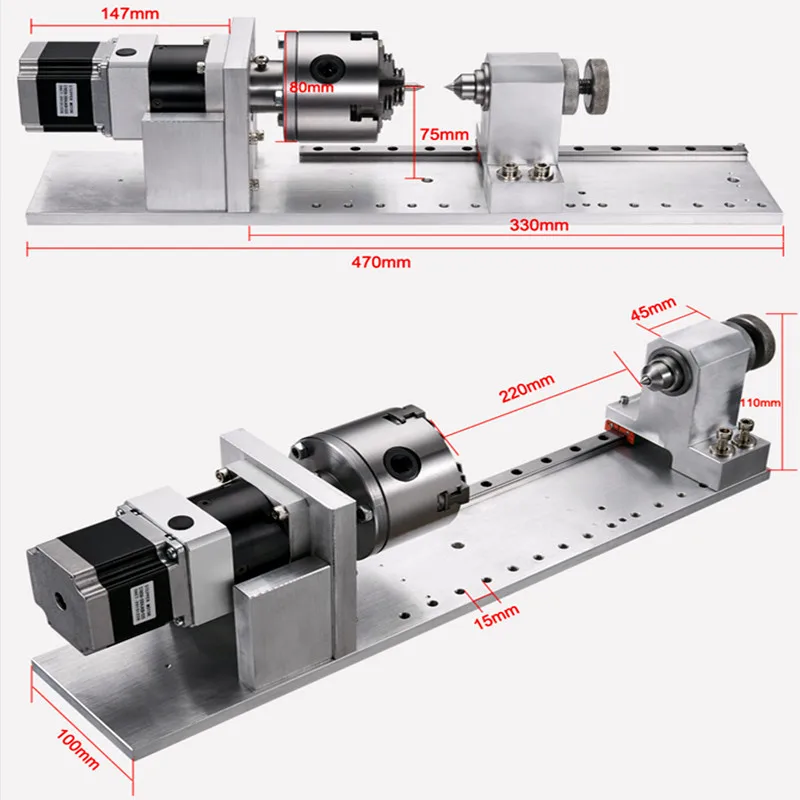

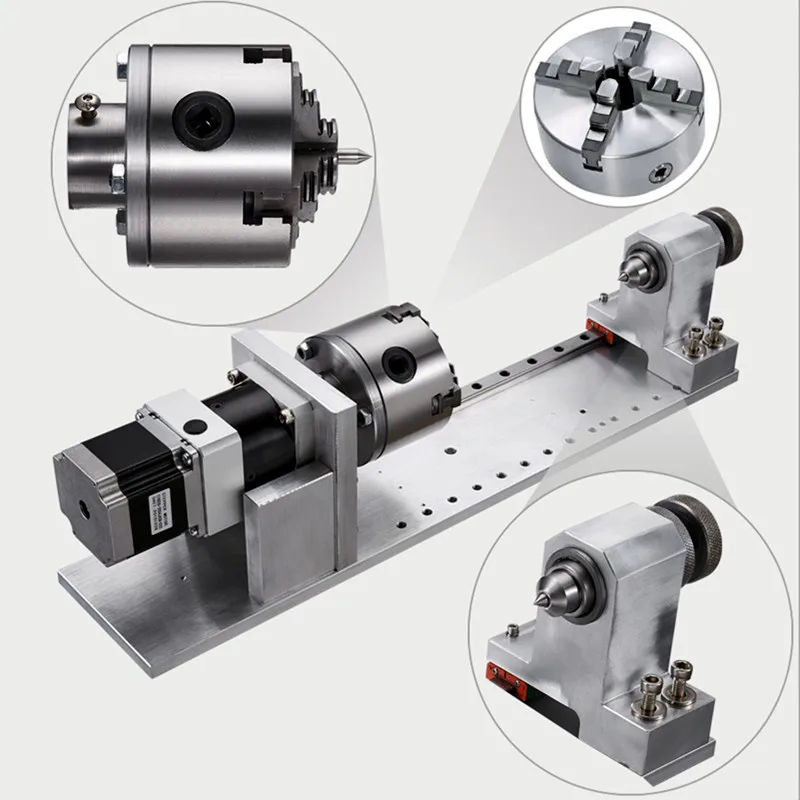

Rotation Axis (4th Axis) Description	Center height: H = 65mm Maximum turning diameter: ≤ 120mm Deceleration ratio: 6:1 Stepper motor: 57-3A-1.8 Weight: 7.5KG



NOTE:

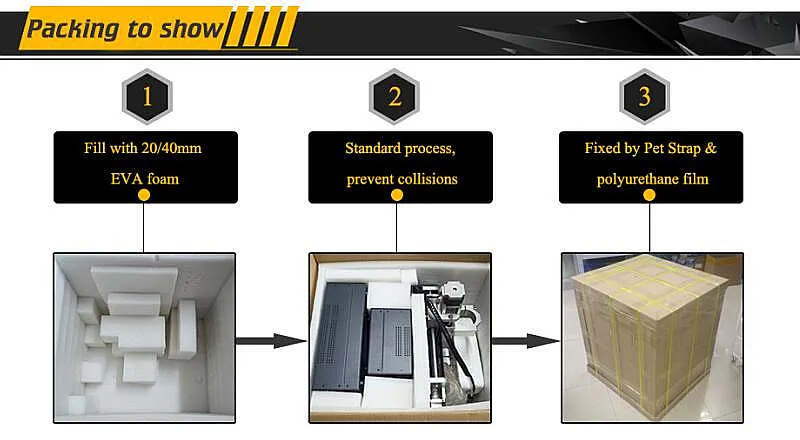

Because the liquid can\'t send by air, So we will empty the liquid before shipment
Please add coolant before using machine (we do not provide the coolant)
