Industrial use linear guideway Router Engraver 1500W CNC 3040L Parallel Port 3Axis Metal Engraving Milling Machine

Condition: New

CNC or Not: CNC

Model Number: cnc router 3040

Voltage: 220V

Spindle motor: 1500W / 80mm / Water cooling

Maximum operating frequency: 400HZ

Radial runout: 0.01mm

Collet type: ER11,1/8"(3.175mm) Collet

Track type: Square line rail track

linear guideway Router Engraver 1500W CNC 3040L Parallel Port 3Axis Metal Engraving Milling Machine

Mini NEMA23 57 Stepper Motor Base Bracket Mount for DIY CNC LatheUSD 6.21

Wood router cnc lathe machine 4030 1.5kw USB port InterfaceUSD 1880.00-2360.00

5pcs Light Pipes 300mm 1/4 Round Nozzle Water Cooling Flexible With Plastic MayitrUSD 10.70

DIY CNC Router Engraver machine LY Mini with 200W spindle motorUSD 659.00

DIY CNC Kit 0.8KW 1.5KW CNC Spindle Motor + ER11 1.5kw 2.2KW Inverter VFD for CNC Router Milling MachineUSD 340.00-380.00

1500W USB 3 Axes 4 Axis CNC Router 6040 Woodworking PCB Milling Drilling Machine with MACH3 Remote ControllerUSD 2100.00-2600.00

2200W 3 Axes 4 Axis Mini CNC Router 8060 USB Limit Switch CNC Metal Milling Cutting Machine with MACH3 Remote ControllerUSD 3150.00-3630.00

Introduction The CNC 3040 Easily produce name badges, equipment tags, small signs, plaques and awards, gift items, pet tags,ID tags, electrical tags, military name tags, desk plates, or mark industrial parts. Whether you are a startup business, or a model enthusiasts, or looking to add a machine to supplement the capacity of an existing operation, the CNC 3040 is a great fit. We look forward, CNC 3040F will become your good helper In addition, it can be upgraded to be installed a rotational axis.   More Precise Stepping Motor The engraving process is visible as controlled by computer Simple operation and installation 1 year machine part and 6 months electrical parts、stepping motor、spindle Free Warranty





Technical Parameters

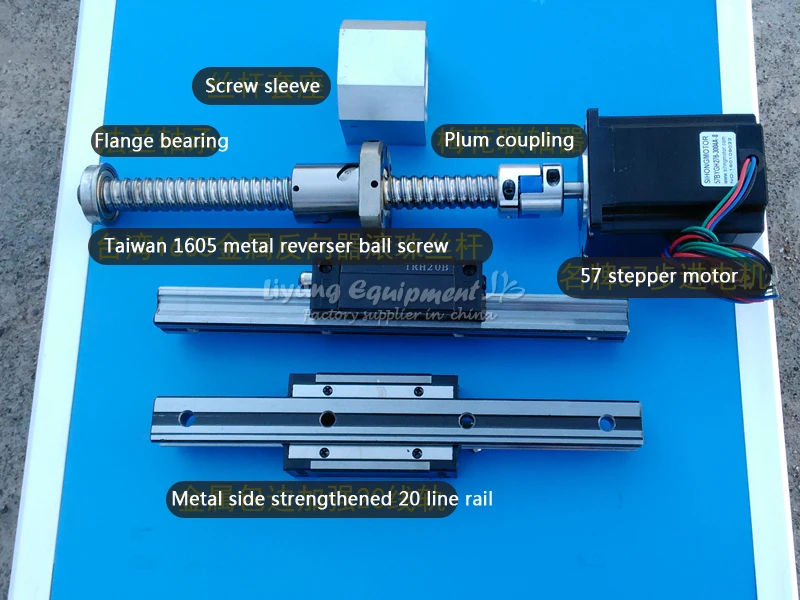

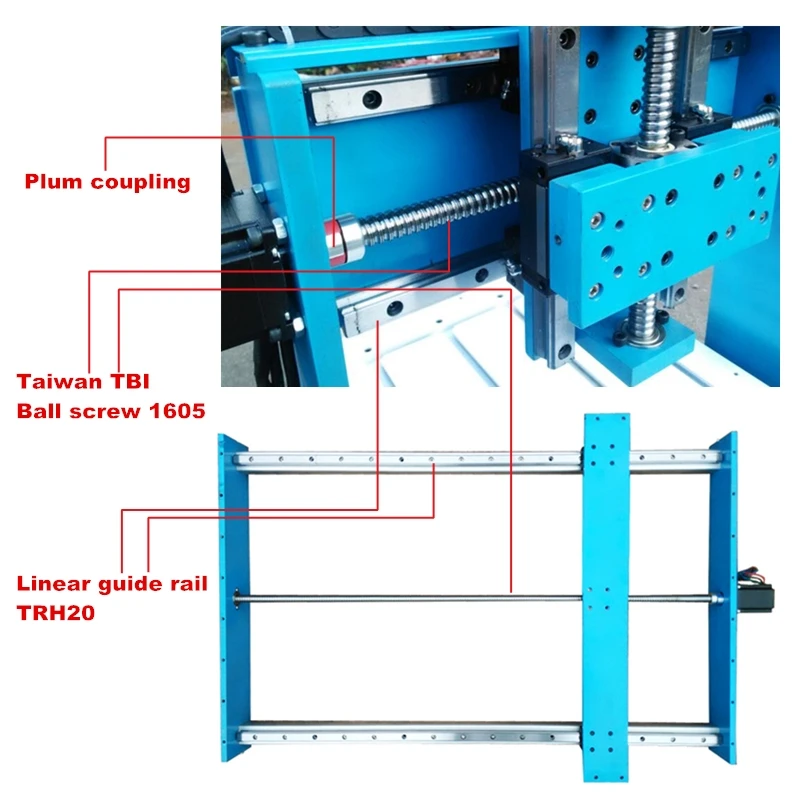

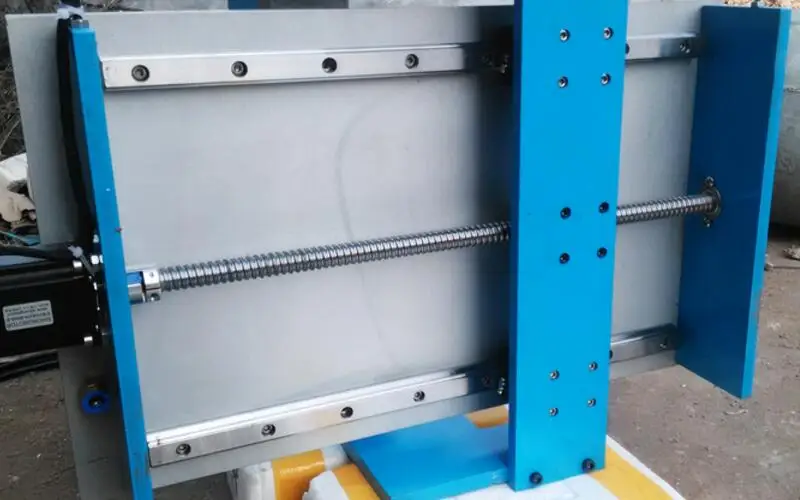

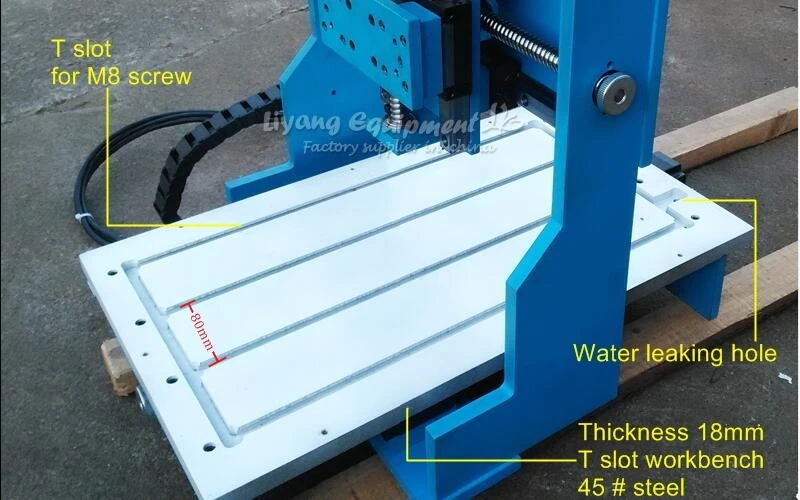

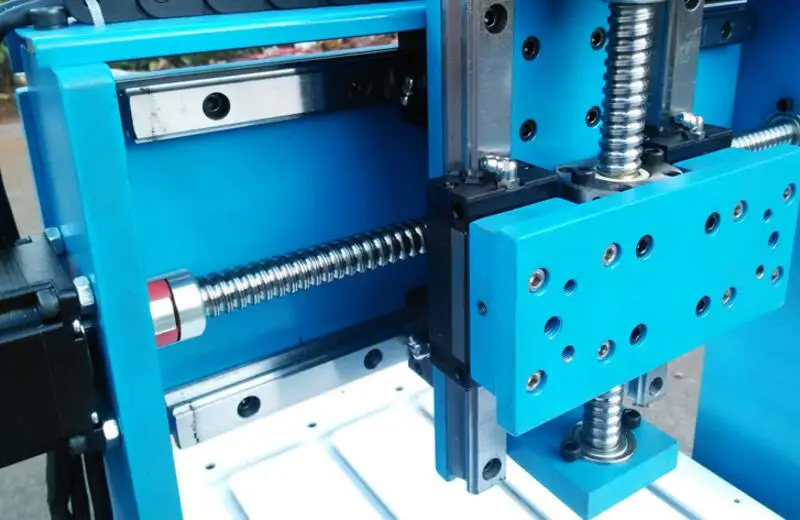

CNC 3040L parallel 3axis engraving machine part parameters: Voltage   220V Spindle motor   1500W / 80mm / Water cooling Maximum operating frequency   400HZ Radial runout   0.01mm Collet type 　ER11,1/8"(3.175mm) Collet Track type   Square line rail track（linear guideway） three-axis is 20 mm square wire track, high precision, high strength, top configuration. Table   18 mm t-slot table, 45th steel six-sided flat grinding, one table, water holes, the water cycle, t-slot for M8 screws, t-slot width of 80 mm. Work table size   330*540mm Working stroke   260*380*120mm Type of screw   Ball screw 1605 Weight   95KG Package size   550*660*600mm Stepper motor and drive 　two-phase hybrid stepping motor ,1.8A/PHASE,40N.cm, 8 segments drive. Maximum operating speed 　4000mm/min (Engraving speed :　300-3000mm/min) Communication interface 　Parallel port Software Compatability 　Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam) Command code 　G code/ nc/.ncc/.tab/.txt Can add the 4th axis   The information as below:   Rotation Axis (4th axis) specs: (For optional , not included in 3axis Machine !) For three-jaw Chuck, fourth axis and thimbles, precision worm gear reducer 20:1 rotation, adding to the three shafts used on machines, Chuck type model 80, the biggest blessing to 63 mm diameter, maximum turning diameter 140 mm, 57 stepper motor with worm gearbox, torque, suitable for machining hard products, is high-rotation axis. Round three-dimension carving a maximum diameter of 14 cm, model 3040, 28 cm in length, 4060 model 50 cm, 6090 model 80 cm

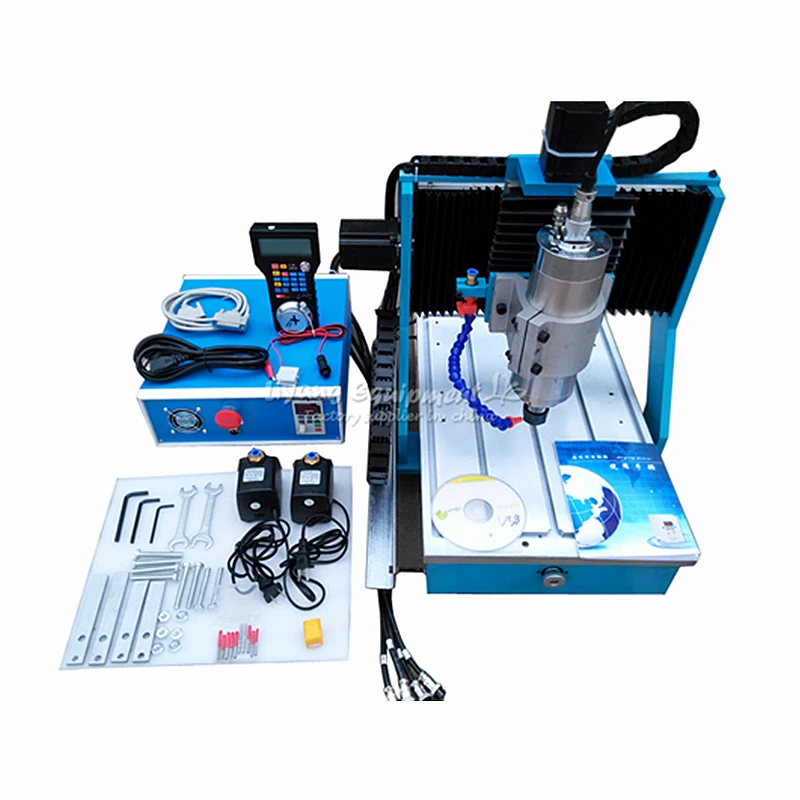

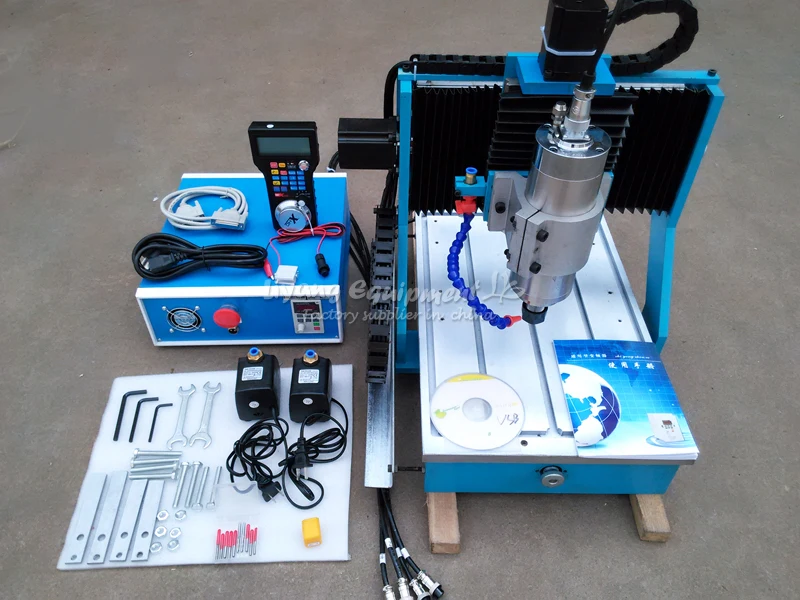

Packing list:

1× CNC 3040 engraving machine

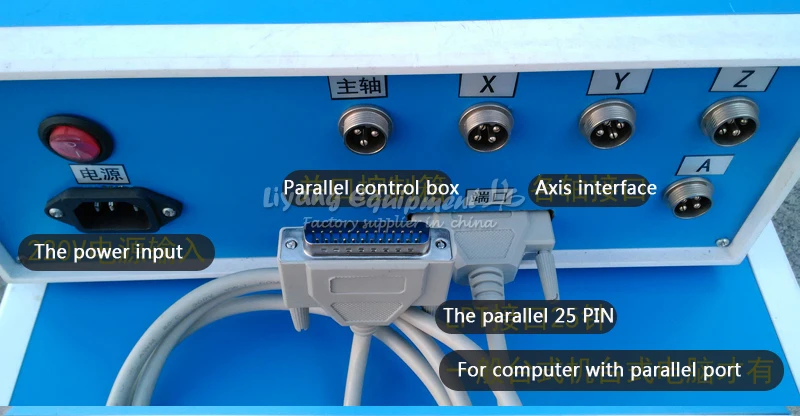

1× Control box

1× Parallel port cable 25pin

1× Power cable

1× Tool box and tools

3× Axis motors

2× Water pump

1× Mach3 handwheel

1× CD of manual and software MACH3

Shipment



After payment is done and passed aliexpress checking, shipping will be made within 7 work days.



Custom Duty

A  Seller’s shipping method  means send machine to local seaport by sea , terms is CFR. please make sure can clear customs .

Import duties,taxes and your local fees are not included in the price or shipping charge .These charges are the buyer\'s responsibity.Pls make sure you can clear customs before order if can not clear customs before the deadline, your Customs will distroy the goods, and you have to bear all cost caused by the Customs clearance dealy. If want to send by courier like DHL, UPS, Fedex or EMS, pls provide us with your city name, post code, so we can check if arrive, if remote areas and how much they cost.



B  Please check with your country\'s customs office to determine what these additional costs will be before you order.



Note



A  Pls check all goods carefully before you sign to accept the package and report to us within one week if there are any parts loss or machine problems. Pls show related photos and videos.



B Due to machine is special product, big size, if shipping back, shipping cost and import tax will be very high, so we do not accept Return, but we will grantee that it can work well. During warranty, we can change you spare parts for free (Except for consumable parts)



C For Machine,Warranty is one year,during warranty,if the spare parts was sent back for repair, buyer pays for the returning shipping cost and fees, we responsible for the 2nd shipping cost and handling charges.(Except for consumable parts)
