MORN Ruida CNC CO2 Laser Engraving Cutting Machine Acrylic Laser Cutter Machine MT L570 With Free
MORN Ruida CNC CO2 laser engraving cutting machine acrylic laser cutter machine MT-L570 with free CW3000 water chiller
MORN Ruida CNC CO2 laser engraving cutting machine acrylic laser cutter machine MT-L570 with free CW3000 water chiller
1. FDA,CE Certification, ISO9001 Quality Certification.
2. Smooth and Precise Engraving and Cutting.
3. Output from RDworks directly,also supports CorelDraw and Auto CAD .
4. Optimization of mechanical and electrical design.
5. More friendly control panel with Color Screen.
6. English, French, German, Italian, Spanish and more languages updating.

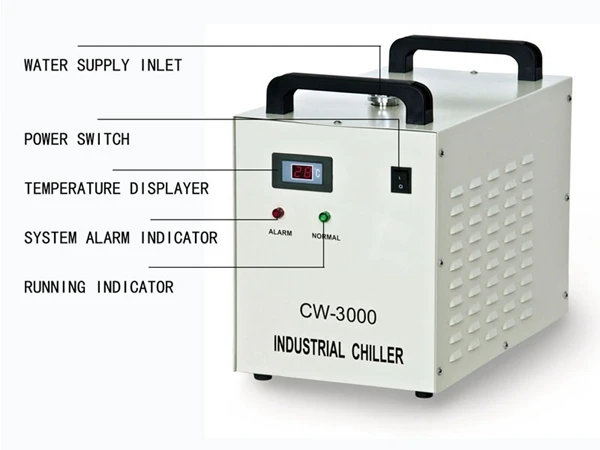

7. Free CW3000 water chiller
| NO. | Model | MT-L570 |
| 1 | Laser medium | CO2 gas |
| 2 | Working area | 700*500mm |
| 3 | Working table | Aluminum table |
| 4 | Laser power | 60W /80W EFR |
| 5 | Power Supply | 220V/50Hz, 110V/60Hz |
| 6 | Min line width | ≤0.15mm |
| 7 | Positon accuracy | 0.01mm |
| 8 | Repetition accuracy | 0.02mm |
| 9 | Cutting speed | 150mm/s |
| 10 | Guide rail | Hiwin from Taiwan |
| 11 | Transmission method | Belt Transmission |
| 12 | Drive system | Leadshine driving system and stepper motor |
| 13 | Cooling system | CW3000 water chiller water-cooling |
| 14 | Control system | Redcam control system |
| 15 | Control software | Coreldraw, Photoshop, AutoCAD, etc |
| 16 | Graphic format support | PLT, DXF, BMP, JPG ,AI ,ect |
| 17 | Working environment | 0-45℃, |
| 18 | Operating Humidity | 5-95% |
| 19 | Net weight | 300kg |
| 20 | Gross weight | 200kg |
1. Honeycomb working table and vertical work table
2. 60W/80W EFR laser tube
3. USB cable ( connect laser machine and computer)
4. Software support CorelDraw, AutoCAD and photoshop
5. Free CW3000 water chiller
Q. Can the machine engraving and cutting?
A. Yes, even on the same Job, you can do setting with different colour in the software and also can making holes.
Q. is the machine must work with computer?
A. Must connect with computer with USB cable when you change the settings of machine. for the design files, you can transfer the file with USB memory stick to the machine, Or can download it to the machine directly with USB cable from computer.
Q. How long the laser tube is working well?
A. It is about 6000+ hours. It’s lifetime depend on your materials operation, using frequency and maintenance.
Q. Do you avaliable spare parts?
A. we can provide all of spare parts of any model we listing.
Q. I have heard the mirrors need cleaning?
A. Yes they do but not after every job, once a week is normally enough
Q. How about the after sell service?
A. Free tech support for the whole life of the machine, and 24 hours telephone support. WhatsApp or Skype, Wechat, online when you need.
