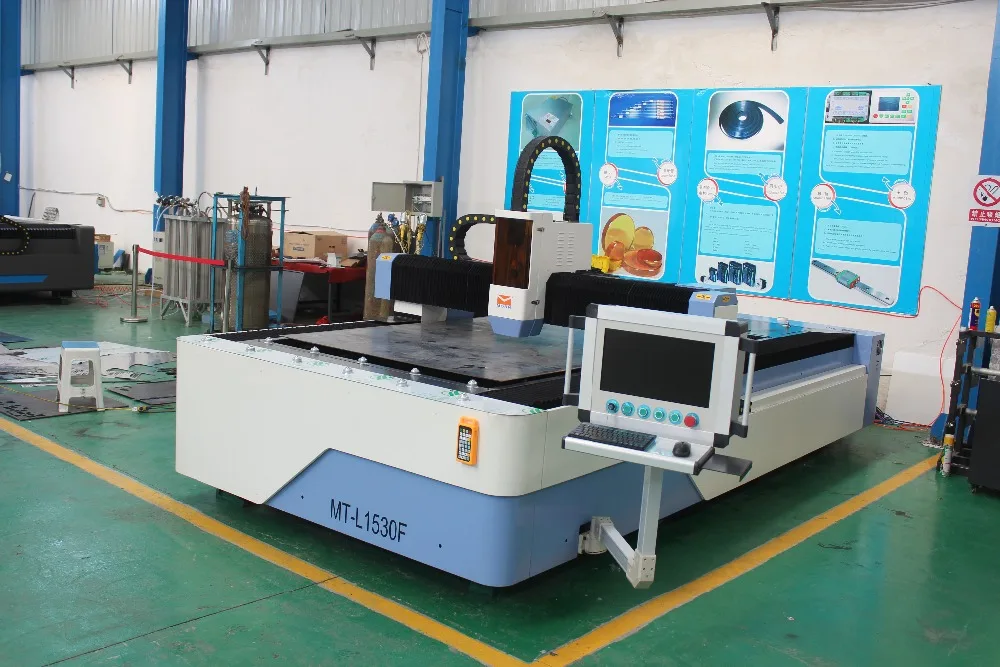

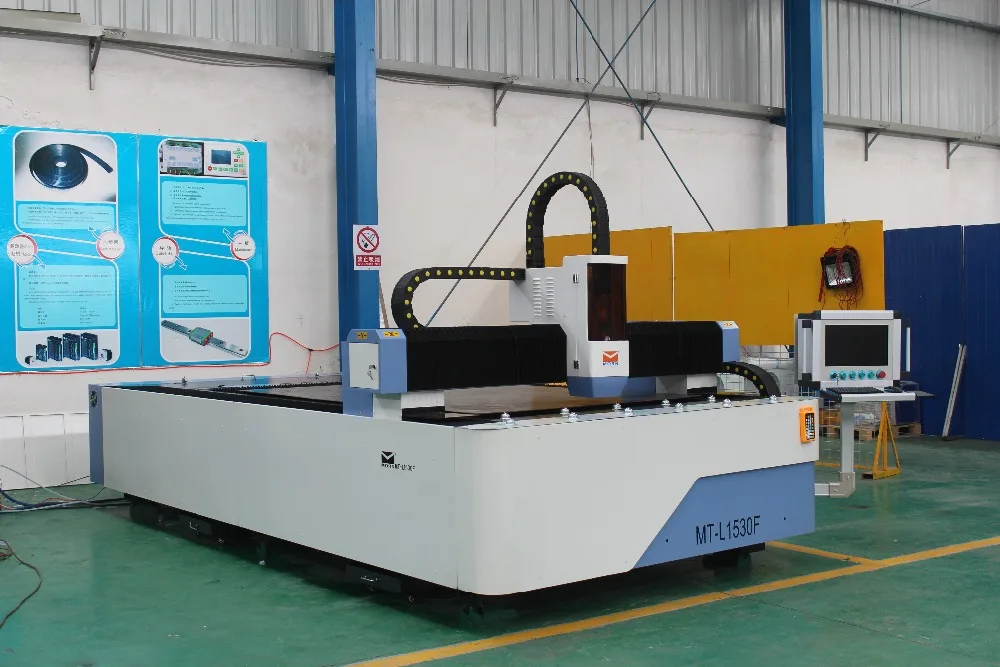

Big Power MT L1325F MT L1530F 1000W 2000W 3000W Fiber Cnc Metal Laser Cutter Price 1000W
Big power MT-L1325F, MT-L1530F 1000W 2000W 3000W fiber cnc metal laser cutter price, 1000W fiber laser cutting machine
Big power 1325 1000W 2000W 3000W fiber cnc metal laser cutter price, 1000W fiber laser cutting machine
NOTES: This price is FOB price. Please contact us to confirm the shipping cost before order.
1. Designed with stylish appearance, beautiful modeling and easy operation features.
2. Wide range of application: stainless steel, carbon steel, galvanized steel, iron panel, copper panel, aluminum, gold, silver, etc.
3. The machine lathe has been polished and milled for hundreds of times to reach higher precision; the machine weighs more than 4000KG, strong and never deformed.
4. Major components of the machine all come from world’s famous brands, such as Germany IPG, China Raycus, Japan Fuji, Taiwan PMI, CrpCut, etc.
5. Suitable for mass production, saving money, time and materials.
6. High cutting speed and perfect cutting edge with smooth plane and exquisite texture.
7. Japanese servo motors guarantee the cutting precision.
8. Professional and easy-to-use CYPONE/CYPCUT fiber cutting control system has full functions.
9. The DSP hand controller simplified the machine’s operation.
10. Every MORN fiber laser cutting machine is armed with convenient feeding device, reducing your workloads.
11. With Raycus fiber laser being adopted, MORN promises the machine can work for 100,000 hours.
12. The warranty of whole machine lasts for 3 years with fewer materials consuming and zero
| Model | MT-L1325F |
| Working area | 1300*2500mm |
| Laser Type | Raycus (IPG / Nlight) Fiber laser source is optional |
| Laser Power | 300W (500W / 750W / 1KW / 2KW is optional) |
| Cutting Thickness | 0-10mm(depend on materials and laser source power) |
| Cutting Speed | 0-60m/min |
| Laser Wavelength | 1064nm |
| Positioning Accuracy | ≤ ±0.025mm/m |
| Re-positioning Accuracy | ≤±0.02mm/m |
| Motor | Japan servo driver and motors |
| Guide rail | TAIWAN PMI square guide rail |
| Laser head | Domestic laser head(American laser head, switzerland laser head optional) |
| Max Cutting Speed | 80m/min(depending on material and thickness) |
| Power Supply Rated Voltage | 3-phase 380V+/-10% 50Hz or 3-phase 220V+/-10% 60HZ |
| X-axis Stroke | 1300mm |
| Y-axis Stroke | 2500mm |
| Working Table | sawtooth worktable |
| Water Cooling System | Constant temperature water chiller |
1. High Quality Laser Source:
Low Energy Consumption, save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 machine. The laser source lifetime is more than 100,000 hours and almost free maintenance for life.
2. Quality Laser Cutting head
Machine with auto focus height follower means if the metal sheet have little wavy surfaces,the focus height follower can ensure constant distance between the focal lens and plate to ensure the cutting accuracy. This laser head is good sealed, high pressure resistant, auto-tracking system and anti-crash and stop system can protect good cutting quality and longer the life of lens.
3. Control system:
Industrial PC control with offline function. Easy operation and automatic programming. Including UPS function to protect your computer. When suddenly power off, you will have some time to save your files in the computer.
4. Japan Servo Driver and motor system:
Adopt the Japan servo driver and motors. Ensures the possibility of realizing extreme precise positioning with the excellent dynamic response acceleration property and closed loop control method, and that makes moving positioning mechanism operate smoothly, reliably and free of maintenance.
5. Constant Temperature Cooling System:
The temperature of the refrigeration unit in digital chart shows, while water temperature more than a specified temperature, it will automatically refrigeration; while water temperature below a specified temperature it will automatically stop.
6. Automatic AC voltage regulator (Optional part):
Mainly to prevent the role of interference outside the power grid, and the power supply to adapt to emotional power, capacitive, resistive load, long-term continuous work, to withstand transient overload (rated current 2-3 times). Assist the metal cutting machine working more stability, and ensure the machine nice working performance.
Sheet metal processing, Die-cutting, Electronic, Electrical appliance, Aviation, Mechanical, Elevator, Cars, Steamer, Cutting tool, Subway accessories, Petroleum machinery, Food machinery, Craft gits, Tools processing, Decoration, Advertisement, Metal external processing and other manufactures.
1. 3 year for whole machine, 2 year for laser generator
2. Lifelong technical support online or by email
3. 18 hours online service to help you use our machine well
4. Offer oversea service for training,installing,operating if necessary
5. Offer training at our factory for free(you could visit us and learn)
6. CE and FDA certificate, the machines are produced according to standard.
Before Delivery:.
Check and test machine at least 10 times to make sure all right.
18-year manufacturing experience on laser machine equipment; 3-year warranty; 7*24h professional after sales online service; Overseas warehouse available in the US and the UK; Technical engineers available for overseas service.
1) May we know the speed of your Fiber Laser Cutting Machine as per on our demand basis?
We use Japan Servo motor and driver with big strength, so the max moving speed can reach 100m/min, max cutting speed can reach 40m/min. And the speed can reach 1.5-2m/min if you cut 4.5-5mm stainless steel.
2) About accuracy, we have observed that after some time "Machine accuracy can increase gradually" and after long time, the difference reach to its maximum level. How about your machine?
The frame of the machine is annealed, it can support shock resistance(the machine will deform if without annealing ). So the accuracy of the machine can keep its original accuracy for 4-5years. The weight of the machine can reach 4.5t-5.0t. It also can let the machine have higher accuracy and higher stability.
3) Scan Cutting Option is available? (Means short distance cutting without lifting head?)
Yes, this machine can short distance cutting without lifting head. It can save about 2s-3s.
Air cooling: for controlling the temperature of driver, laser generator, electrical components, etc .Water cooling: for controlling the temperature of laser generator and laser head.
1.If you choose seller shipping method, please email us your port name to double check if it can be reached and delivery time. Please reconfirm the shipment information: consignee/contact person, detailed address, telephone number.
For Russia and Ukraine, we can ship machine to your city by land transportation. Please contact us to confirm the shipping cost and customs tax.
2. When payment and shipping information are confirmed, shipping will be made within 7 working days.
3. It\'s CIF trade term (insurance included). The buyer should pay surcharge of port, including handling charges, custom clearance cost and import taxes. EXW and FOB terms are also acceptable. We ship goods by sea to your seaport (you need to find broker to help you clear customs).
4. On arriving at the destination port, the machine should be picked up soon. Or the buyer should pay the relevant demurrage charges.
5. If want other courier like DHL, TNT, UPS, FedEx or EMS, please also provide us with your city name and post code, so we can check the delivery detail and cost.
6. Please check all goods carefully and report to us within one week if there are any parts loss or machine problems (photo evidence needed). The machine is specially customized product with big size, so we do not accept return with pretty high return cost. But we are confident in our products quality. And lifetime tech support and free spare parts (Consumable parts not included) during warranty will be offered for each buyer.
7. If we are not on line, please leave us messages on Aliexpress about any questions on our product or your order, then we will reply you within 24 hours.
