Factory Price CNC Laser Machine Laser Cutter Laser Engraving Machine Acrylic Cutting Machine Foam Cutting Diy
Factory price CNC laser machine laser cutter /laser engraving machine/acrylic cutting machine foam cutting/ diy rubber stamp
Factory price CNC laser machine laser cutter /laser engraving machine/acrylic cutting machine foam cutting/ diy rubber stamp

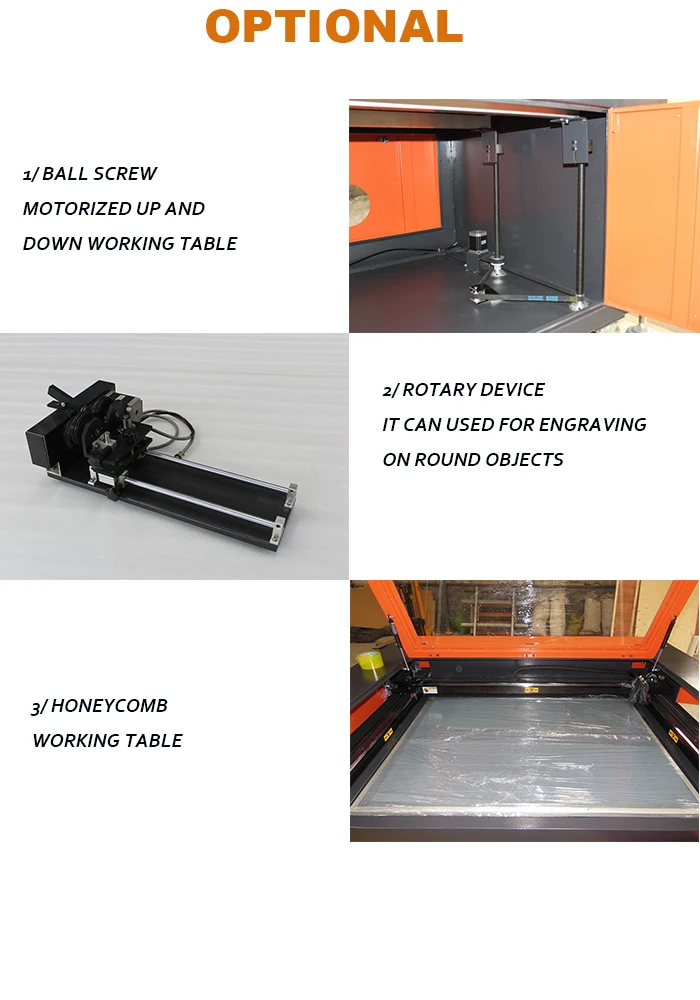

1/ Motorized up and down working table
2/ Rotary device
3/ auto-focus function
1. FDA,CE Certification, ISO9001 Quality Certification.
2. Smooth and Precise Engraving and Cutting.
3. Output from RDworks directly,also supports CorelDraw and Auto CAD .
4. Optimization of mechanical and electrical design.
5. More friendly control panel with Color Screen.
6. English, French, German, Italian, Spanish and more languages updating.
7. Separation of cutting up to 256 Colors.
8. One key to install, more convenient.
9. Use virtual array list and additional off-cut graph to realize the off-cut function.
10. Machines with feeding devices can realize the cyclical model of working-feeding-working.
11. USB Interface, U-Flash Disk Supported,Machine will read files from memory stick,you can work even without a PC.
12. Air Assist, Remove heat and combustible gases from the cutting surface and make the engraving and cutting projects a breeze.
13.Adopt advanced DSP digital control system, international standard laser power supply,integrated framework style
14.1 years free warranty (except consumable spare parts) and life time free maintenance service.
| Model | LV-L570 |
| Control system | Ruida 6442s |
| Offline work | Support |
| Laser power | 60W/80WEFR laser tube |
| Power supply | AC220±10% 50-60Hz/110V 60Hz |
| Working area | 700mm*500mm |
| Max moving speed | 1-1000mm/s |
| Locating precision | ≤0.001mm |
| Min shaping character | Character:2*2mm,letter:1*1mm |
| Resolution ratio | ≤4500dpi |
| Control configuration | RDworks, Coreldraw,AutoCAD,Photoshop |
| Data transfer interface | USB port / LAN |
| Working table | Blade working table |
| System environment | WINDOWS2000/WINDOWS XP/ WIN7/WIN8/WIN10 |
| Compatible software | CorelDraw, AutoCAD, Photoshop |
| Cutting thickness | 0-20mm(depends on different material) |
| Full machine size | 146*111*126CM |
| Cooling mode | CW-3000 water chiller |
| Supported graphic Format | BMP, JPG, PLT, DXF, AI |
| Max engraving speed | 0-1000 mm/s |
| Focus lens | 4 inch focus lens |
| Parts warranty | mirrors (3 months) tube(10 months) |
| Machine warranty | 12 months |
| Optional | Ball screw motorized up and down working table/Rotary device/ |
| Gross weight | 300kg |
Q. Can the machine engraving and cutting?
A. Yes, even on the same Job, you can do setting with different colour in the software and also can making holes.
Q. is the machine must work with computer?
A. Must connect with computer with USB cable when you change the settings of machine. for the design files, you can transfer the file with USB memory stick to the machine, Or can download it to the machine directly with USB cable from computer.
Q. How long the laser tube is working well?
A. Unfortunately we cannot confirm about this, it is about 6000+ hours.
Q. Do you avaliable spare parts?
A. we can provide all of spare parts of any model we listing.
Q. I have heard the mirrors need cleaning?
A. Yes they do but not after every job, once a week is normally enough
Q. Can I put larger materials in the machine?
A. Yes, the machine has doors which can be opened to accommodate larger materials
Q. How about the after sell service?
A. Free tech support for the whole life of the machine, and 24 hours telephone support. WhatsApp or Skype, Wechat, online when you need.
1.If you choose seller shipping method, please email us your port name to double check if it can be reached and delivery time. Please reconfirm the shipment information: consignee/contact person, detailed address, telephone number.
For Russia, we can ship machine to your city by land transportation. Please contact us to confirm the shipping cost and customs tax.
2. When payment and shipping information are confirmed, shipping will be made within 7 working days.
3. It\'s FOB Qingdao trade term. The buyer should pay shipping cost, surcharge of port, including handling charges, custom clearance cost and import taxes. EXW and CIF terms are also acceptable. We ship goods by sea to your seaport (you need to find broker to help you clear customs).
4. On arriving at the destination port, the machine should be picked up soon. Or the buyer should pay the relevant demurrage charges.
5. If want other courier like DHL, TNT, UPS, FedEx or EMS, please also provide us with your city name and post code, so we can check the delivery detail and cost.
6. Please check all goods carefully and report to us within one week if there are any parts loss or machine problems (photo evidence needed). The machine is specially customized product with big size, so we do not accept return with pretty high return cost. But we are confident in our products quality. And lifetime tech support and free spare parts (Consumable parts not included) during warranty will be offered for each buyer.
7. If we are not on line, please leave us messages on Aliexpress about any questions on our product or your order, then we will reply you within 24 hours.
Your feedback is really important to us, please take a few seconds to leave great feedback if you are satisfied withh our product or service, so many thanks!
If our goods or service does not satisfy you, or any questions, please contact us and give us a chance to improve before open a dispute or leaving any type of feedback.
