High Quality Pvc Mdf Kdt Plywood Cabinet Door Full Automatic Edge Bander Banding Machine For Woodworking
High quality pvc mdf kdt plywood cabinet door full automatic edge bander banding machine for woodworking furniture
This Item including full automatic edge banding machine and table panel saw machine
High quality pvc mdf kdt plywood cabinet door full automatic edge bander banding machine for woodworking furniture

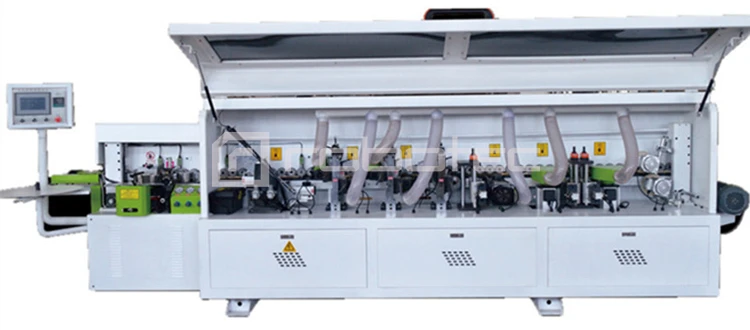

Full automatic edge banding machine features

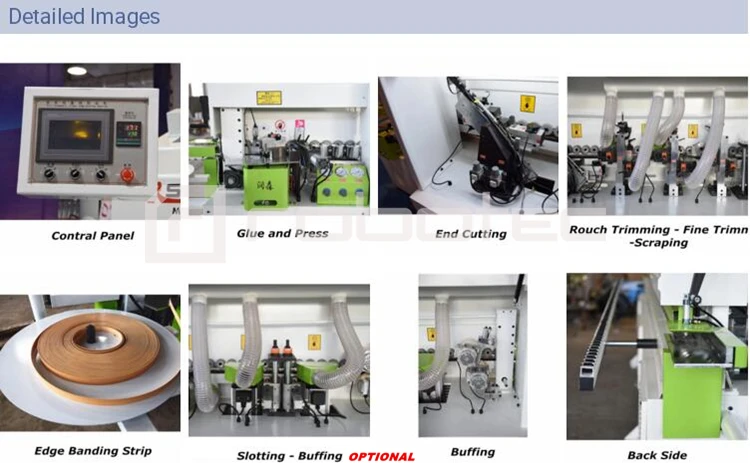

1. Gluing Press---End Cutting---Rouch Trimming---Fine Trimming---Scraping---Slotting(optional function)---Buffing
2. The machine is suitable for linear sealing side of plank artifacts of solid board,fiberboard,particleboard,
ect...Edge banding material artical available solid wood,PVC,melamin,thin veneer and so on.
3. Adopt imported motor and high quality electrical compents.
4. Product serialization.diversification of the customer to choose.
5.High precision and high efficiency.

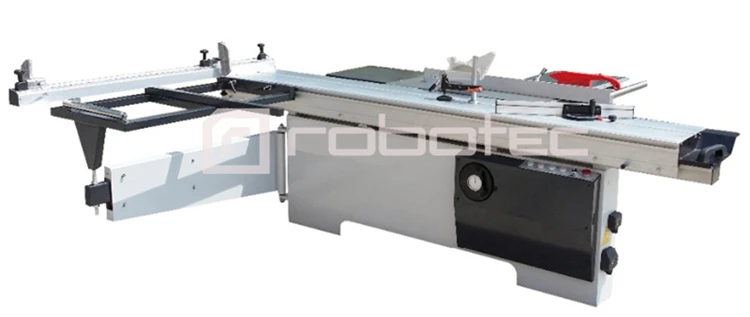

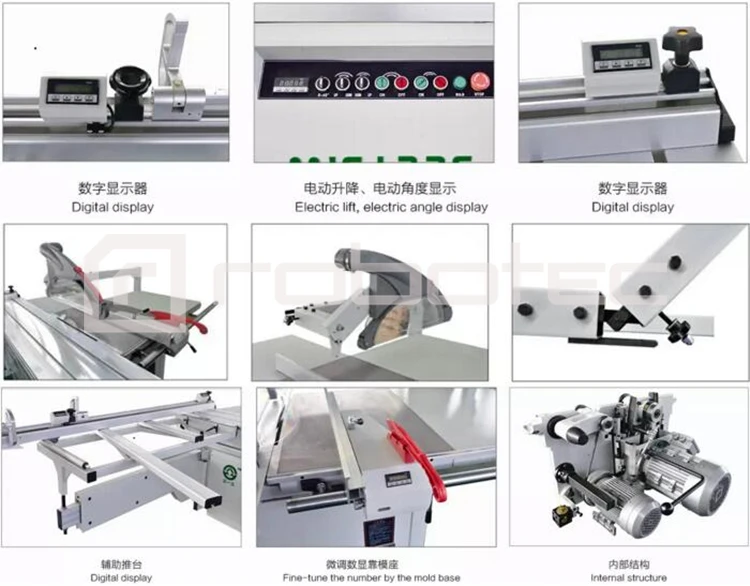

Sliding table panel saw features
45°angle saw blade
Saw blade tilt available,
Not only 90°sawing,but also 0° to 45°,that\'ll be better for cutting work
Machine Frame
Laster cutting frame
Plastic spray surface treatment
Internal structure and table
Qualified material,painting and anti-corrosion
Extendable measuring stick
Aluminum track,stability and non displacement
Guarantee the precision of cutting process
Motor and parts
High-strength parts,more longer working life
Pure copper wire motor 5.5+1.1KW
SKF bearing
| Dimensions Sliding Table | 3200x380mm |
| Maximum sawing length | 3200mm |
| Maximum sawing width | 1250mm |
| Saw Blade Diameter | 250-300mm |
| Maximum sawing thickness | 70mm |
| Spindle speed | 4000/6000rpm |
| Spindle diameter | 30mm |
| Tiling Saw Blade | 45° |
| Main Motor Power | 5.5kw |
| Scribing blade specifications | 120mm |
| Scribing blade speed | 8000r/min |
| Shaft diameter | 20mm |
| weight | 1.1kw |
| Scoring power | 860kg |
| Wooden boxed weight | 900kg |
| Dimensions | 3250×3450×900mm |
