Laser Marking Machine 50w Metal

Factory direct sale 20w laser marking machine for metal abs cheap price

Model Number: 20w fiber laser marking

Condition: New

CNC or Not: CNC

Technical
Machine Model
Laser Wavelength 1064nm
Maximum Laser Output Power20w 30w 50w, 75w, 100w
Marking Scope 70mm*70mm, 100m*100m, 200mm*200mm, 300mm*300mm
Marking Depth 0.02-1mm depending on material
Minimum Line Width 0.01mm
Minimum Characters 0.2mm
Linear Marking Speed ≤7000mm/s
Repeatability ±0.002mm
Total Power ≤1.5kw
Power Demand 220V±10%, 50Hz, 16A/24A/30A

Other 1 cabinet,optical benches,aluminium stents Domestic



Features
[ 1 ] Adopting imported diode pump module, galvanometer scanning system, Q-switch and Q driver, guarantee the high precision, high accuracy and long-term.

[ 2 ] Integrated design and adopt new optical seal mode to enhance the safety of diode pump and be more reliable.

[ 3 ] Excellent laser output mode, more stable.

[ 4 ] High-performance semiconductor lasers with better beam quality, better light pattern, optical power stability. Facula is small, fine with good marking effect, high marking speed and low power consumption, low processing cost.

[ 5 ] Marking powerful software with a graphical alignment set the parameters and the hierarchical position of the preview feature of red light. Marking can be a variety of bar code and graphic code, and have anti-play function

.[ 6 ] The use of major temperature water-cooling system, temperature controls accuracy.

[ 7 ] Using WINDOWS interface, compatible with CORELDRAW, AUTOCAD, PHOTOSHOP software output and other documents. Supporting PLT, AL, DXF, BMP and other documents, direct the use of SHX, TTF font to support the auto-coding, serial number, batch number, data, two-dimensional bar code and code marking.




Application
Application FieldWith extremely small focused spot size as small as +/-0.3mm, the machione can mark on a variety of metal and non-metal material, especially for the industrial grade high accuracy.

[ Auto Industry] Bearings, Steel sleeve, piston rings, engine tag, car panel buttons etc.

[ Electronic Industry ] Phone keypad, keyboard, electronic components, cable, etc.

[ Hardware tool Industry ] Measuring tools, sanitary ware, cutlery, locks, knives, scissors

[ Buckle sign Industry ] Buttons, luggage buckle, belt buckle, signs, badges, cards, photographs, belts, pens and pencil cases, trophies and various certificates, works of art, stamps, plaques, etc.

[ Wood Industry ] Wooden crafts, calligraphy copy and picture mounting, furniture decoration, etc.

[ Packaging Industry ] Tobacco, food, medicines, cosmetics and others.

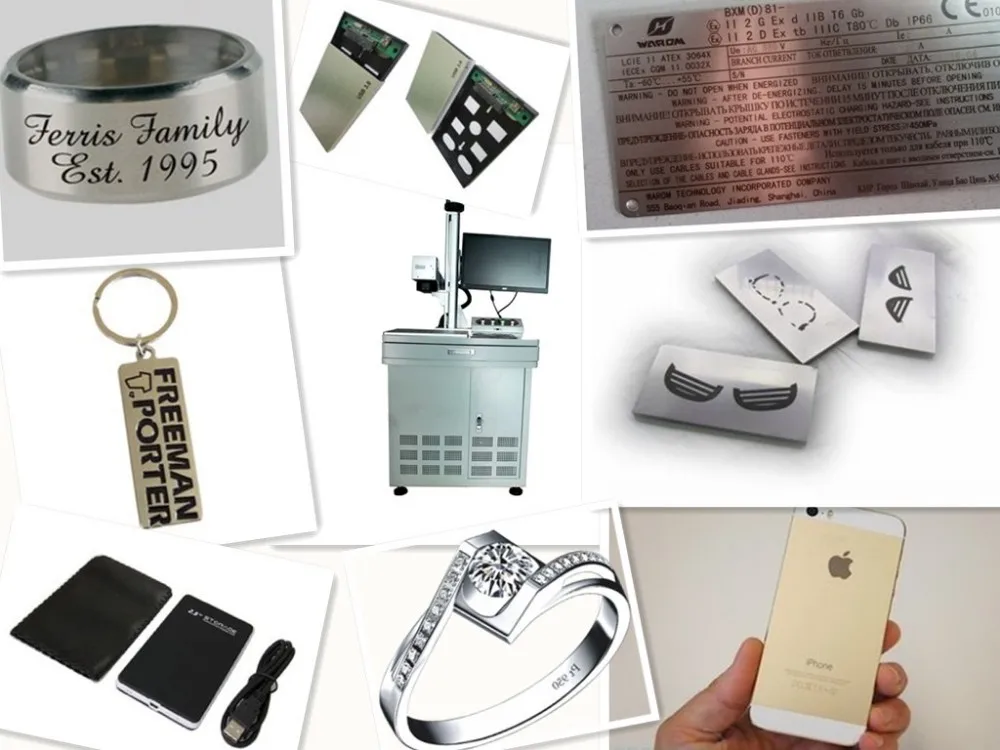

Sample Show
