CNC3040 Mach3 Control DIY 5axis CNC Machine With ER11 Pcb Pvc Wood Milling Router USB Port
CNC3040 mach3 control DIY 5axis CNC Machine with ER11 Pcb Pvc wood Milling router USB port
Mini cnc 3040 cnc router price3 axis 4axis 5axis 400w spindle cnc engraving machine
We provide the detail video for set up and other files.pls email me .
Warranty：
Russia Buyes FREE TAX!!!
More Precise Stepping Motor
Simple operation and installation
1 year machine part and 6 months electrical parts、stepping motor、spindle Free Warranty
Upgrade new version can match windows-XP, 7. 8. 10 system
CNC Engraver Suitable User ：
-Advertising&Design staff
-PCB Engineer
-Woodwork fans
-Model fans
-NOT Ready for Nowise(beginner)
ATTENTION:

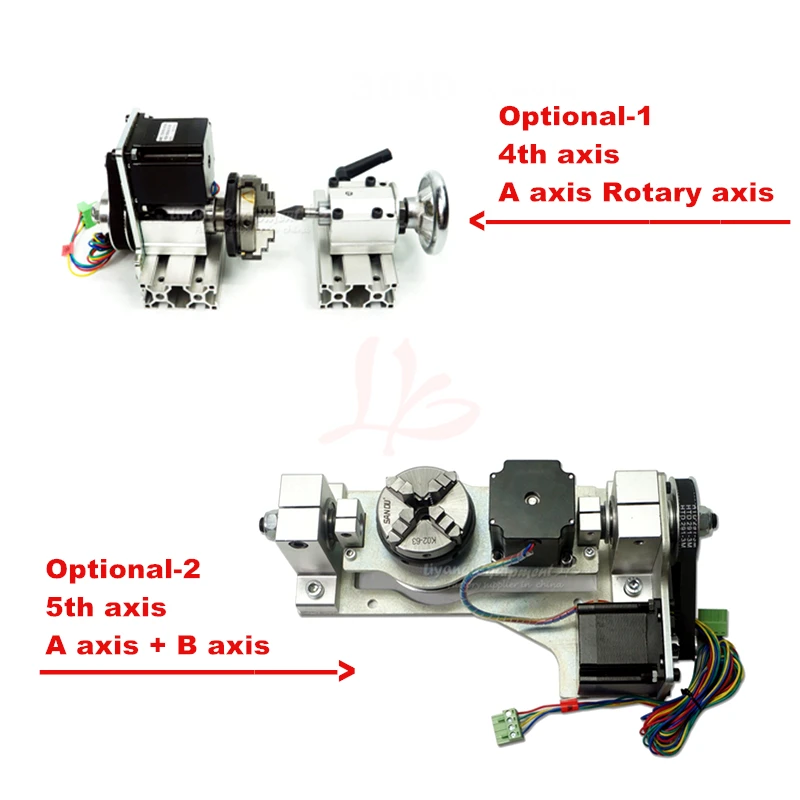

FOR THE PICTURE SHOW 5AXIS AND 4AXIS , JUST ship out according you bought Corresponding model , for example : if you bought 3040 5axis , you will got the 5axis , other model not have . if you bought 3040 4axis , you will got 4axis . other model not have .
the other accessories all include for these models machine .
Model and Technical Parameters
| MODEL | 3040 metal | |||
| Attribute | 3axis | 4axis | 5axis | Only frame |
| Axis | 3axis | 4axis | 5axis | 3axis |
| Interface | USB Port | USB Port | USB Port | No |
| Spindle Motor: | 400W | 400W | 400W | No |
| Weigh | 27 | 31 | 33 | 22 |
| Max. working stroke | XYZ=290*390*95mm | |||
| Acceptable material thickness | ≤120mm | |||
| Rail type | X Y 1605 ball screw, Z 1204 ball screw, 12 mm optical axis | |||
| Spindle motor | 400W DC spindle , 0-12000r/min | |||
| Collet type | ER11,1/8"(3.175mm) Collet | |||
| Stepper motor and drive | 57HS56 | |||
| Repeat positioning Accuracy | 0.02mm | |||
| Communication interface | USB Port | |||
| System requirements | Win-XP / Win 7 Win 8 Win10 | |||
| Software Co patability | Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) | |||
| Command code | G code/.nc/.ncc/.tab/.txt | |||

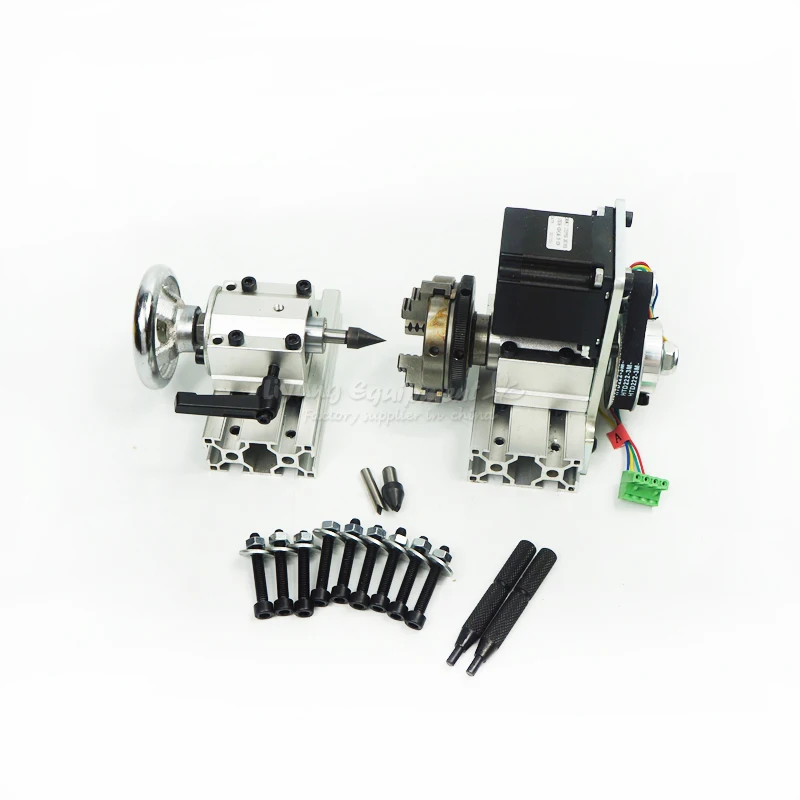

| 4th Axis Description: | Center height: H = 51mm Maximum turning diameter: ≤ 81mm Deceleration ratio: 4:1 Stepper motor: 57HS56 | |||
| 5th Axis Description: | The fourth axis gear ratio: 4: 1 (57 two phase 3A stepper motor 1.2N) The fifth axis reduction ratio: 5: 1 (57 two phase 3A stepper motor 1.2N) Four jaw chuck 60MM The clamping: Positive direction:40mm; In the opposite direction:70mm Fourth axis Center height: 55MM The fifth axis higher than the 4th axis 44 mm Bottom fixed hole distance: 150mm x 85mm | |||
2.please write your detailed delivery address ,contact information and phone number on payment,it is very important to deliver package successfully Delivery NOTE: we have free tax logistic channel to Russia and Ukraine for our company products. But pls attention below 1.The Russia customer don’t need pay the custom tax when you got the product . must write the full name(the first name , middel name, last name). 2.The Ukraine customer don\'t need pay the custom tax if you choose ship out by seller\'s shipping method. 3.If ship out to other countries, the customers need pay the custom tax, if you need low declare , we can declare 30% value for your order . Feedback Contact us with western Europe and 8 hours time difference with U.S.A.Therefore,we promise will try best to reply within 24 hours. For bulk order,also please contact us for details.
1.Please make payment by Secure payment in advance.
your positive feedback is highly appreciated.We guarantee the quality of our products. Each item will be checked carefully before delivery. Please contact us immediately if there is any reason you feel.We will always do our best to make the customer satisfaction.
We will reply to your enquiries as immediately as possible.However,please note that we have 12-16 hours time difference
