CW5000 Industry Water Chiller Water Cooler Cooling Circulating Water Tank Laser Cutting Machine Water Tank
CW5000 Industry water chiller water cooler, cooling circulating water tank laser cutting machine water tank
well reinforced weighty I even loved the shop, congratulations I think I will purchase more serves perfectly from the grinder this creates higher stability of the tool. Congratulations to China, let's take as an example, more Brazil perform and less corruption.
Very fast delivery, to Slovakia in just being unfaithful days. My new report! Discs not tested nevertheless, but everything looks adequately. Superb seller.
After getting checked, very satisfied, often the cut is clean. Nevertheless it is necessary to fix the workpiece. Sawing with this disc is extremely similar to the work of a skinny electric planer.
disc outline matches. Everything fits flawlessly. Functional disk.
Delivery is fast enough, well made, quality is good.

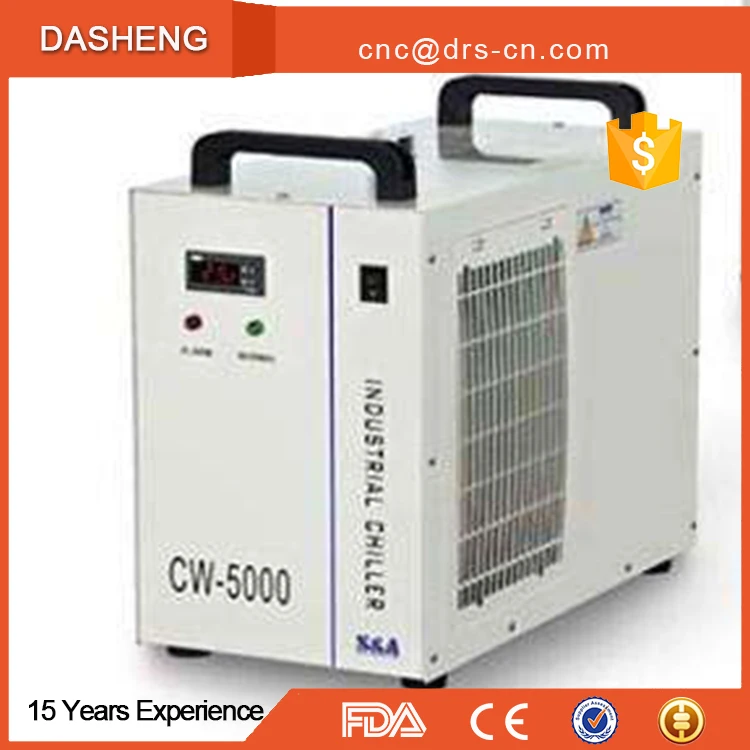

CW-5000 is refrigeration type industrial water chiller of 800W cooling capacity. It’s mainly used to have the heat generated during the laser device working that gone through the refrigerating cycle in compressor refrigeration system and eventually transferred to the air. The water temperature is able to be adjusted. There is 1 water outlet and an inlet, applicable to cool single laser glass tube.
S&A industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. With that 1 key solution, customers no longer need to worry about the water temperature adjustment of seasonal changes.
Features
1. 800W cooling capacity; use environmental refrigerant;
2. Compact size, long working life and simple operation;
3. ±0.3 Celcius Degree precisely temperature control;
4. The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;

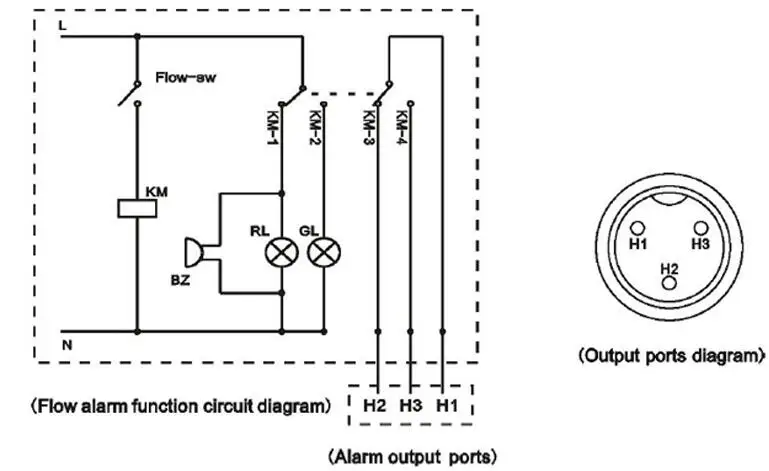

5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
6. Multiple power specifications; CE approval;RoHS approval;
7. Optional heater and water filter.
Installation Notes
The installation of the chiller is very simple and the new machine can be used for the first time according to the following steps.
1. Open the package and check whether the machine is in good condition and whether the accessories are complete.
2. Unscrew the machine water inlet and add cooling water.
When adding water, observe the water level of the water level gauge at the same time and slowly add water. Be careful not to let the water overflow! For carbon steel
The amount of anticorrosive agent should be added when cooling the material equipment. The use of cold areas in the north should be added
Note non-corrosive antifreeze.
3. Connect the outlet pipe and inlet pipe according to the equipment.
4. Plug in the power cord and turn on the power switch. (No water start!)
(1) After the power switch is turned on, the chiller circulation pump starts working. When the new machine is switched on for the first time
There will be more bubbles that cause the machine to occasionally flow alarms and return to normal after a few minutes of operation.
(2) After starting the machine for the first time, it is necessary to check the water pipe line for leaks.
(3) After the power is turned on, if the water temperature is lower than the set temperature, the fan and other devices of the machine are not working properly.
Like. The thermostat automatically controls the compressor, battery valve, fan and other devices according to the set control parameters
The working state.
(4) Since the compressor and other devices have a long start-up process, it can vary from tens of seconds to several depending on the operating conditions.
It does not wait for minutes, so do not switch on and off frequently.
5, check the tank water level.
After the new machine is turned on, the air in the water pipe is drained, and the water level of the water tank will drop slightly. In order to maintain the water level,
In the green area, water can be added again in an appropriate amount. Observe and note the current water level and wait for the chiller to operate
After a period of time, observe the water level gauge again. If the water level drops significantly, check the water pipe line again.
Leakage situation.
6, adjust the thermostat parameters.
The intelligent thermostat used in CW-5000/5200 series chiller does not need adjusting control under normal circumstances
Parameters, if indeed necessary.
The company has passed ISO9001 International Standard Organization
Products has got European CE and American FDA certificate
Shandong Dasheng machinery Equipment Co., Ltd is a professional manufacturer of industrial laser&CNC equipment in famous water city-Liaocheng,China.
Since 2000, Dasheng machinery focused on the development and production of various types of laser engraving/cutting/
fiber laser marking/fiber laser cutting machine/CNC router and accessories.we have more than 200 specialized production technical personnel and 20 R&D personnel.with the advanced management,strong research strength and steady globalization strategy, Dasheng machinery establish more perfect product sales and service system in China and around the world, make the world’s brand in laser industry.Our products have been exported to more than 70 countries and regions,such as Europe,America,Africa,the Middle East Southeast Asia and other regions.
Our company adheres to the principal “Quality First, Reputation First”. The main accessories of our machine are from top quality brands,like LEADSHINE driver,Taiwan HIWIN guide rail, RECI laser tube and so on.Quality and reputation is the cooperation basis.so we always strict test 72 hours for machine to ensure the quality and stability of the machine, we use the most advanced production and testing equipment, including CO2 lasers meter, scanning mirror, AC variable voltage power emulator stable, focus system and state-of-the-art equipment to check the quality and performance of our industrial laser equipment in each production step to ensure our laser machine and CNC equipment quality and stable performance.
Furthermore,we pay much attention to after-sales service. Good service and good quality is same important for user.Dasheng machinery will follow the spirit “Credibility and Integrity”, try best to provide customer more super product and better service.
Dasheng machinery--reliable professional Laser& Fiber &CNC equipment supplier!
welcome to cooperate with us and achieve win-win!
