High Accuracy Tool settle Gauge Wireless CNC Router machine Tool Setting Gauge Height Controller DT02

Fast delivery, reliable packaging. Cuts goblet is fine, but you need skill.
Arrived quickly The container succeeded from the first time. The planning could be more stable, but everything works. Super
I must buy a couple of nuts to be able to utilize the cutter. besides that everything is ok
very fast shipping and item is really as described. impressive seller. highly recommended
The product was well crammed and the seller was valuable. However , there is no elaborated video clip nor I could figure out to remove a bottle from the bottom. I possess asked the seller for a videos or any alternative assistance which will benefit other buyers for you to associate with this wonderful seller. Would be reporting all perspective consumers on sellers response on my request for a user demo to remove a bottle from bottom level in my additional feedback. A bit issue would be to adjust the actual cutter too. I obtained the product within 30 days of my order, which is extensive.

Model Number: DT02

Wireless distance: 20m

Application: Used for CNC Router

CNC Router Tool Setting Auto-Check Instrument CNC Tool Sensor BlockUSD 28.00

CNC Router Engraving Machine Tools Setting Auto-Check Z axis Instrument Zero setting sensorUSD 3.20

High Accuracy Tool settle Gauge Wireless CNC Router machine Tool Setting Gauge Height Controller DT02USD 54.90

CNC Router Tool Setting Auto-Check Instrument Tool Setting Gauge CNC Machine AccessoriesUSD 63.00-65.00



1pcs  CNC Tool Setting Gauge DT02 with Receiver



1pcs  English Manual

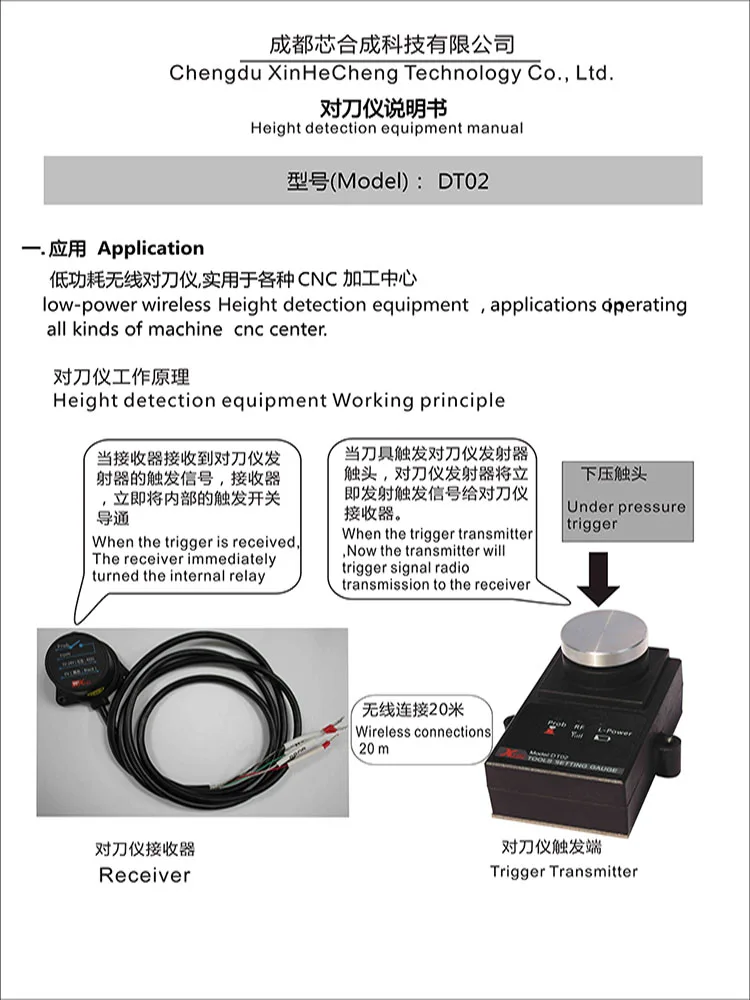

• DT02 CNC tool setting height gauge is universal, can work with many CNC systems, such as Ncstudio, Mach2 Mach3,UcStudio,
•          HNC, Siemens, Mitsubishi, Fanuc, LNC, SYNTEC etc.
• low-power wireless tool setting gaguge, applications operating in all kinds of machine cnc center.
• K2 is the electric relay output normal open switch,which will be closed when the probe signal is triggered.
• Power on the receiver.please make sure that the input power is 5v-36v DC. The work led flash to indicate power on ok.
• Install the two AAA batteries to the terminal device. Open the the battery door->install the 2 AAA.(Attention to The battery positive
•          and negative direction )->close the battery door





Electrical specifications

Receiver

• Work voltage:5v~36 DC
• Current consumption: type 20ma
• Wireless distance:20 meter
• The relay normal open contacts output: support maximum 250V/50ma load.
• Tool setting gauge
• Work voltage:2 AAA
• batteries,2.4V~3.6V DC
• Current consumption: type 20uA.To work continuously more than 6 months
• Wireless distance:20 meter   Probe precision: 0.01mm



Low power warning:please exchange the batteries when low power led light.
