Multipurpose woodworking machine , woodworking automatic tool changer cnc router 1325 for panel furniture

Brand Name: ACCTEK

Model Number: AKM1325C

Condition: New

CNC or Not: CNC

Power(W): 9.0kw Chinese air cooling ATC spindle

driver Inverter: Delta inverter

Dimension(L*W*H): 3670*2270*2080mm

Warranty: 1.5 years for the whole machine

Control system: Taiwan Syntec control system

software: Artcam(type3,artcut)

Voltage: 220V/380V,50/60HZ

After-sales Service Provided: Engineers available to service machinery overseas

Transmission: Gear rack transmission and ball screw transmission

Other ATC cnc router machines for sale:

1300*2500mm vacuum pump 3D ATC router cnc machine for wooden furniture makingUSD 10200.00

Jinan AccTek 1325 vertical horizontal ATC spindle Wood CNC Router 1325,Atc Wood Carving CNC machine priceUSD 21200.00

Auto tool change cnc engraving machine 1530/4ft*8ft wood craving cnc router/ ATC cnc milling machine Air Cooling SpindleUSD 14000.00

9.0kw Chinese air cooling ATC spindle AccTek automatic tool changer cnc router 1325 priceUSD 17400.00

1212 ATC homemade wood cnc router with CE, CIQ, certificationUSD 7550.00

SYNTEC controller linear type atc cnc router 2030, servo motor cnc router machine fro wooden bed workUSD 15500.00

Heavy duty steel frame 5*16ft linear type ATC cnc router wood cutting machine priceUSD 21950.00





Multipurpose woodworking machine , woodworking automatic tool changer cnc router 1325 for panel furniture





Parameters of automatic tool changer cnc router 1325

NO Description  Parameter 1 X,Y,Z,B Working Area 1300x2500x250mm 2 Table Size 2150×3420mm 3 X,Y,Z Traveling Positioning Accuracy ±0.01/300mm 4 X,Y,Z Repositioning Accuracy: ±0.03mm/300mm 5 Table Surface Vacuum working table with 5.5kw water vacuum pump 6 Frame Heavy duty Steel Tube Structure 7 X, Y Structure Rack and Pinion Drive,Hiwin Rail Linear Bearings 8 Z Structure Hiwin Rail Linear Bearings and Ball Screw 9 Max. Power Consumption (Without Spindle) 8.5Kw 10 Max. Rapid Travel Rate 80000mm/min 11 Max. Working Speed 50000mm/min 12 Spindle Power 9kw Changsheng (China) air cooling spindle 13 Spindle Speed 0-24000RPM 14 Drive Motors servo motor 15 Working Voltage AC380V/50/60Hz,3PH (Option: 220V)) 16 Command Language G Code 17 Operating System Taiwan Syntec Control System 18 Computer Interface USB / Ethernet 19 Flash Memory 512M 20 Collet ER32 21 X,Y Resolution <0.03mm 22 Software Compatibility Type3/UcancameV9 software (Option: Artcam software) 23 Running Environment Temperature 0 - 45 Centigrade 24 Relative Humidity 30% - 75% 25 Packing Size 3670*2270*2080mm 26 N.W. 1500KG 27 G.W. 1600KG





Brief description of automatic tool changer cnc router 1325

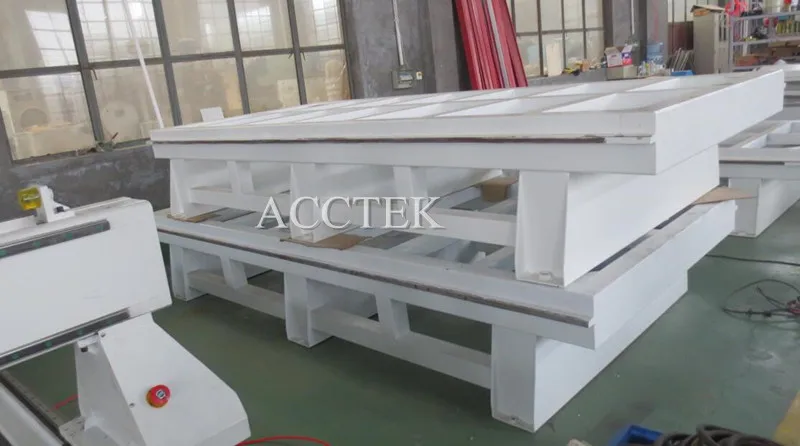

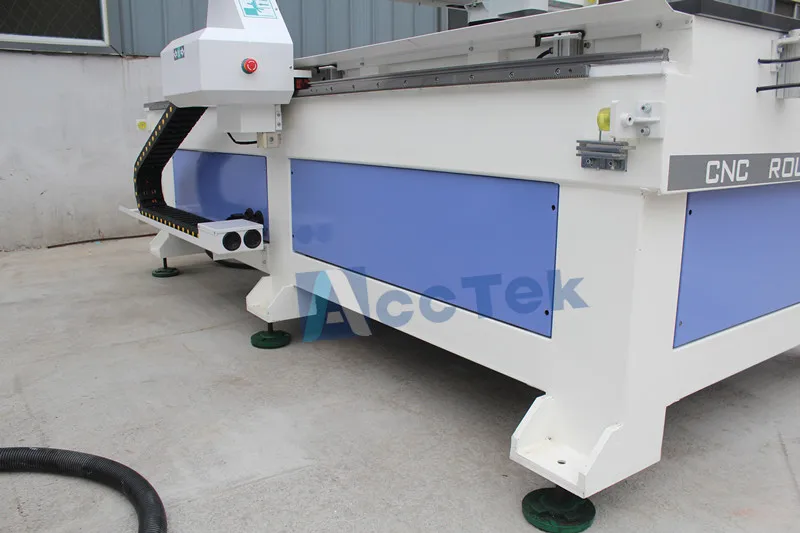

1).Welded structure by thick profiled steel stabilized under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.

2).Machine is mainly assembled with precise parts.

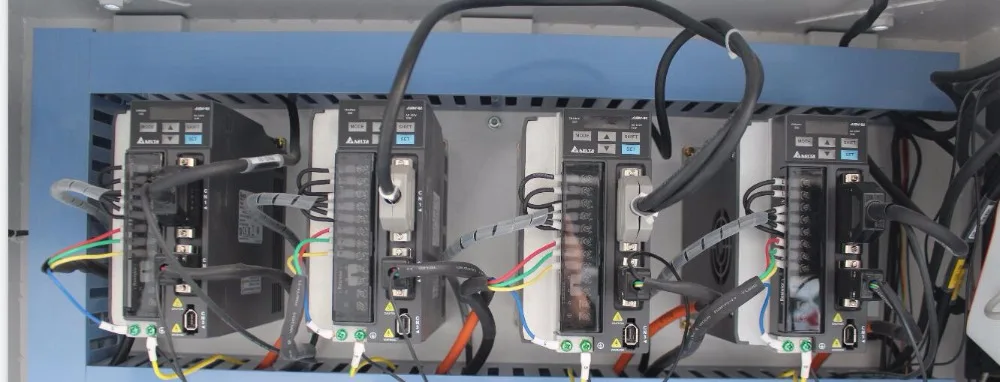

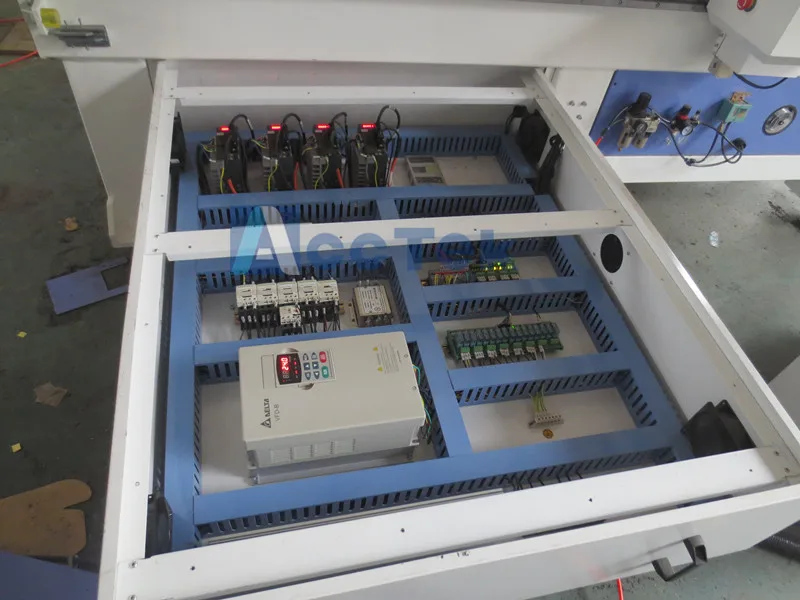

#.Taiwan Delta servo motor makes machine stable running with low noise, high speed and high accuracy.

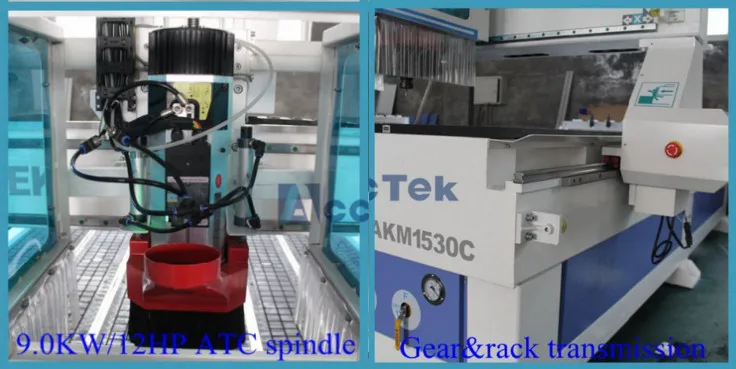

#.9.0kw chinese air cooling ATC spindle makes machine with high precision and long service time and stable  movement.

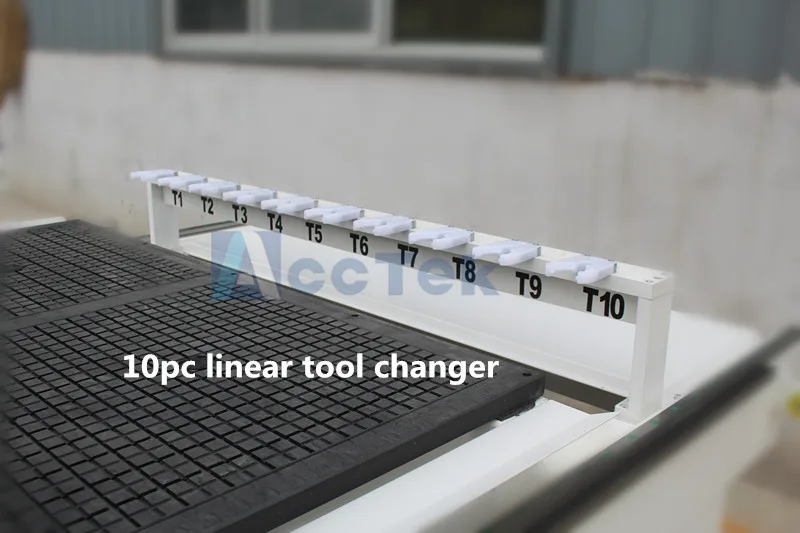

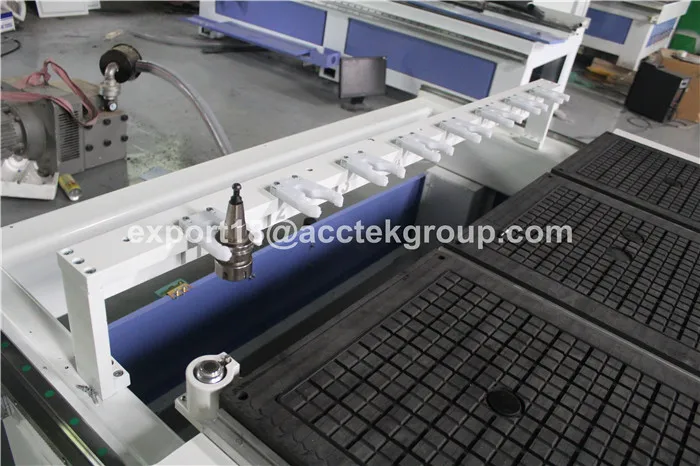

#.Configured with imported tool magazine of 10 tools the machine can change tools speedy

and freely.  Changing tools in 6seconds.

#.Tool sensor enables the machine compensate the tolerance of the tool length.



3).Vacuum working table with double cavities and Bakelite material with high absorption power.

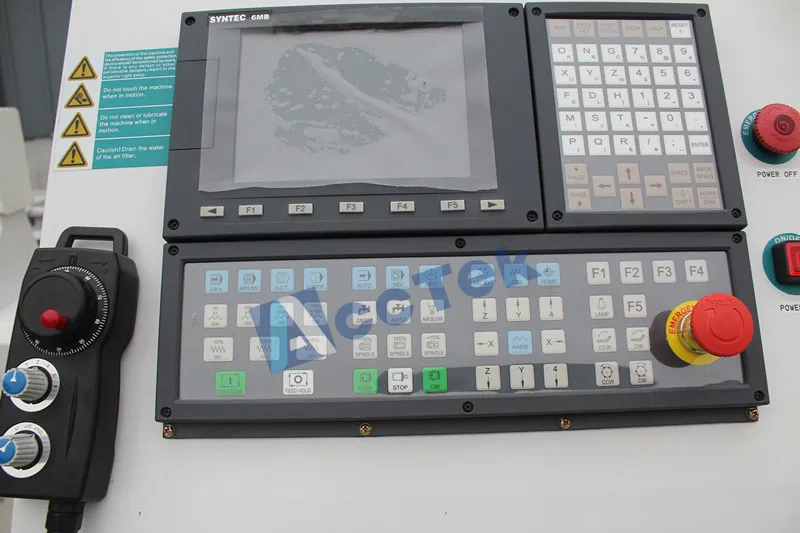

4).Imported Taiwan SYNTEC control system, separated keyboard control, color LCD display

add machine  more versatility.

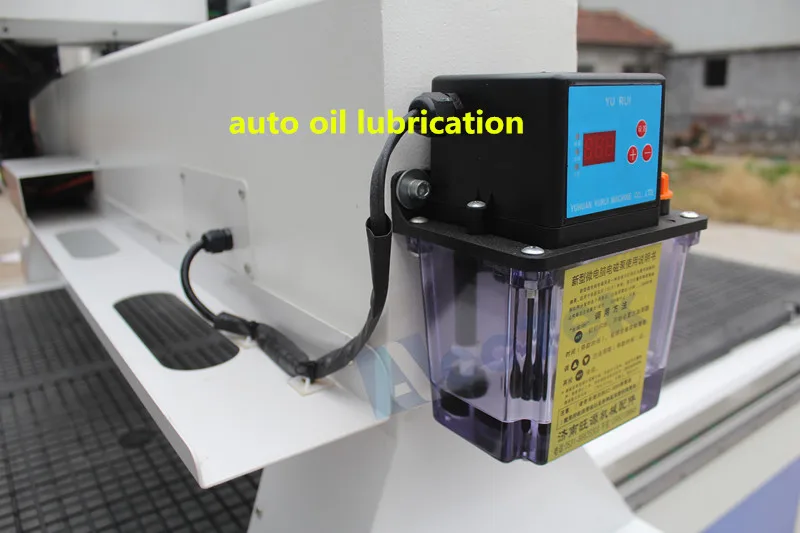

5).Automatic lubricating system, one touch can finish periodic maintenance easily.





Application of automatic tool changer cnc router 1325

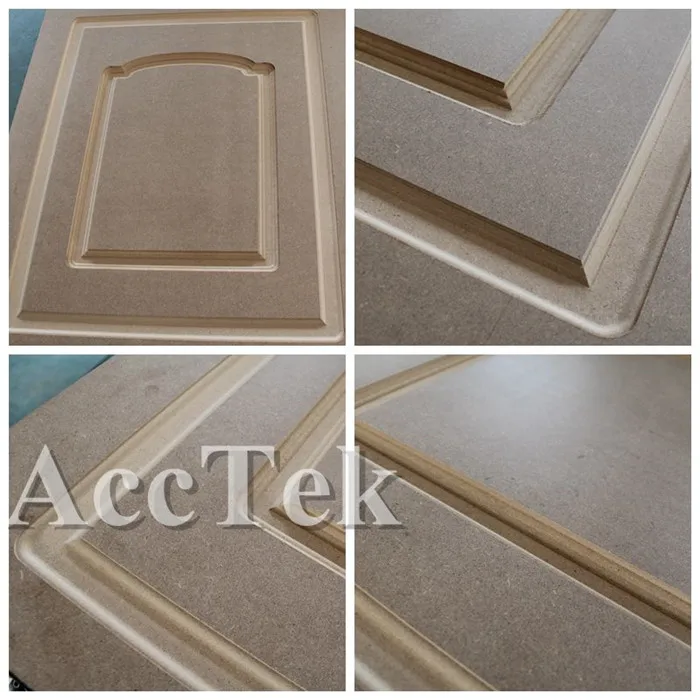

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.



2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.



3.die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.



4.relief sculpture and 3D engraving







After sale service of

1).24 hours technical support by Email or Calling.

(Skype: cnc.help)

 2). English manual and video for machine using and maintaining.

 3).  Hardware: 1.5 years on all parts (without person damaged).

                       Software: Whole life on update for free.

                     Maintenance and technological support: Whole life.

 4).Engineers available to service machinery overseas
