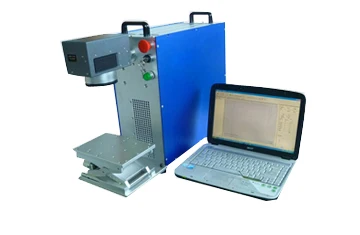

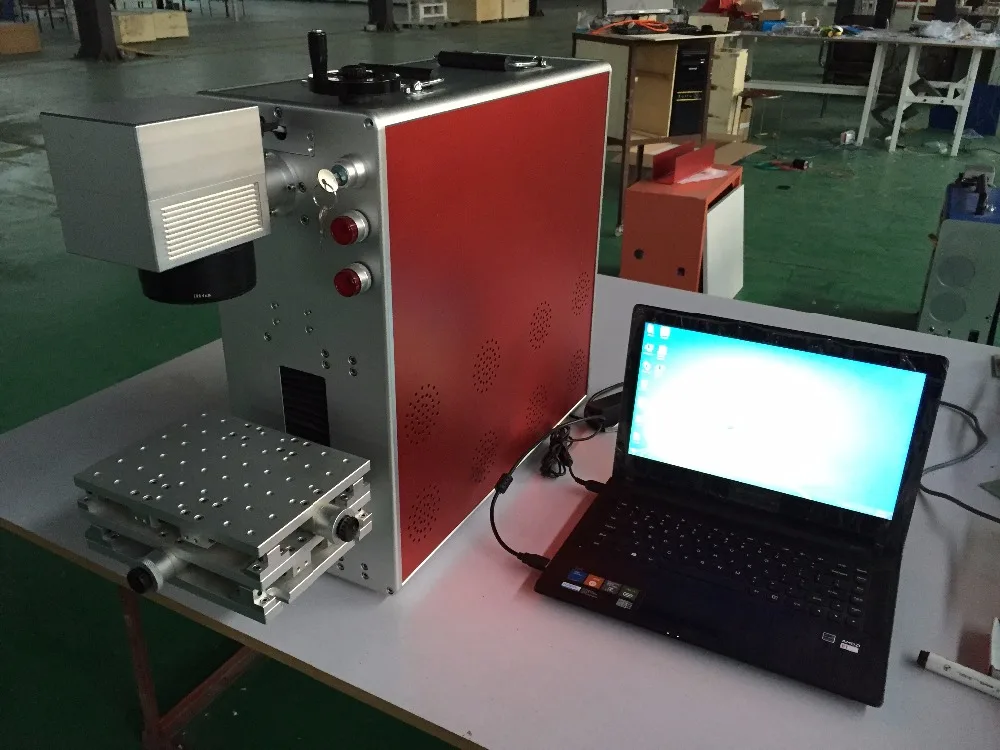

NT 30w Metal Fiber Laser Marking Machine With 110 110mm 200 200mm Or 300 300mm Working
free shipping,NT-20w metal fiber protable laser marking machine with 110*110mm, 75*75mm working table
NT-20w metal fiber laser marking machine with 110*110mm,75mm*75mm (can be adjusted)working table
Four major advantages, unmatched
1), Import chips：Smt patch technology, high frequency characteristics
2),The latest technology: Pulsed high power optical fiber
3),The introduction of foreign: high - speed digital galvanometer
4),product details: Line identification, plug-in design for easy maintenance
Many configurations are available/Meet different customer needs
Processing speed is 2-3 times the traditional marking machine
Base mode (TEM00) output
Air-cooled fiber
The output beam is of good quality, High reliability
Low maintenance, high photoelectric conversion rate
Long life> 100,000 hours
Product parameters
Laser type | IPG / the domestic (optional) |
Laser power | 10W20W (optional) |
Supports graphical format | PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF |
Beam quality | m2 <2 |
Power stability | (8h) <± 1% rms |
Pulse repetition frequency | 20-2KHz |
Power consumed | <800W |
Minimum line width | 50μm |
Minimum character | 0.3mm |
Laser Wavelength | 1064nm |
Galvanometer Size | 100 * 100mm (optional) |
Cooling way | Air cooling |
Operating voltage | 110/220V ± 10% /,50/60HZ |
Ambient operating temperature | 15 ° C - 35 ° C |
Weight | 40KG |
Dimensions | 760*210*570 (mm) |
Packing | plywood wooden packaging |
product details
1),High-speed scanning galvanometer: the use of position sensors and negative feedback loop design ideas to further ensure the accuracy of the system, scanning speed and repeat positioning accuracy reached a new level
2), Pulsed fiber
Pulsed optical fiber with its excellent fiber quality, reliability, the longest maintenance-free time, the highest overall electro-optical conversion efficiency, pulse repetition frequency, the smallest volume, without water cooling the most simple and most flexible use, the lowest The operating cost makes it the only choice for high-speed and high-precision finishing
3),Genuine Gold Oranges Software
Marking, software, etc., can be compatible with coreldraw, AutoCAD, Phoyoshop and other software files, support PLT, PCX, DXF, BMP, etc., can be directly used SHX, TTF font, support for automatic coding, print serial number; batch; date; Two-dimensional code; automatic jump and so on.
4),Fine workmanship
We pay attention to every detail of the equipment, good materials, the line orderly, accessories plug-in design allows users
to very easy to repair.
Applicable materials：Applicable various metal,.alloy and some non-metal materials.
Applicable industry:
Metal、alloy 、oxide、ABS、epoxy resin、printing ink,etc. which are widely applying for electronics,jewelry,automobiles,communication products,plastic buttons,IC,etc.
Packing
Our machine services
RAQ
Our company show:
If you are interested in it, pls just feel free to contact us.
