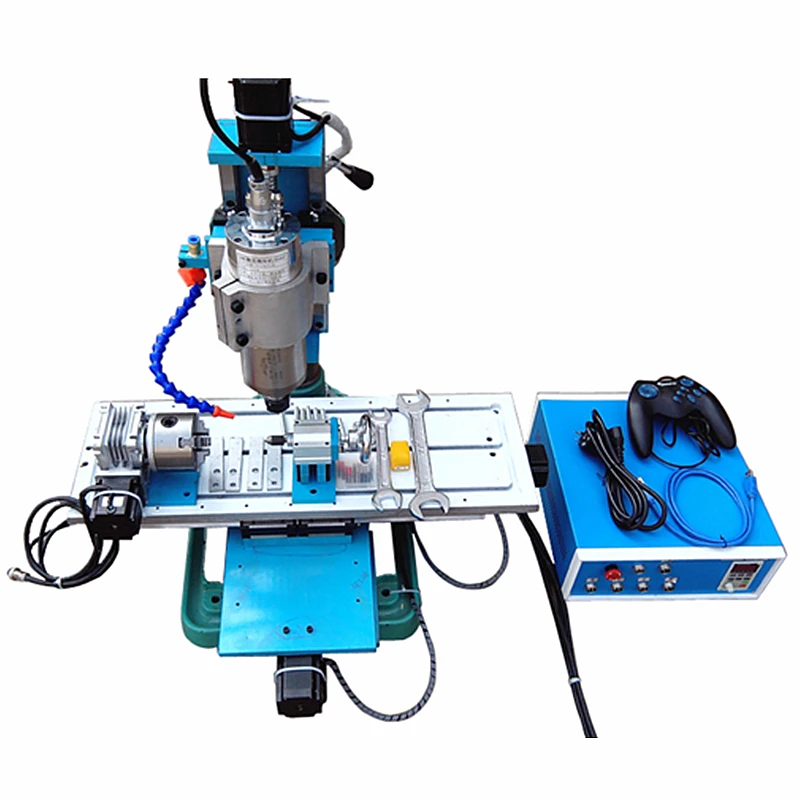

Pilar type wood router CNC vertical Engraving machine 4axis 1.5KW can upgrade 5axis

Model Number: cnc 3040 pilar type

Condition: New

CNC or Not: CNC

Rail type: Linear guide rail TRH20 (more precise moving)

Spindle motor: 1.5KW VFD water cooling spindle , 0-24000r/min

Collet type: ER11,1/8"(3.175mm) and 6mm Collet

1500W 3040L Industrial version Metal CNC Milling Machine

Mini NEMA23 57 Stepper Motor Base Bracket Mount for DIY CNC LatheUSD 6.21

Wood router cnc lathe machine 4030 1.5kw USB port InterfaceUSD 1880.00-2360.00

5pcs Light Pipes 300mm 1/4 Round Nozzle Water Cooling Flexible With Plastic MayitrUSD 10.70

DIY CNC Router Engraver machine LY Mini with 200W spindle motorUSD 659.00

DIY CNC Kit 0.8KW 1.5KW CNC Spindle Motor + ER11 1.5kw 2.2KW Inverter VFD for CNC Router Milling MachineUSD 340.00-380.00

1500W USB 3 Axes 4 Axis CNC Router 6040 Woodworking PCB Milling Drilling Machine with MACH3 Remote ControllerUSD 2100.00-2600.00

2200W 3 Axes 4 Axis Mini CNC Router 8060 USB Limit Switch CNC Metal Milling Cutting Machine with MACH3 Remote ControllerUSD 3150.00-3630.00

Introduction

The CNC 3040 router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.



Linear Guide Rail, More Precise on moving.

The engraving process is visible as controlled by computer

Simple operation and installation

Warranty

1 year full warranty directly from factory



Shipping

•     By DHL & UPS & FEDEX with tracking number, need 5~10 days;

•     By SEA , need 40~50 days;

•     Please email us your phone number after you pay for the item only for delivery purpose.





Technical Parameters

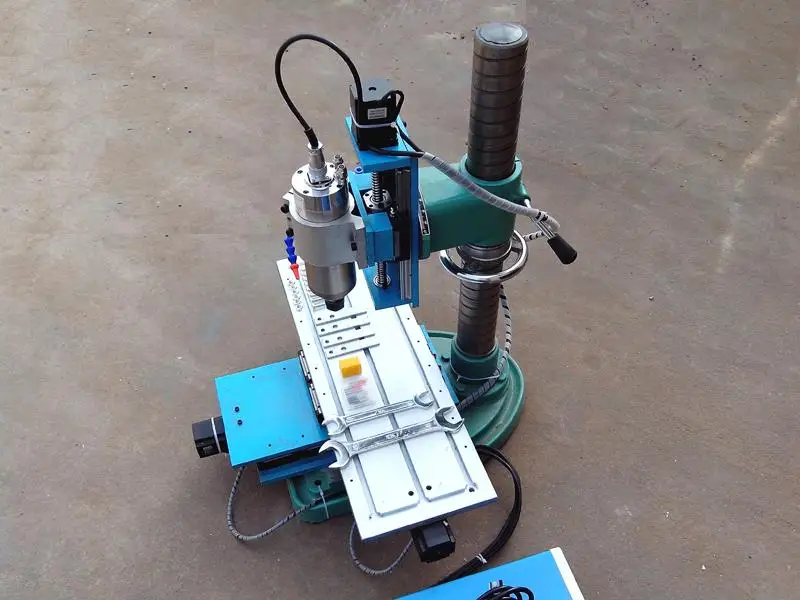

MODEL	Vertical 3040L-1.5KW 4axis
Machine Dimensions:	800 *750 * 900mm

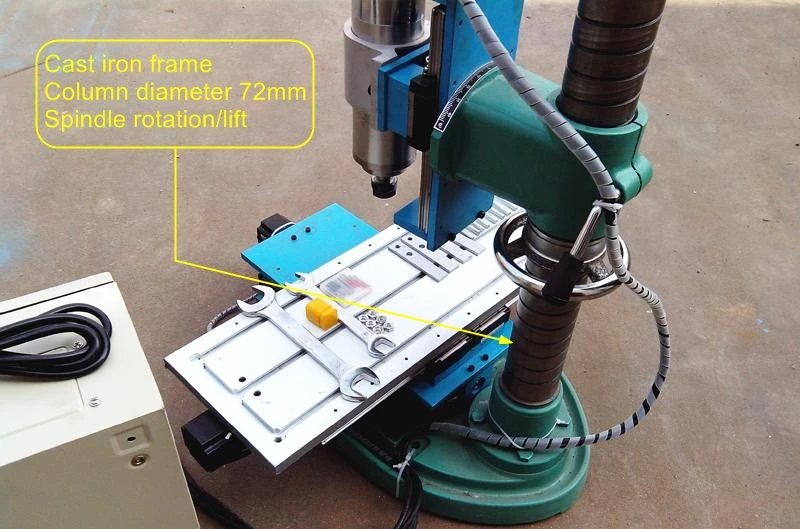

Rack material:	Cast iron frame, 72 mm diameter of the column, The weight 130 kg

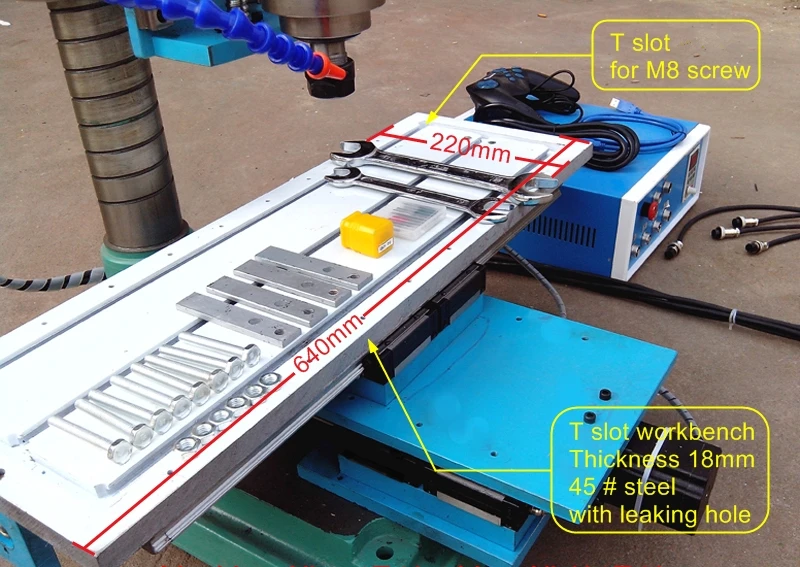

Table size	640 *220mm (Thickness 18mm T slot workbench 45 # steel)
X-axis Stroke:	360mm
Y-axis Stroke:	220mm
Z-axis Stroke:	170mm, can lift

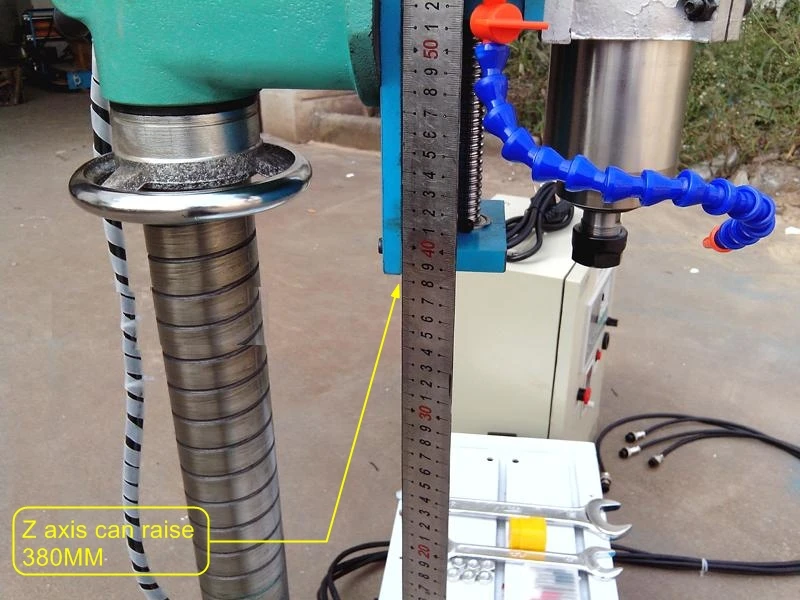

Acceptable material thickness：	380mm

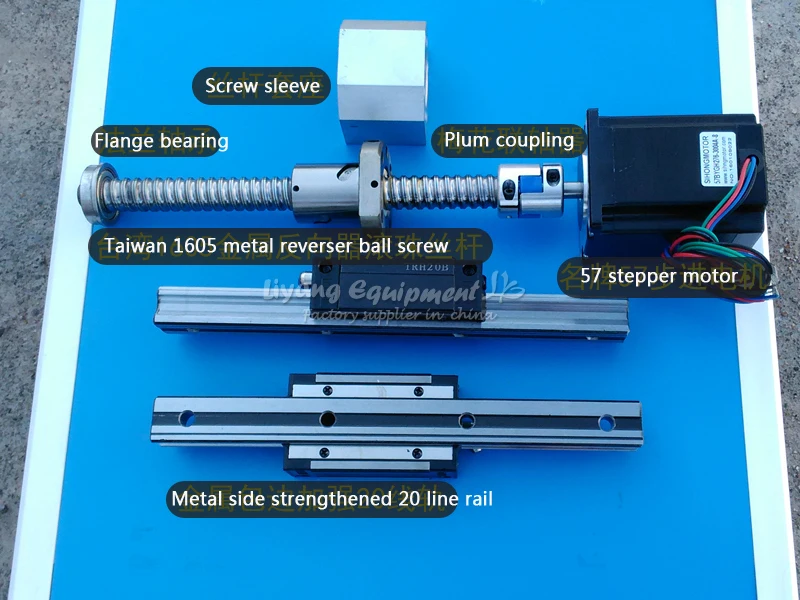

Rail type:	Linear guide rail TRH20 (more precise moving)
Type of screw:	X,Y is ball screw 1610, Z is ball screw 1605
Spindle motor:	1.5KW VFD water cooling spindle , 0-24000r/min
Collet type:	ER11,1/8"(3.175mm) and 6mm Collet
Stepper motor and drive:	two-phase 57/3A
Maximum operating speed:	4000mm/min (Engraving speed :　300-3000mm/min)
Repeat positioning Accuracy:	0.03mm

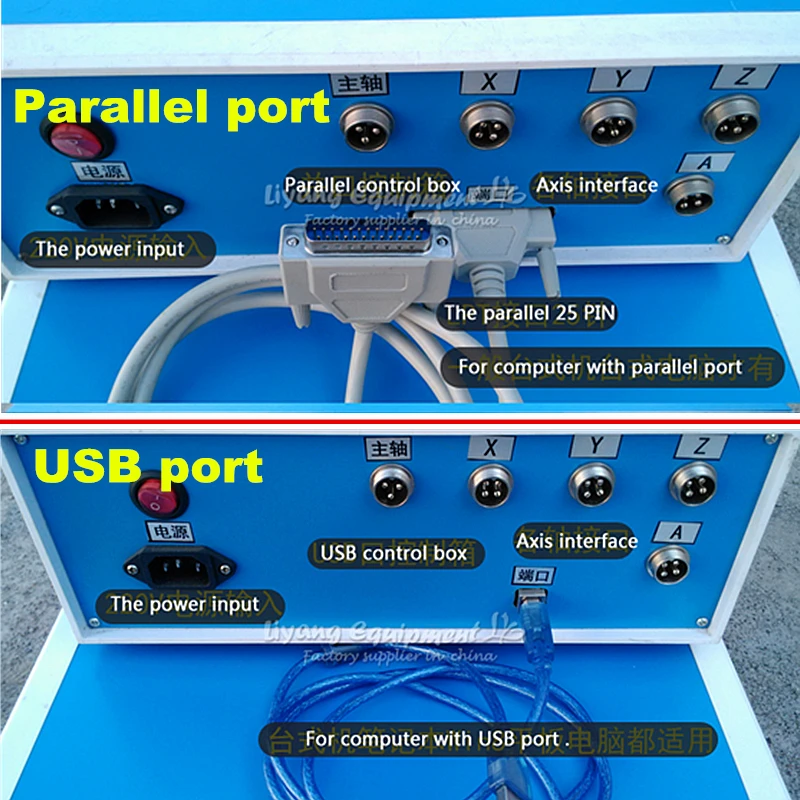

Communication interface:	Parallel port or USB port
Tool auto-checking	yes

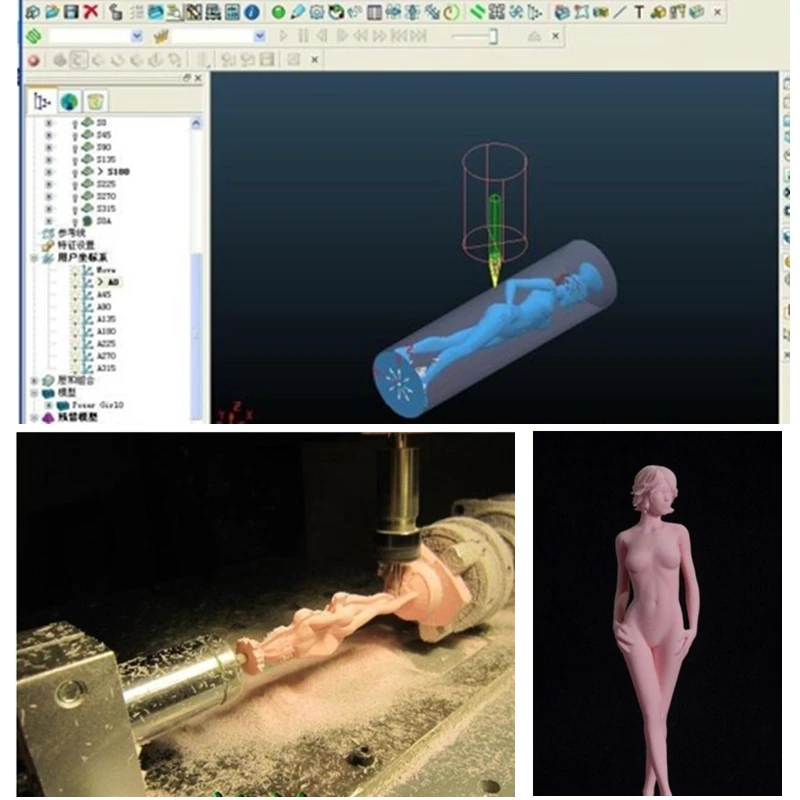

Software Compatability:	Mach3 (Type3,Wentai, ArtCAM, coppercam)
Command code:	G code/.nc/.ncc/.tab/.txt
Machine weight:	150kg

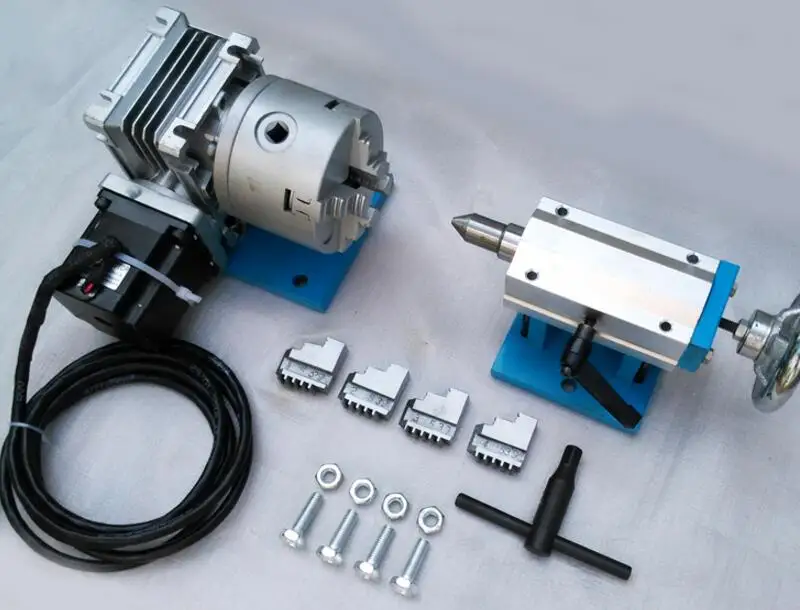

Rotation Axis (4th Axis) Description:	Chuck Size: 80mm self-centering chuck Center height: H = 71mm Clamping diameter: 80mm or less Deceleration mode: Gear box Deceleration ratio: 20:1 Stepper motor: 57 step motor current 3A Positioning accuracy: 0.075 °



Note:

This machine have other spindle, For example 800W and 2.2KW;

But the price may be different;

If you need other spindle ,please message us or contact us, thank you very much;





























Attribute			4axis
			Parallel port	USB port
Axis			4axis	4axis
Interface			Parallel port	USB port
Weigh			150kg	150kg
Packing list
1× Engraving machine			√	√
1× Control box			√	√
1× Power cable			√	√
1× Parallel port cable			√	ⅹ
1× USB port cable			ⅹ	√
1× Tool package (tools 8 pcs, wrench 2pcs, clamp 4pcs)			√	√
1× Rotation axis			√	√
1×tool auto-checking instrument			√	√
1x water pump			√	√
1× CD (if not get, may be lost in customs, please contact us)			√	√



Shipment



After payment is done and passed aliexpress checking, shipping will be made within 7 work days.



Custom Duty

A  Seller’s shipping method  means send machine to local seaport by sea , terms is CFR. please make sure can clear customs .

Import duties,taxes and your local fees are not included in the price or shipping charge .These charges are the buyer\'s responsibity.Pls make sure you can clear customs before order if can not clear customs before the deadline, your Customs will distroy the goods, and you have to bear all cost caused by the Customs clearance dealy. If want to send by courier like DHL, UPS, Fedex or EMS, pls provide us with your city name, post code, so we can check if arrive, if remote areas and how much they cost.



B  Please check with your country\'s customs office to determine what these additional costs will be before you order.



Note



A  Pls check all goods carefully before you sign to accept the package and report to us within one week if there are any parts loss or machine problems. Pls show related photos and videos.



B Due to machine is special product, big size, if shipping back, shipping cost and import tax will be very high, so we do not accept Return, but we will grantee that it can work well. During warranty, we can change you spare parts for free (Except for consumable parts)



C For Machine,Warranty is one year,during warranty,if the spare parts was sent back for repair, buyer pays for the returning shipping cost and fees, we responsible for the 2nd shipping cost and handling charges.(Except for consumable parts)
