RB 2480 Hydro Speed Regulator Hydraulic Dampers Speed Control High Performance Shock Absorber Spring Damper In

RB-2480, Hydro Speed Regulator, Hydraulic Dampers, Speed Control, High performance Shock Absorber, Spring Damper In Industry

Model Number: RB2480

Brand Name: PURROS

is_customized: Yes

DIY Supplies: Metalworking

Type: Spring return

Maximum Stroke: 80mm

Load Range: 120-1500n

Withstand Impact Energy: 2.3j

Maximum Thrust: 150kgf

Maximum Impact Load: 0.25kgf.m

Weight: 0.67kg

Model RB-24120, Hydraulic Speed Control for PURROS Electro Pneumatic Drilling Units,Precision Hydraulic Speed Control, DamperUSD 173.88

RB-31100, Hydraulic Speed Controllers for sale - Drilling Units Accessories, Buy Hydraulic Damper, Spring DamperUSD 264.96

RB-2430, Hydro Speed Regulators, Spring Damper, 30mm Length Stroke, Hydraulic Dampers, Spring Loaded RegulatorsUSD 60.72

RB-3160, Hydraulic Damper, Hydraulic Speed Regulators, Feed rate control of the Drill Unit, Spring Mass Damper SystemUSD 198.72

RB-24100, Hydro Speed Regulator With Bracket, Hydraulic Speed Control for PURROS Electro Pneumatic Drilling Units, DampersUSD 145.36

RB-3140, Hydro Speed Regulator Maker, Spring Mass Damper System,Spring Damper In Industry,Hydraulic SpeedUSD 182.16

RB-2460, Hydraulic Speed Control, Hydro Speed Regulator,Hydraulic Check, Feed Rate Control Unit, Drilling Machine DamperUSD 70.84

RB-2415, Hydraulic Dampers, Drilling Units Manufacturers,Hydraulic Buffers, Pneumatic Hydraulic Shock Absorber DamperUSD 66.24

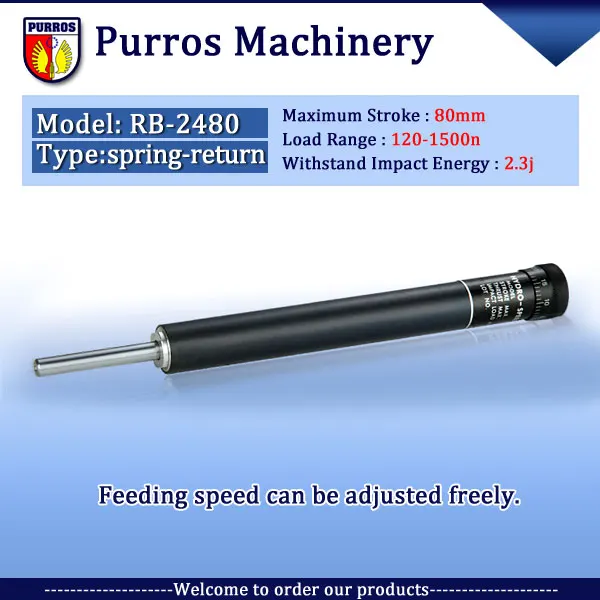

Model:RB-2480



Typpe:sring-return



Maximum Stroke:80mm



Load Range:120-1500n



Withstand Impact Energy:2.3j

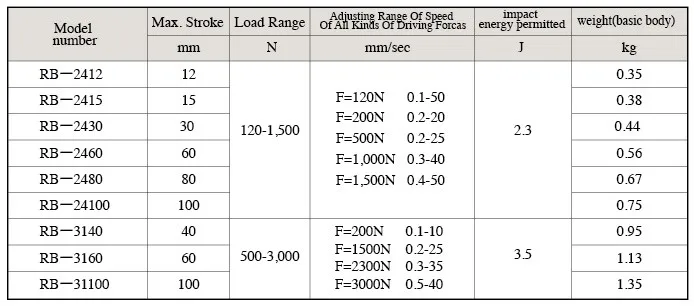

Purros Machinery also have other models (Maximum Stroke:12-100mm, Load Range:120-3000n, Withstand Impact Energy:2.3-3.5j)



Purros Precision Hydro Speed Regulator is a kind of hydraulic type control device of feed speed that can adjust freely feed speed of air cylinder from low speed to high speed within the range of expectation. Ways of control includes spring return type; you can make a choice according to your requirements.







The piston rod will return to an original position autormatically when discharge the load of piston rod of hydraulic damper Model RB.







Features



1. Compact structure, direction of installation is free.



2. Adopt full-sealed structure that isn\'t required to fill with work oil; it can keep long-time and stable control function.



3. Quick load change only causes little change of control speed, it can get stable feed speed.
