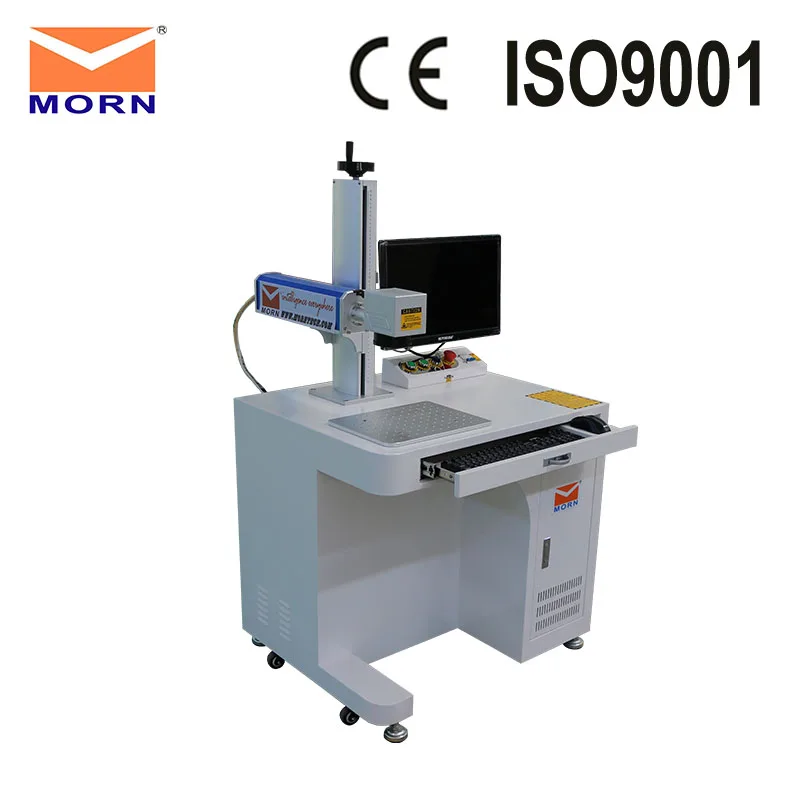

20W desktop fiber laser metal marking machine with original MAX laser source 100000 hours lifetime

Brand Name: MORN

Condition: New

Model Number: MT-F20A

CNC or Not: CNC

Product name: Fiber laser marking machine

Laser power: 20W(30W 50W optional)

Laser source: MAX (Raycus IPG optional)

Marking speed: 7000mm/s

Marking area: 110*110mm

Control software: EZAD software

Repeat precision: 0.001mm

Optional: 2D working table/Rotary

Voltage: 110V/220V

Free parts: Computer

20W desktop fiber laser metal marking machine with original MAX laser source 100000 hours lifetime

​

MORN 20W 30W 50W split portable fiber laser metal marking machine stainless steel laser engraving machineUSD 4540.26-4739.28

Hot sale CO2 laser engraving cutter machine 1410 DIY acrylic wood laser engraver caving machine acrylic laserUSD 3596.28-5519.08

MORN Ruida CO2 laser engraving cutting machine DIY wooden laser cutter machine MT-L960 with free CW3000 water chillerUSD 3082.02-3192.69

MORN JPT MOPA color M1 laser generator fiber laser engraver machine logo markerUSD 7849.20

MORN portable small 20W 30W 50W fiber laser marking machine for aluminum stainless steel gold engraving cavingUSD 5060.13-5259.15

CNC machine CO2 laser engraving and cutting laser engraver caving machine 80W 100W 130W 150W EFR laser tubeUSD 3855.78

MORN Ruida CNC CO2 laser engraving cutting machine acrylic laser cutter machine MT-L570 with free CW3000 water chillerUSD 2938.80-3059.70

20W desktop fiber laser marking machine stainless steel jewelry nameplate metal laser engraving + computerUSD 3534.00

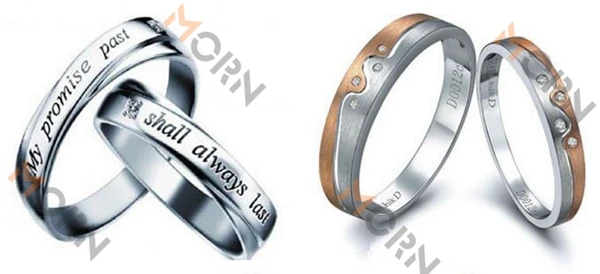

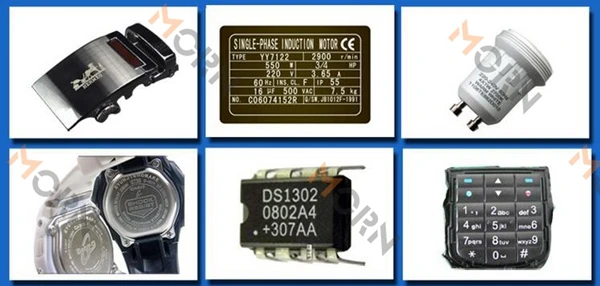

1. Wide application: high tech for both metal and non metal mark



2. Great performance: Identical marking quality with high speed.   (up to 7000mm/s speed )



3. Long lifetime: Adopt advanced fiber generator, the life time could up to 100,000 hours.



4. Low consumption: It is environment-protecting and energy-saving, power consumption is reduced by 3-10 times compared with YAG laser. Using cost is really cheap.



5. Maintenance-free: The machine is maintenance-free, there is almost no any parts need to change after long term use.



6. Easy operation: The machine is very easy to use, and even the fresh man can use it well.





Model	MT-F20A
Laser power	20 W(30W/50W optional)
Working  Area	110*110mm
Cooling Mode	Air Cooling
Laser Wavelength	10.64 um
Frequency of pulse	20-100 KHz
Marking Depth	≤0.3 mm
Marking Speed	≤7000 mm/s
Marking Lines	1-10 lines
Minimum Line Width	0.01 mm
Minimum Character	0.15 mm
Repeatability Accuracy	±0.001 mm
Resolution Ratio	0.1 mm

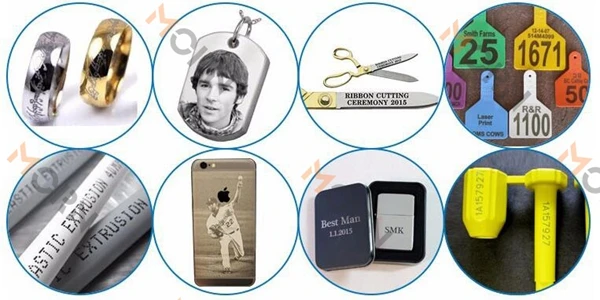

Marking Content	Text, pattern, date, bar code, etc
Operation System	Microsoft Windows XP or Windows 2000
Control Software	EZCAD Control Software
Graphic Format Supported	BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.
Unit Power	≤0.9 KW
Operation Temperature	5°C-40°C
Relative Moisture	≤ 90%, no fog
Dimensions(L*W*H)	85 x 74 x 153 cm
Power supply requirements	220 V

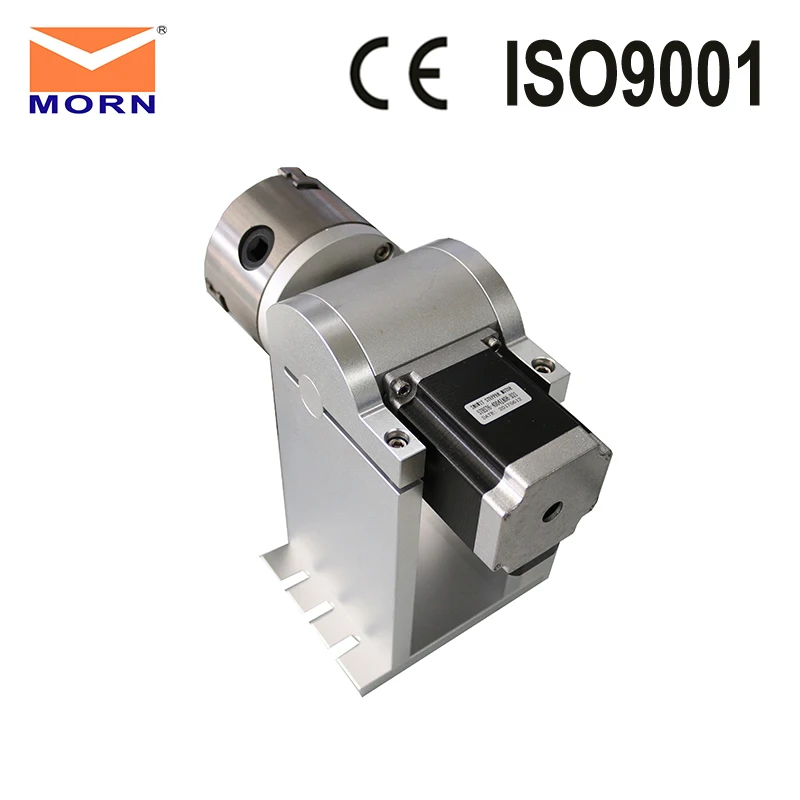

Optional	Rotary device/2D/3D work table/110V voltage
Warranty	24 months



1 x 20w fiber laser machine

1 x Ruler

1 x USB flash disk

1 x Pedal

1 x Power cable



1 X PC







Before the order:

1. We offer Sample free marking testing;

2. We offer Technical support for free;

3. We offer marking solutions for free.

After the order:

1. Machine user manual in English. (If you need, we also offer user manual in different languages;

2. Technical support for whole lifetime;

3. Marking solutions for whole lifetime;

4. 2 years warranty.
