3 In 1 Woodworking Pocket Hole Jig Kit Drilling Dowelling Carpentry Wood Tenon Dowel Drilling Guide

3 in 1 Woodworking Pocket Hole Jig Kit Drilling Dowelling Carpentry Wood Tenon Dowel Drilling Guide Locator Tool Hole Puncher

DIY Supplies: Woodworking

Model Number: 08350

is_customized: Yes



Specifications:



The main material: Aluminum alloy

The main purpose: To achieve a variety of wood products connection

Technical treatment: heat treatment and hardening,good abrasion resistance, long service life.

Threaded rod drill sleeve adjustment range: 5-35mm

Eccentric wheel drill sleeve adjustment range: 23-42mm



Instructions:



1. The puncher is fixed on the board, it is recommended to be 30mm from the edge.

2. Adjust the distance between the limit ring and the drill sleeve to determine the depth of the hole

3. Drill the threaded rod hole and insert the round raft

4. The puncher is attached to the round raft and then clamps the board

5. Start drilling

6. Lock the wood board, when drilling the eccentric wheel hole, please ensure that the drill bit is perpendicular to the drill sleeve by 90 degrees.

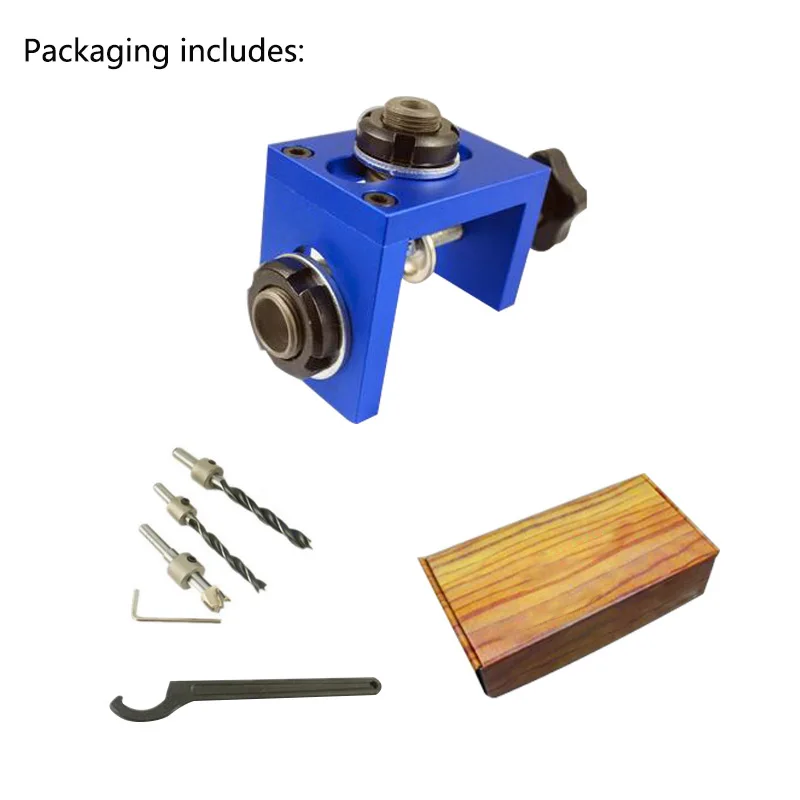

Packaging includes:



1.08350 puncher (with threaded rod 8, eccentric 15 drill sleeve)

2.8/10/15 brick (with limit ring)

3. Allen key (lock bit limit ring)

4. Half moon wrench (lock drill nut)

5. Packing carton



Gifts:



1.20 pieces of 8*40 round raft

2.10 pieces of 3 in 1 connector
