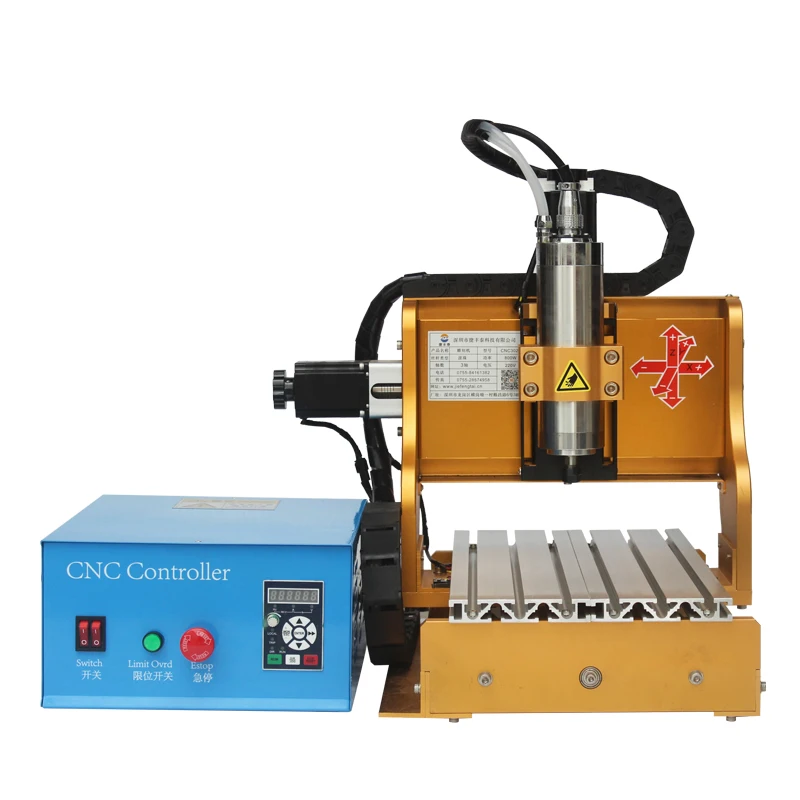

3D Mini CNC Router 3020 3 Axis Wood Carving Machine For Woodworking With Parallel Port

Model Number: 3020 800W

Brand Name: JFT

Condition: New

CNC or Not: CNC

3D Mini CNC Router 3020 3 Axis Wood Carving Machine For Woodworking With Parallel Port

A well tailored machine to meet your specific applications

help move your business to the next level

 Introduction

    JFT CNC3020 800W (3 Axis + Parellel Port controller ) Engraver is a desktop CNC machine, designed for processing        standard level of engraving application, suitable for both Production & Amatuer Use, such as:

 Prototype Building / Model Making / PCB / Adverstising Signs / Artwork / Crafts / Aircraft Models / RC Model parts / Jewelry:  Rings / WoodArt / Souvenirs making

 Large 3D engraving in soft wood,MDF board,native wood,PVC,Acrylic

 Very similar to putting a printer to a PC: You design in various front end software, afterwards engraving on CNC3020 to  different materials:

 Non-Metal: WOOD / PMMA / plastic /MDF board / native wood / PVC / Acrylic / More ...

 Metal Materia: Bronzing / Aluminium / Alloy / Gold / Silver / Steel/ Iron / Stainless steel / Titanium / Tungsten and more ...

 High Precision & High Speed but Cheaper Price features JFT CNC 3020. SLIM but Still effective.

 Features

  Hardware: Installation is simple, Operation is easy.

  Software: Controlled and Operated by Mach 3 software or NC STUDIO.

  Aluminum alloy frame materials

  Engraving more materails by spiral flute bits: Metal & Non-Metal.

  Engraving more precisely upto 0.05 mm

  Flexible coupling can be used for high torque transmission.

  Leadscrew: 3 Axis are lead by Original TBI 1605 screws made in TaiWan

  Both Wire & Wireless DSP off-line controlloing device support

  1 year Warranty.

Specifications



Model	CNC3020Z-A800W
Dimension	540*440*460mm(L*W*H)
worktable dimensions	450*240*20mm(L*W*T)
Working area	200mm*300mm*80mm
Frame material	The machine is 6061 aluminum .Panel is 6063 aluminum and the surface is anodized.
Type of Screw	TBI SFU1605 ball crew
Rail type	Chrome plate shaft + Linear Bearings(surface hardening 61 HRC)
Spindle Motor(rated voltage)	800W( 600HZ VFD)
Cooling mode	Water cooling
Control system	Mach3 / Parallel (USB ) port
Collet type	ER11  1/8”(3.175mm)and 6mm collet
Stepper motor	57Type 4A
Max.working speed	4000mm/min(engraving speed:50～3500mm/min)
Repeat positioning	Less than or equal to 0.02mm
Carving accuracy	0.03mm
Spindle speed	24000rpm/min
Command code	G Code (tap, nc, ncc, text)
Input voltage	AC220V/AC110V
Package size	54*41*42cm(L*W*H)
Package weight	35Kg
Packing	Carton

CAD File

 Warranty Main Parts Description

- For Gantry, Lathe Bed & Stand, We provide whole life time warranty.

- 24 hours technical support by email, call, video and remote control.

- For entire machine, one year warranty ( spindle half year ). Within warranty, we provide new parts free.

- After 1 year: we offer cost price for cnc machine parts replacement, however, buyer will be responsible for shipping cost.

- Warranty counts started from the date of B/L.



 Company Information

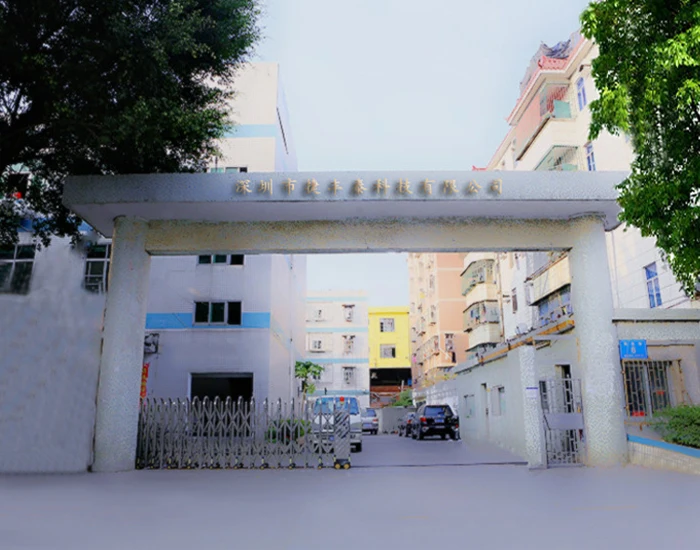

 Founded in 2007, Shenzhen JieFengTai Technology Company now have 10 years of experience in manufacturing & exporting  various CNC routers, Laser Engraver，Laser Markers etc.

 We commit to produce top-efficient machines through which you DESIGN ANYWARE & Engrave both in Factory & at HOME.

 Products ranges as:

 Deluxe model (Square Rail as the sliding unit) : CNC 3030F; CNC 6040F, CNC6090F

 Industrial grade: CNC 3030; CNC 6040; CNC 6090 ; CNC80150 Industrial;

 CNC Default : CNC 3020; CNC3040; CNC6040; CNC6090;

 Laser marking : from 10-50W with working area 100x100 to 300x300 mm.

 CO2 laser , from 40W to 130W.

 Besides the above for production use, we have MINI staff for hobbyist\'s fun & research use: CNC1610/2418/3018, and Mini  Laser Marker.

 we have more by innovations ...



Payment

We accept following payment

- Aliexpress Online

- T/T to Trade Assurance Account of Alibaba

- West Uniton

- Paypal

- Contact us for other

 Package & Shipping

 We send only via Expedited mail & packed very carefully.

 The Buyer is responsible for paying any extra charges and tax fee from customs, therefore please check your local customs  laws and your imported tax fees.

 Shipping to remote areas is possible but extra charges may be request, if you live in a remote area (For example: islands),  please contact us for a shipping quote, To be sure your address is not a remote area you can check the DHL remote area  list website: https://raslist.dhl.com/jsp/first.jsp



 FeedBack



We so treasure your satisfication and your positive feedback, please leave us your  important feedback with 5 stars if our products and services makes you well.  Please contact us before you leave negative feedback if any issues, we shall be there  with to resolve with a postive services.
