CNC3018 Standard Mini Engraving Machine Laser Engraving Machine CNC Engraving Machine Three Axis Engraving Machine Parts

-

CNC 3018 500mw/2500mw5500mw laser GRBL control Diy laser engraving ER11 CNC machine,3 Axis pcb Milling machine,Wood Router 30x18


CNC 3018 500mw/2500mw5500mw laser GRBL control Diy laser engraving ER11 CNC machine,3 Axis pcb Milling machine,Wood Router 30x18



  • CNC or Not: CNC
  • Model Number: 3018
  • Condition: New
  • Brand Name: YZJGDKJ


    • NOTE:
    Part of the components and the core components have been assembled,  only need to install the rack according to the installation instructions when you receive it ,then it can be used, the control board wiring is basically a connector, no professional knowledge.


    machine parameters:
    Control software：GRBL control
    Construction ：Aluminum + plastic
    Profile Dimensions: 400*330*240mm (xyz does not contain the motor protruding part)
    Stroke (engraving range): 300x180x40mm
    Screw: T8 screw, lead 4mm, double copper nuts disappear badly
    Stepping motor: 42 stepper motor.
    Parameters: voltage: 12V, phase current 1.3A, phase resistance 2.1 ohms, torque 0.3N.m
    Spindle: 775 Spindle motor (12-36V) 24V: 10000 rpm
    Laser head: see package
    Power supply: 24V 5A power adapter (input voltage 110-240V), simple and convenient
    Countertop: 20100 Profile
    Rack: 2020 profiles
    Gray Part Material: Plastic
    Control software: (two software optional ) GrblControl and laser software
    Design software: all CAM (computer aided manufacturing) software can be
    System requirements: windows XP SP3, win7, win8. (32/64 can be). Linux
    Interface: USB
    Standard    ：The complete set of the parts and tools
    Engraving materials ：Plastic, wood, acrylic, PVC, PCB and other soft materials

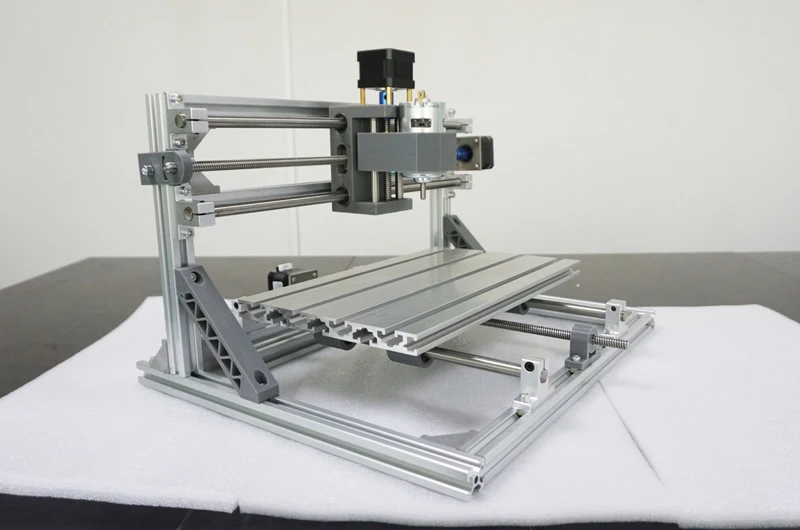

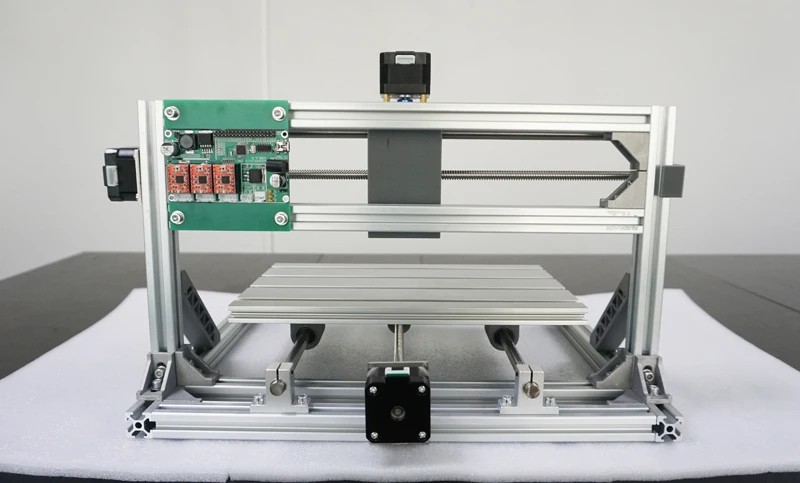

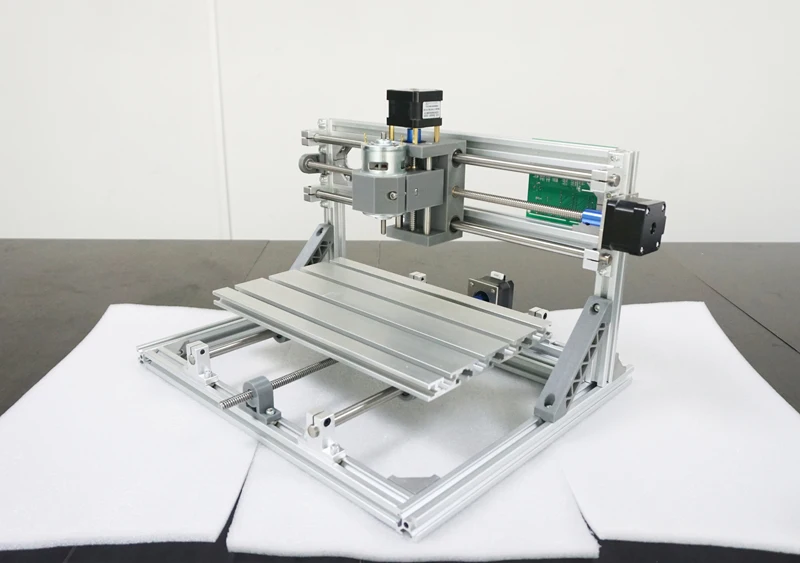

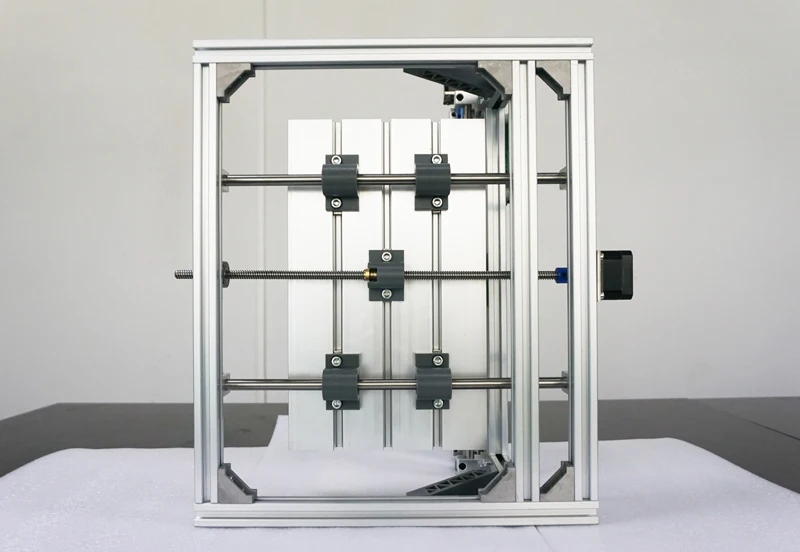

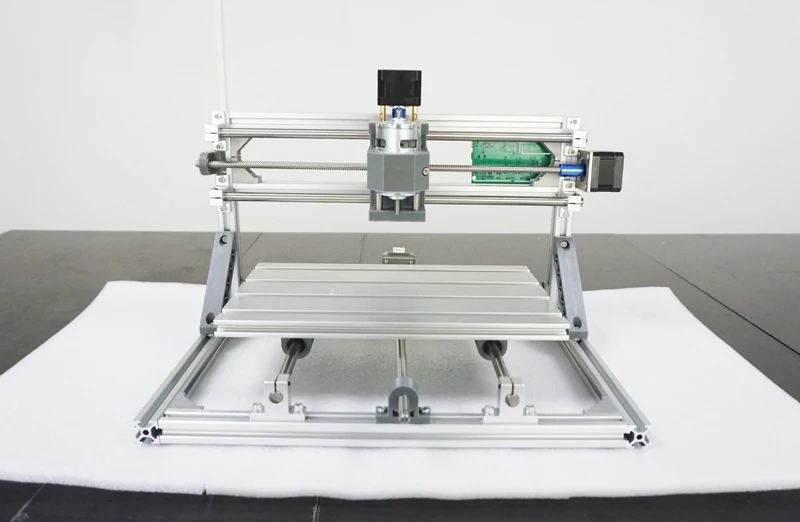

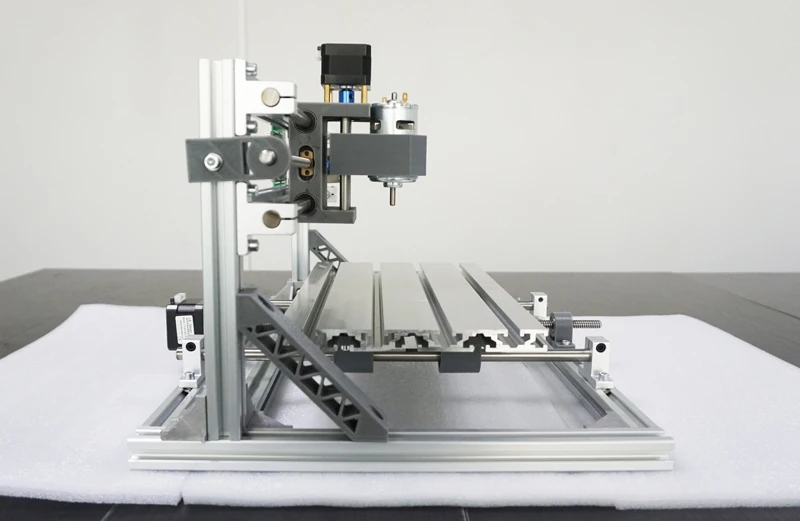

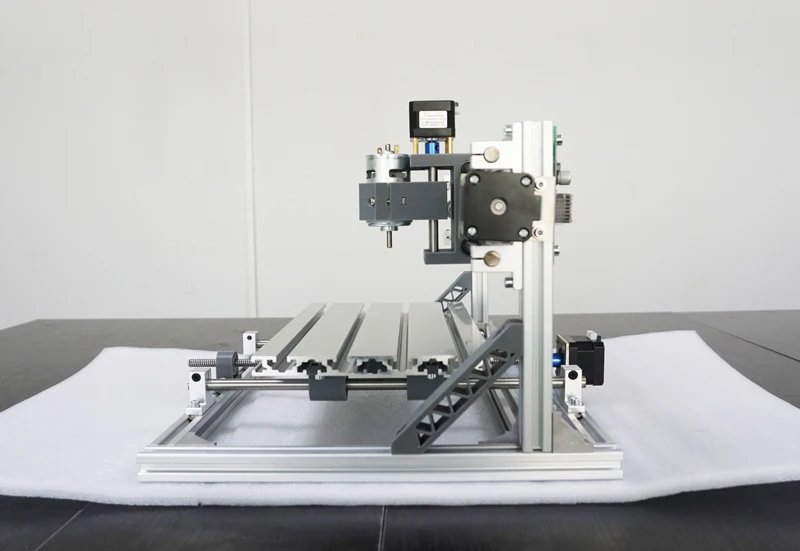

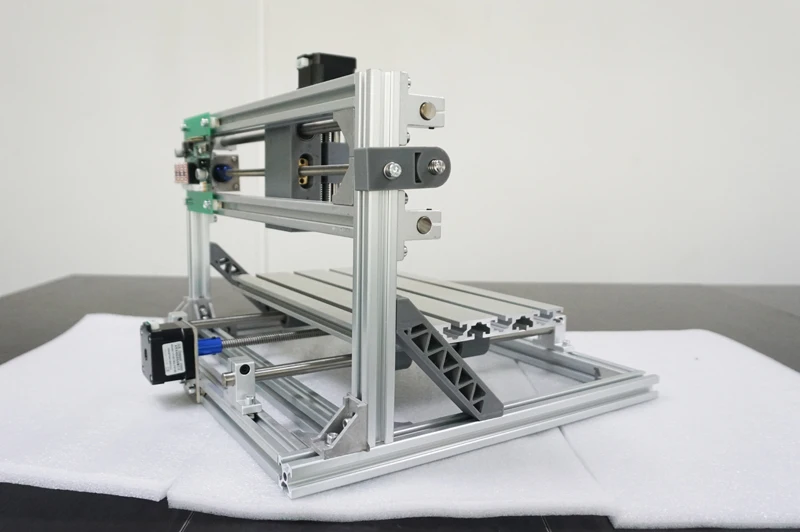

    machine picture
    3018-13018-23018-33018-53018-63018-73018-43018-8


    laser head
    500mw-1__

    software:
    1.software for cnc machine

    HTB1CxtKNXXXXXcMXVXXq6xXFXXXq

    2.software for laser machine  :

    HTB1b5N7NXXXXXauXpXXq6xXFXXXG
    Package
    45
    3

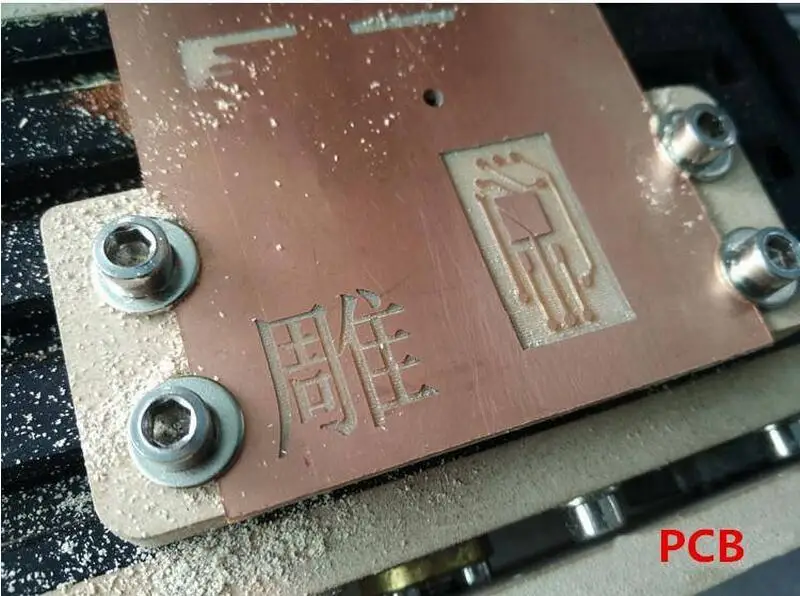

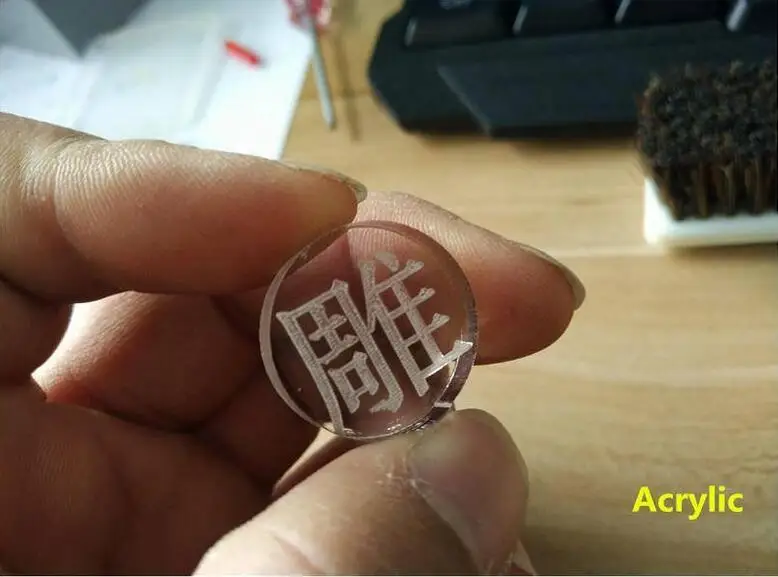

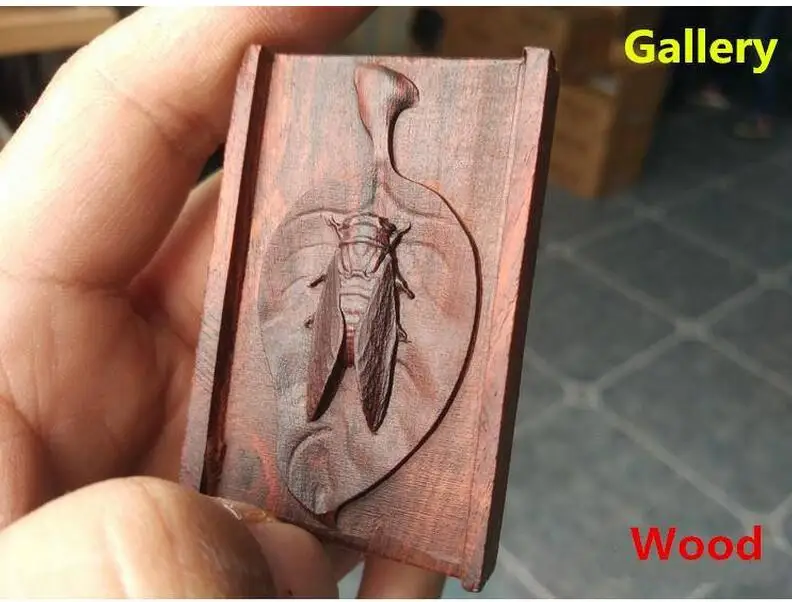

    Engrave sample:

    111222333444555

    12678



    1133
