Shandong AccTek Cnc Double Laser Head CO2 Engraving And Cutting Machine Price

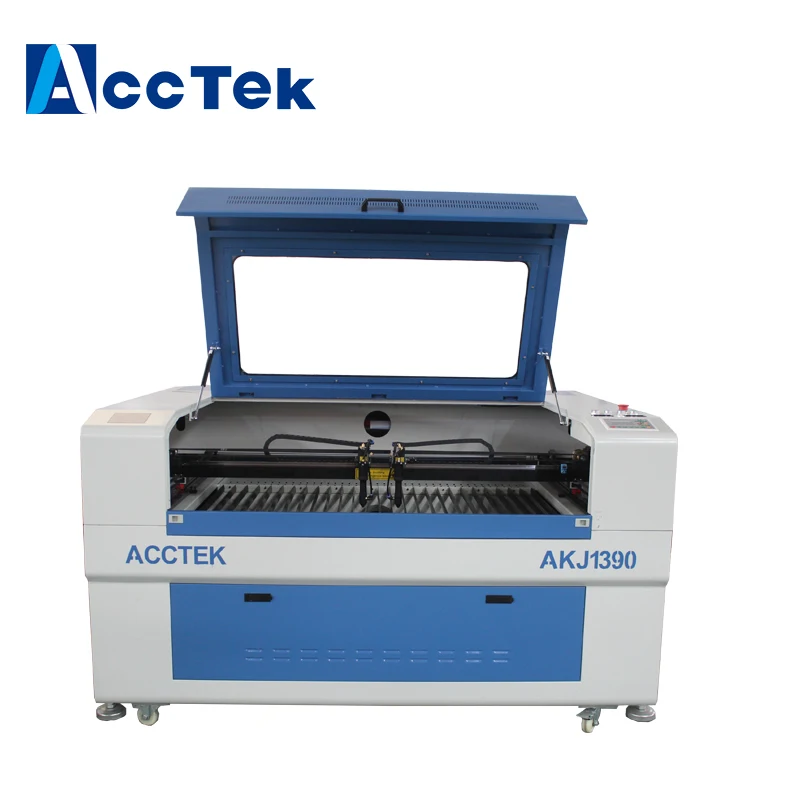

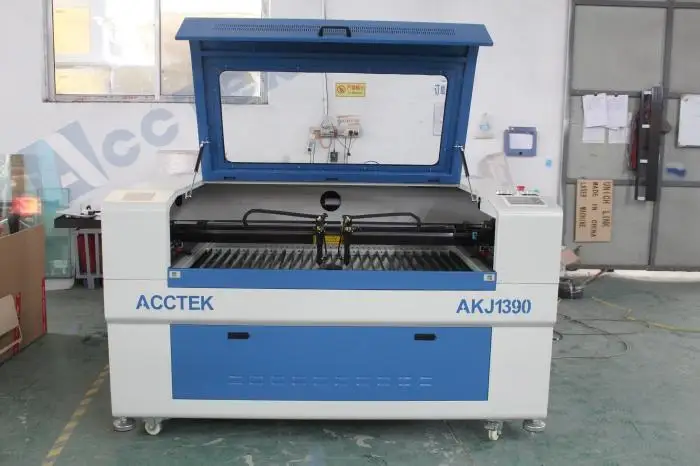

Shandong AccTek cnc double laser head CO2 engraving and cutting machine price
Shandong AccTek cnc double laser head CO2 engraving and cutting machine price
Main feature of laser cut machine:
1). Fixed cabinet frame for rigidity.
2). Materials can extend through the front and rear doors to allow for a larger work product.
3). Large motors for faster engraving speeds
4). Taiwan Hiwin rail guide and Shanghai Fulong belt make the engraving and cutting smooth.
5). Red-Dot pointer to help you see the expected laser beam position.
6). Main components are imported.
7). When the laser tube>=100W, Advanced water chiller for cooling laser tube, adjust temperature automatically. Besides, it has the function that protect the laser tube from damaging caused by any incidents.

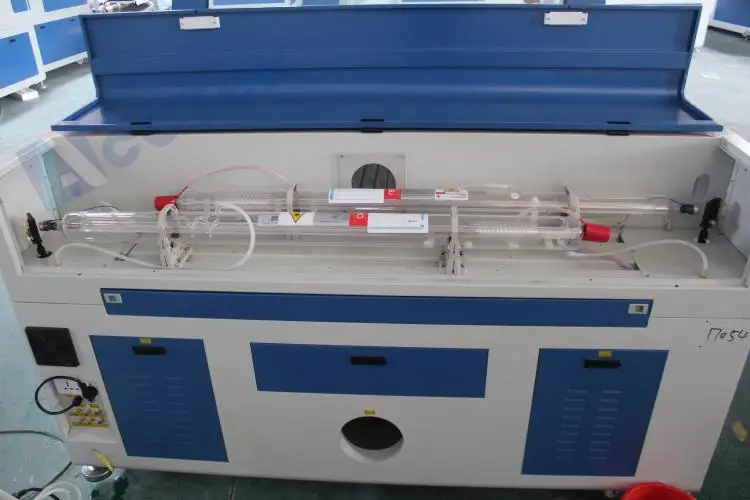

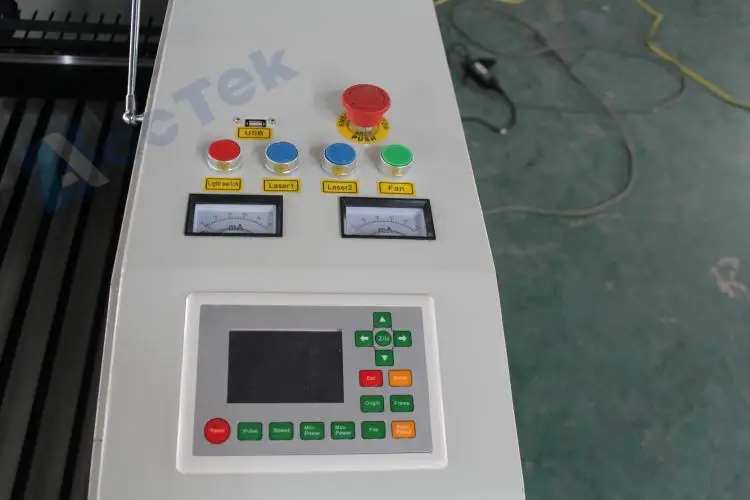

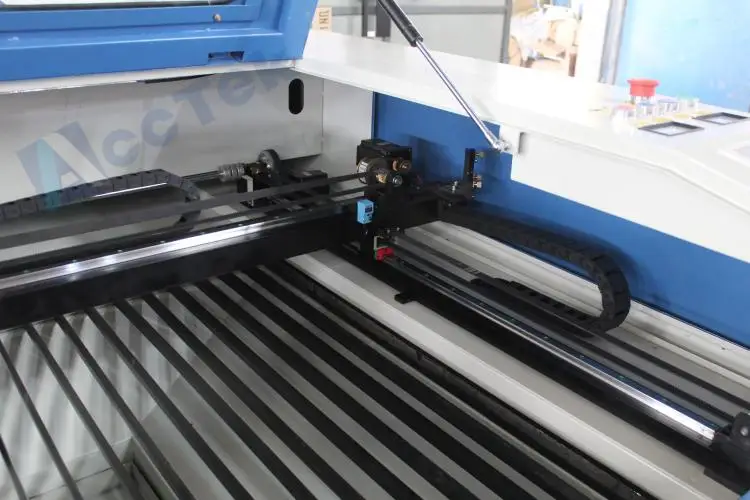

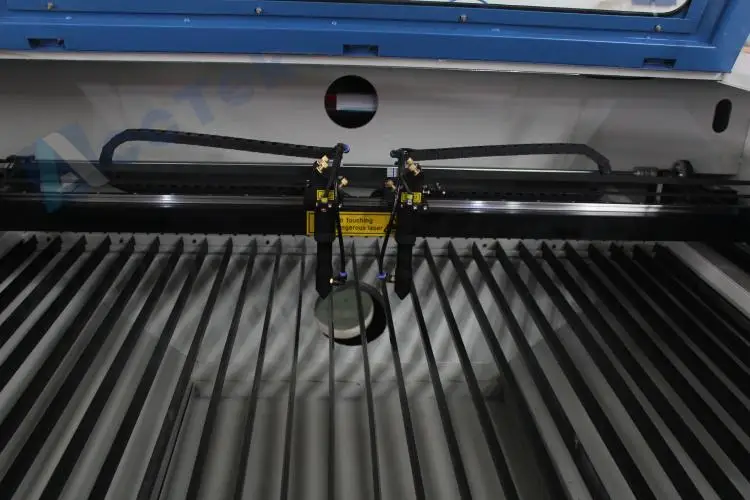

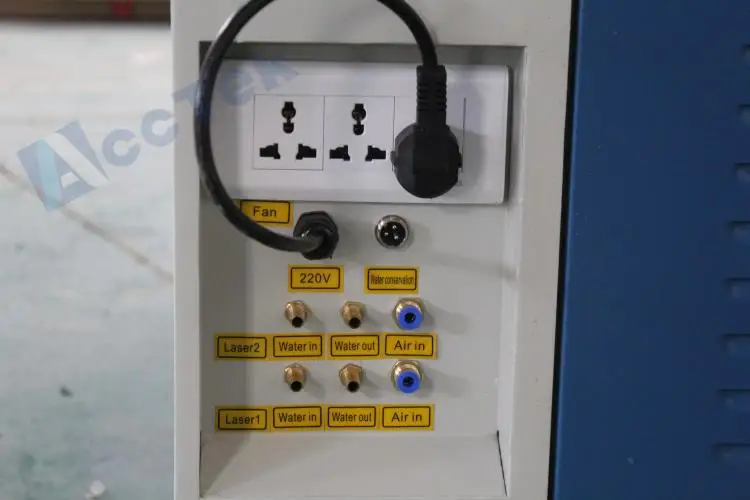

Some detail of laser cut machine:
Parameters data of laser cut machine:
| Model: | AKJ1610H-2 |
| Power: | 80w/100w/130w-150w/150w-180w/260w |
| Working area: | 1600*1000nm(optional) |
| Control system: | Ruida control system |
| Consumption: | 0.6kw/h |
| Power supply: | single phase 220v±10, 50/60 Hz |
| Transmission: | Shanghai Fulo belt(TBI ball screw optional) |
| Drive system: | Steppor motor and leadshine driver |
| Running Speed: | 600mm/ s |
| Cutting Speed: | 20-15mm/s(depends on material and thickness) |
| Engraving Speed: | 500mm/s |
| Lenses and mirrors: | 3mirrors and 1lenses are import from Singapore |
| Min. Line Width | 0.012mm |
| Water pump: | water chiller optional |
| Air pump: | 0.8pa air compressor |
| Exhaust fan: | 550w inside the machine |
| Repeat Accuracy: | ±0.01mm |
| Graphic format supported: | G code: *.u00, * mmg, * plt, *.nc |
| Compatible software: | RDcam and other CAD |
| Other options: | # Dual heads |
Application of laser cut machine:
Non-metal and metal materials such as acrylic, double color board, Plexiglas,Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth car mat,clothes, acrylic, textile, wool,plastic,MDF, ABS, plastic, clothing, denim fabric, jeans, bra, underwear, bags,shoes, bathing suit, bath towel, pillow cover, arts and crafts, and all other nonmetal materials. Carbon Steel and Stainless Steel.

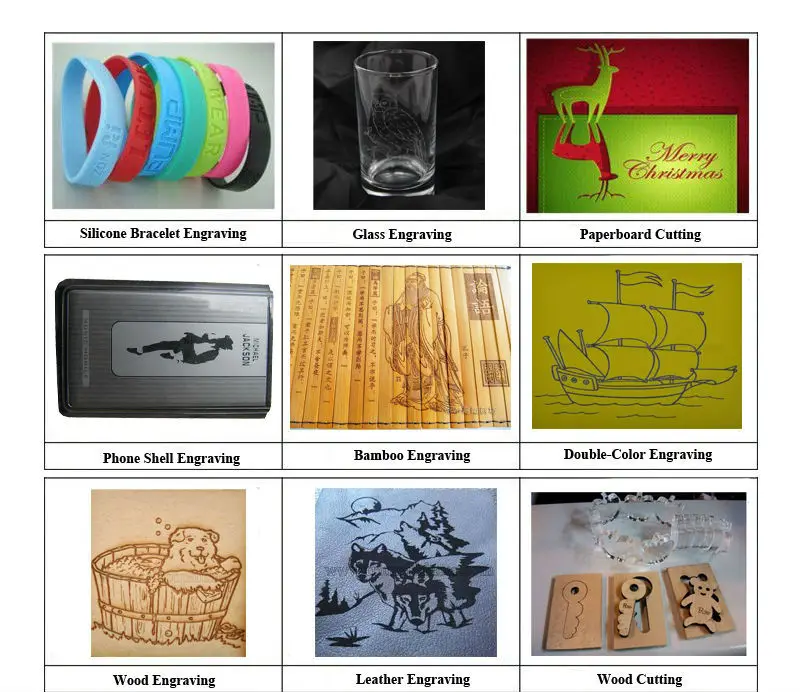

Samples of laser cut machine:
Q. What materials can be engraved on Laser engraver and cutting machine?
A. A large range of both metallic and non metallic materials can be engraved on a laser engraver machine including wood, acrylic, plastic, leather, glass, vinyl, fabric and many more.
Q. What materials can be cut on an Laser engraver and cutting machine?
A. Many non metallic materials can be cut on a Laser engraving and cutting machine. GH Laser machines are often used to Laser cut materials such as timber, acrylic, fabric and paper.
Q. What industries would use an Laser engraving and cutting machine?
A. Many industries can use Laser engraving and cutting machines for a huge range of applications. The laser engraving machines are used for part number labeling, bar-coding, signage, promotional goods and many, many others.
Q. How thick can an Laser machine cut?
A. How thick a Laser cutter can cut depends on the wattage of the laser and the material, but for an example a 100W laser can cut up to 20mm acrylic with good edge quality.
Q. What power supply is needed to run a Laser engraving and cutting machine?
A. All Laser’s laser engraving and cutting machines run off AC 110 - 220V ±10%, 50 - 60Hz
