Silver Laser Marking Machine For Metal Laser Printer Engraver 4 Axis Cnc Stl Free For 3d

Silver Laser Marking Machine for metal laser printer engraver 4 axis cnc stl free for 3d models

CNC or Not: CNC

Model Number: LV-F30A

Condition: New

Product name: Fiber laser marking machine

Laser source: MAX/Raycus

Power: 30W

Marking area: 110*110mm

Cooling Mode: Air Cooling

Laser Wavelength: 10.64 um

Applitable: Metal/nonmetal

Control Software: EZCAD Control Software

Working Accuracy: 0.001mm

Warranty: 2 year

Silver Laser Marking Machine for metal laser printer engraver 4 axis cnc stl free for 3d models

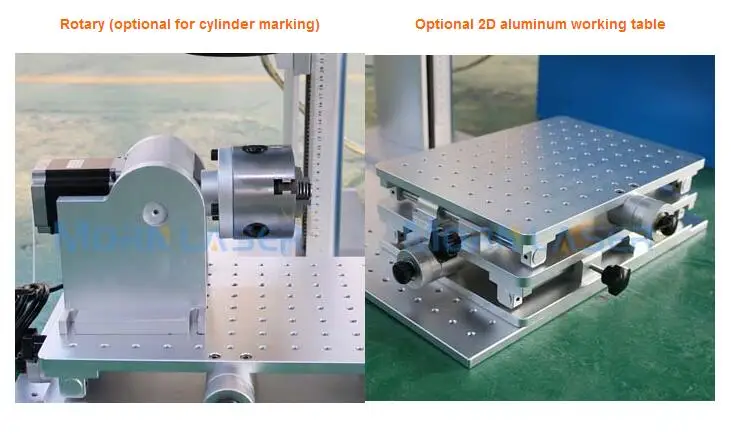

Rotary device

30W Raycus/IPG laser source

2D working table

110V voltage

1. Wide application: high tech for both metal and non metal mark

2. Great performance: Identical marking quality with high speed.

 (up to 0.02mm accuracy and 7000mm/s speed )

3. Long lifetime: Adopt advanced fiber generator, the life time could up to 100,000 hours.

4. Low consumption: It is environment-protecting and energy-saving, power consumption is reduced by 3-10 times compared with YAG laser. Using cost is really cheap.

5. Maintenance-free: The machine is maintenance-free, there is almost no any parts need to change after long term use.

6. Easy operation: The machine is very easy to use, and even the fresh man can use it well.

Model	LV-F30A
Laser power	30 W
Working  Area	110*110mm
Cooling Mode	Air Cooling
Laser Wavelength	10.64 um
Frequency of pulse	20-100 KHz
Marking Depth	≤0.4 mm
Marking Speed	≤7000 mm/s
Marking Lines	1-10 lines
Minimum Line Width	0.01 mm
Minimum Character	0.15 mm
Repeatability Accuracy	±0.002 mm
Resolution Ratio	0.1 mm
Marking Content	Text, pattern, date, bar code, etc
Operation System	Microsoft Windows XP or Windows 2000
Control Software	EZCAD Control Software
Graphic Format Supported	BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.
Unit Power	≤0.8 KW
Operation Temperature	5°C-40°C
Relative Moisture	≤ 90%, no fog
Dimensions(L*W*H)	85 x 74 x 153 cm
Power supply requirements	220 V
Optional	Rotary device/2D/3D work table/110V voltage
Warranty	24 months







1. Flash driver / u disk

2. Ruler

3. Ground wire

4. Power cable

5. Foot Pader / switch

6. key switch / laser switch

7. Scanner power switch

8. Emergency switch

9. Laser Power Adjust

10. Hexagon wrench
