CNC router DIY cutting machine frame Suitable engraver 3040 1500W 0.8KW 500W Spindle fixture 65mm

CNC or Not: CNC

Model Number: CNC engraver machine 3040 frame

Condition: New

Machine Dimensions: 660X570X450mm

Rack material: 6061 and 6063 Hard aluminum alloy

Engraving area: 400X300mm

Z-Axis Stroke: 60mm

Acceptable material thickness: MAX 60mm

Rail type: Chromeplate shaft + Linear Bearings, Surface hardening 61HRC

Diameter of Spindle motor: 65mm

Stepper motor size: 57mm

Repeat positioning Accuracy: less than 0.03mm

mini DIY milling engraving machine 3040 metal 400 spindle 4axis wood engraver and 5axis cnc router with free cutter er11 colletUSD 391.14-646.98

600X400mm area diy mini cnc router engraving machine frame with limit swith 6040USD 501.48-551.88

cnc engrave machine tool spindle clamp 52mm 65mm aluminum motor bracket carving machine motor holder milling kitUSD 9.71-13.51

DIY mini cnc engraving machine tool ER collet spanner wrench ER11 ER16 ER20 A and M type milling router kitsUSD 6.17-8.33

5 axis mini cnc milling engraving machine 3040 Column Type ball screw 1500W spindle wood router with free cutter er11 colletUSD 2256.00

NEMA 17 23 Bracket Alloy Steel NEMA17 42 Stepper Motor Base Mounting Bracket Mount for cnc router machine toolUSD 2.99

cnc engrave machine tool ER11 Collet chuck Spindle 800W lathe tool holder 3.175mm from 1-7MM for DIY mini cnc routerUSD 3.39-20.35

CNC drilling machine tool 1.5kw Spindle Motor Water Cooled 65mm 80mm 800W 1500W ER11 2.2KW 3.0KW ER20 collet With 4 BearingsUSD 84.66-220.07

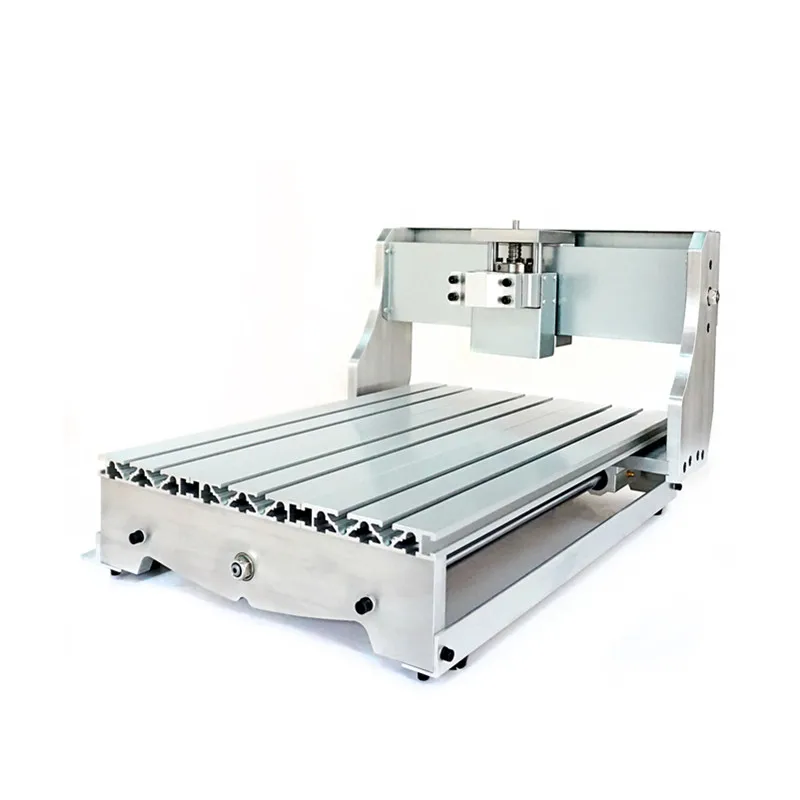

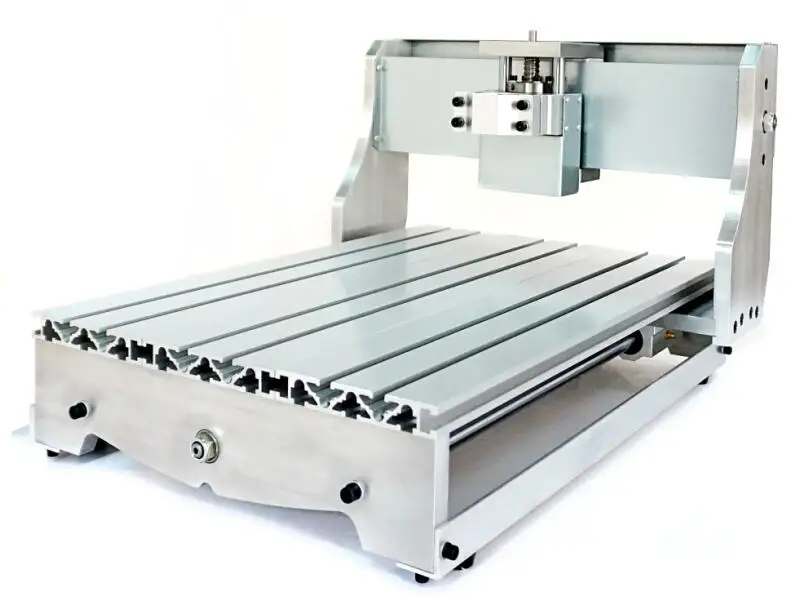

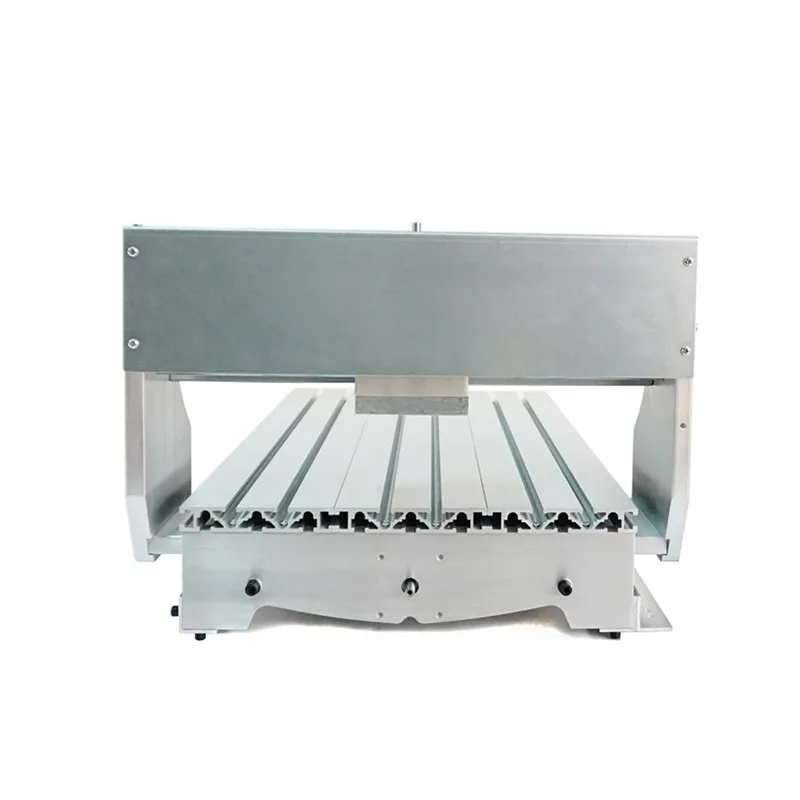

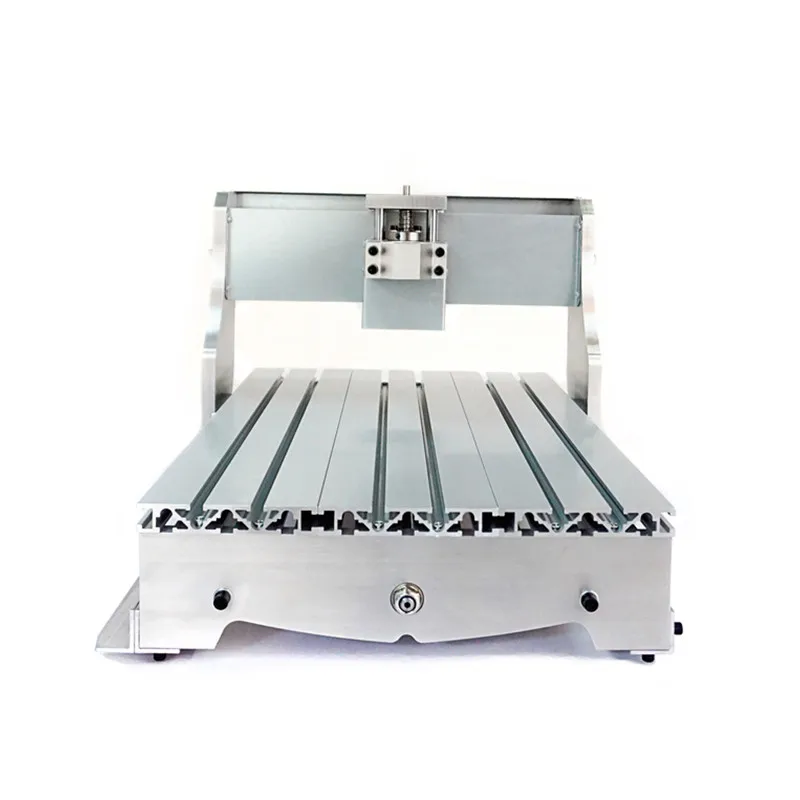

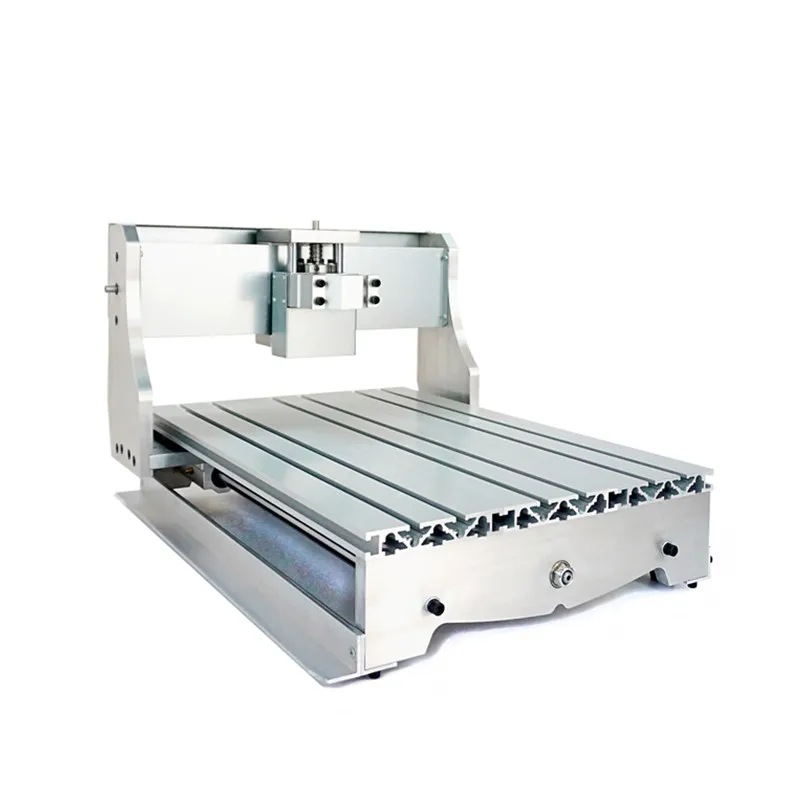

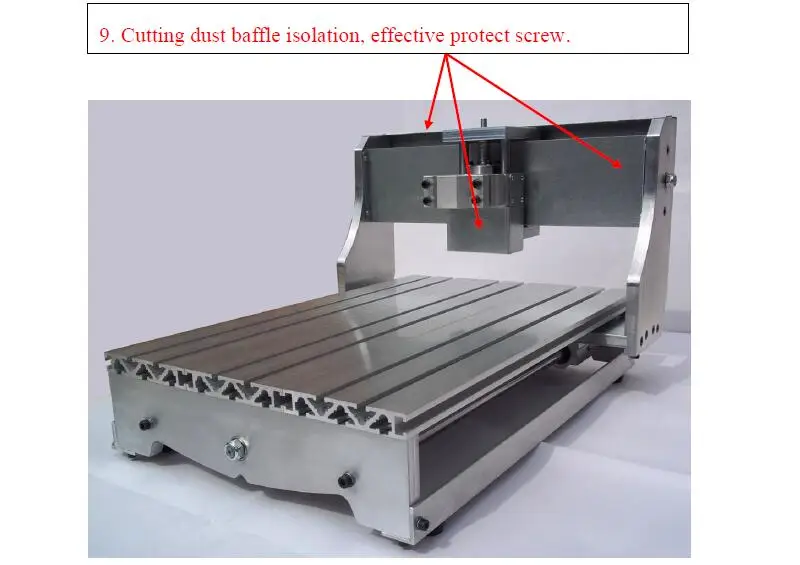

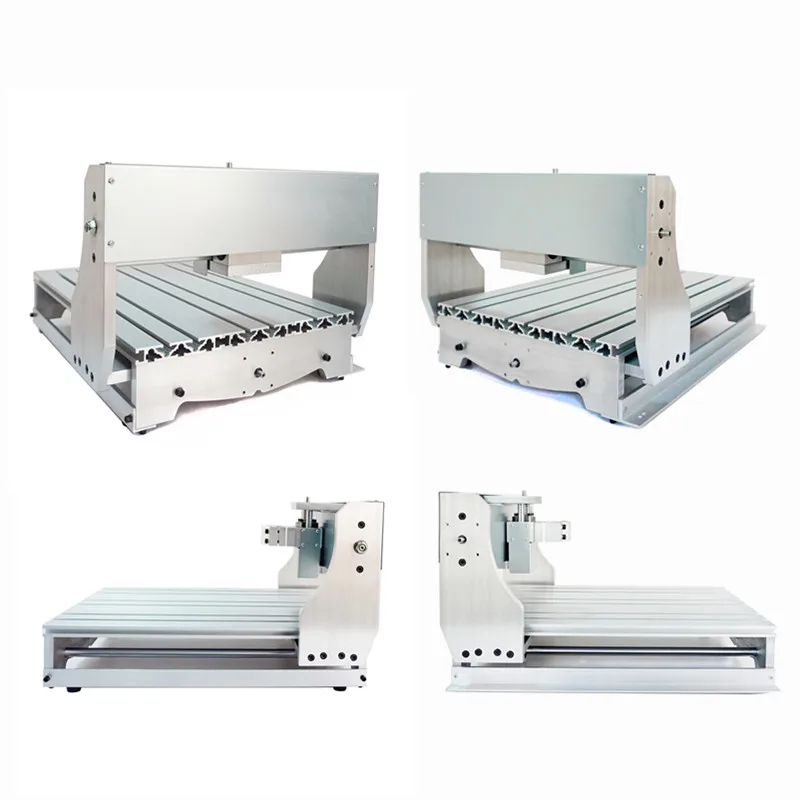

mini cnc frame 3040 with 65mm Spindle motor forengraving engraver and drilling router machine





Introduction

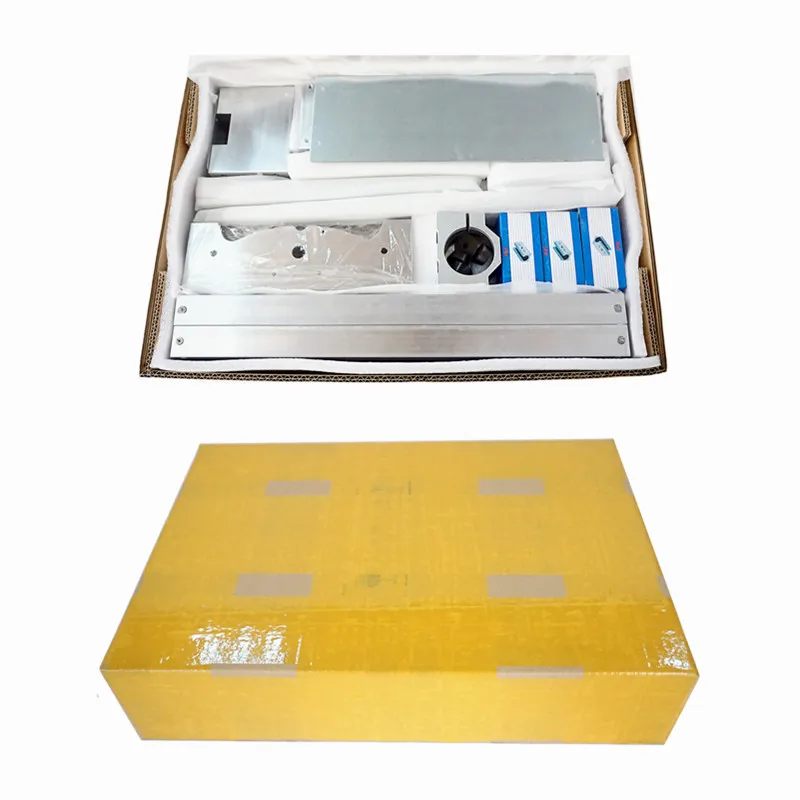

The CNC router frame need self-assembled for DIY amateur;

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building,

Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So,

you can do engraving work at office or home.



Model and Technical Parameters

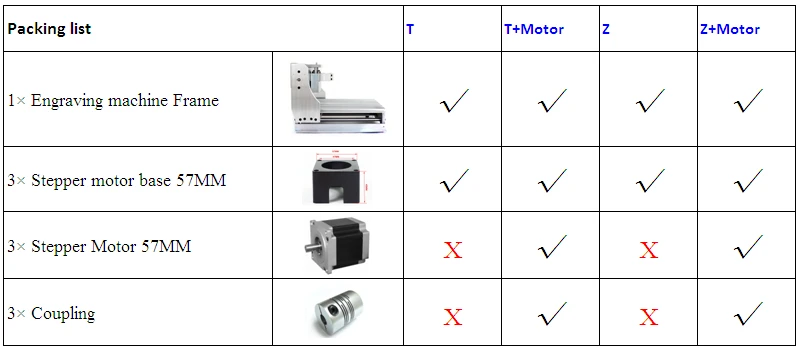

MODEL	3040
Attribute	T	T+Motor	Z	Z+Motor
Axis	3axis	3axis	3axis	3axis
Stepper motor base	Yes	Yes	Yes	yes
Coupling	No	Yes	No	Yes
Stepper Motor	No	Yes  57mm	No	Yes  57mm

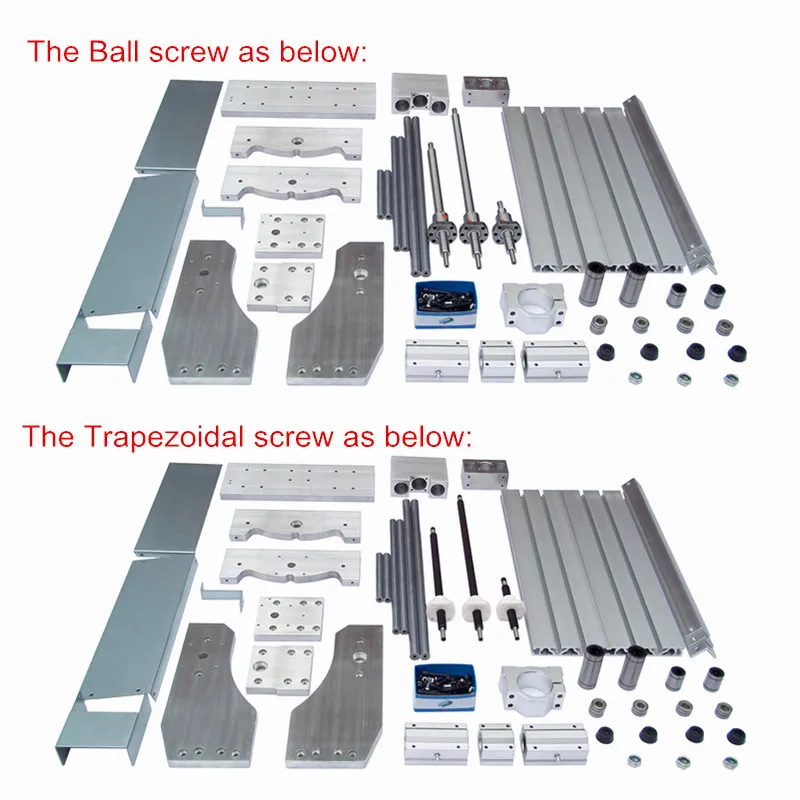

Type of screw	1404 Trapezoidal Screw	1404 Trapezoidal Screw	1605 Ball screw	1605 Ball screw
Weigh	23	25	24	26

Machine Dimensions	660X570X450mm

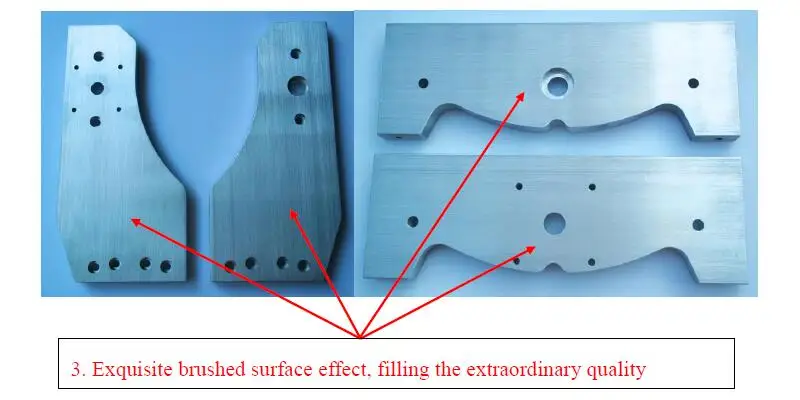

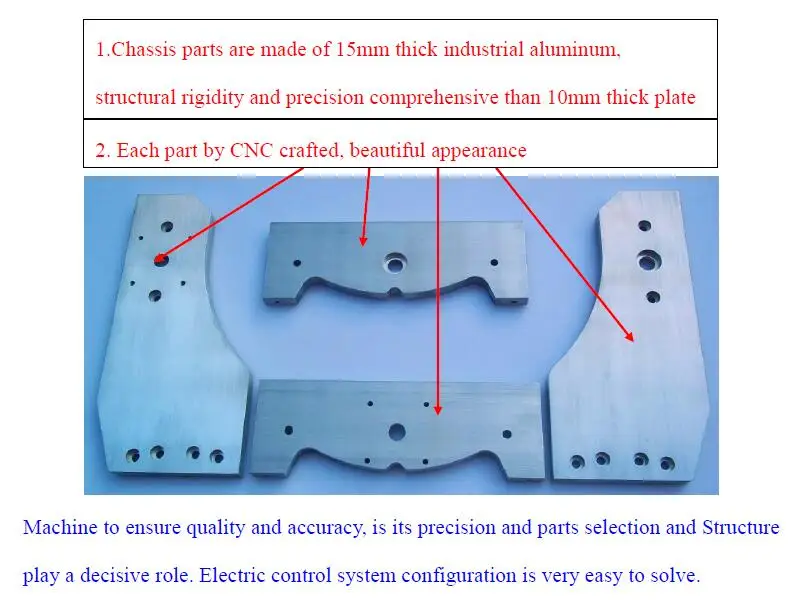

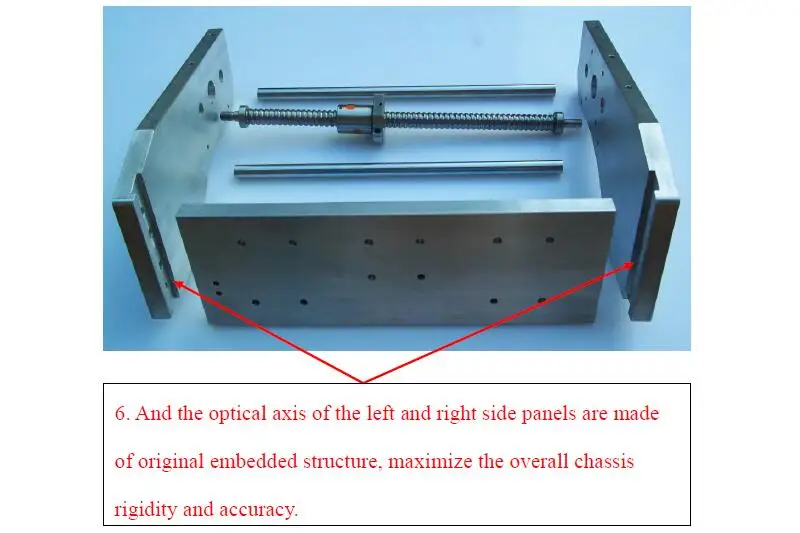

Rack material	6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)
Engraving area	400X300mm
Z-Axis Stroke	60mm, Engraving depth depends on the length of the tool edge
Acceptable material thickness	≤60mm

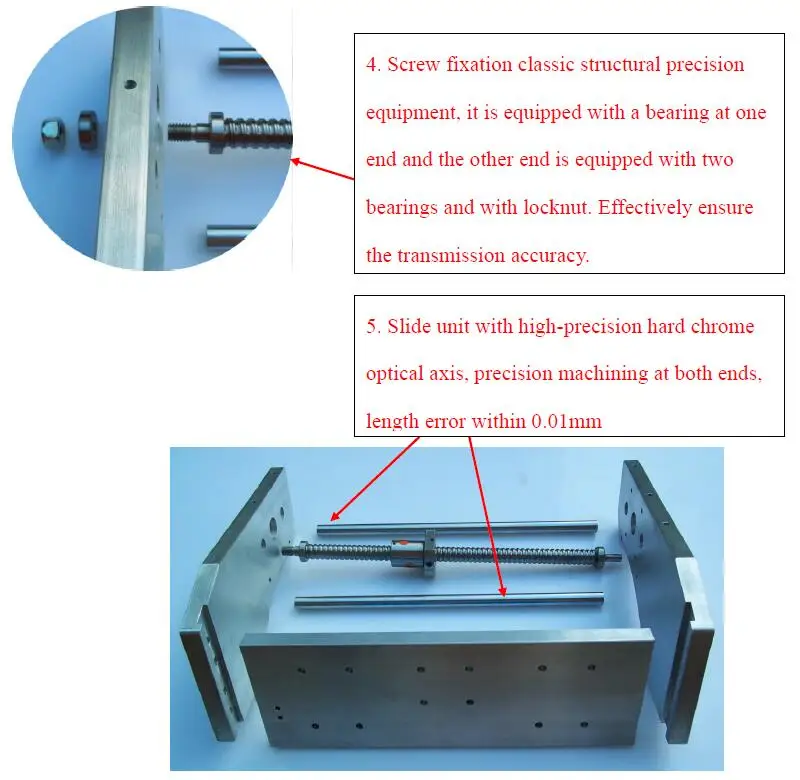

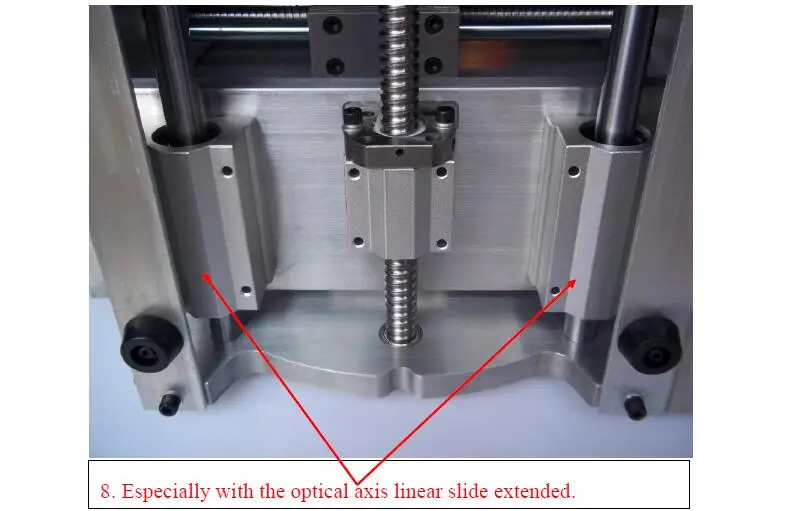

Rail type	Chromeplate shaft + Linear Bearings, Surface hardening 61HRC
Diameter of Spindle motor	65mm   ( 52mm optional)
Stepper motor size	57mm
Repeat positioning Accuracy	≤0.03mm
