CO2 Laser Power Supply 100-120W for CO2 Laser Engraving Cutting Machine HY-W120 T / W Series

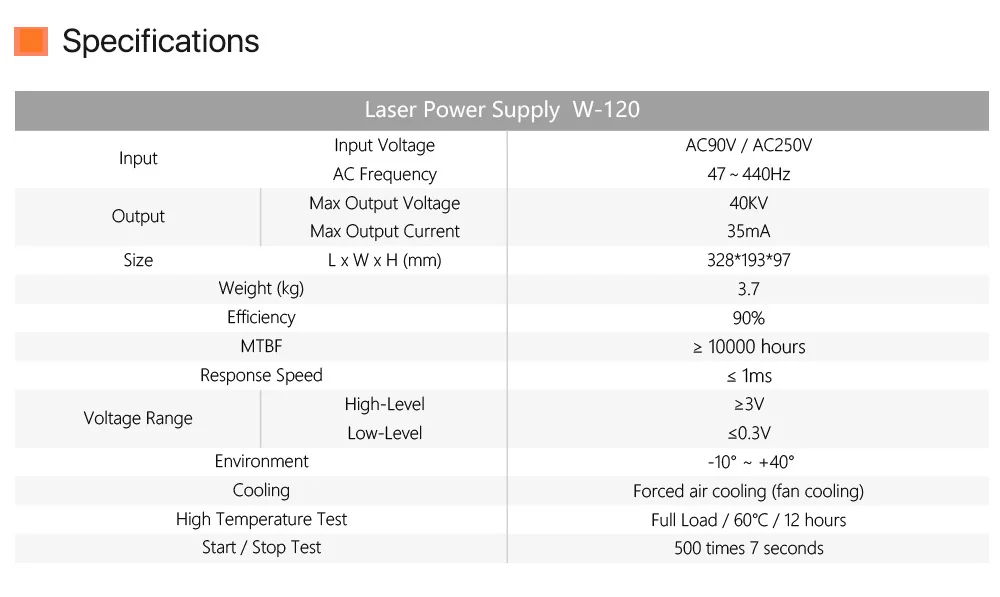

Specifications:
- Input Input Voltage: AC 90-250V
- Input AC frequency:47 - 440HZ
- Input Max Input power:800W
- Input Max Input current:10A
- Output Max output voltage :DC40KV
- Output Max output current :DC38mA
- Efficiency >/=90%(Full load)
- MTBF >/=10000 Hours
- Response speed ≤ 1ms (Time from the TTL Signal is given to the output current up to 90% pre-setting current)
- Withstand Voltage : Input-Output, Input-Enclosure: AC1500V 10mA 60S, Output cathode is connected with enclosure.
- Environment : Operating temperature: (-10-40)degree Celsius,Relative humidity: ≤90%
- Cooling : Forced air cooling (fan cooling)

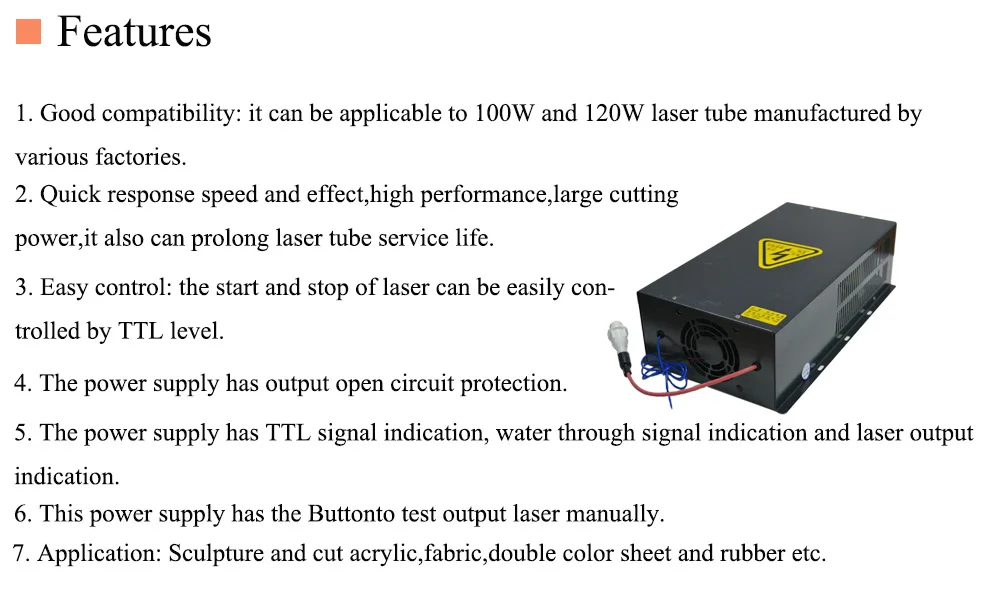

Features:
1. Good compatibility: it can be applicable to 100W and 120W laser tube manufactured by various factories.
2. Quick response speed and effect,high performance,large cutting power,it also can prolong laser tube service life.
3. Easy control: the start and stop of laser can be easily controlled by TTL level.
4. The power supply has output open circuit protection.
5. The power supply has TTL signal indication, water through signal indication and laser output indication.
6. This power supply has the Buttonto test output laser manually.
7. Application: Sculpture and cut acrylic,fabric,double color sheet and rubber etc.
Operation Instructions:
1.Laser Tube connection: (Refer to Power supply and laser Device\'s connection Diagram) High voltage terminal of HY-W120 power supply should be connected to the positive pole of CO2 laser device. Current circuit of the power supply shall be connected to negative pole (laser output terminal) of laser device, through an ampere meter or directly.
2.Connection of control signal( Refer to Power supply and control board\'s connection Diagram) The control signal shall be reliably connected to control terminal of the power supply HY-W120,after connecting the DAC output signal and TTL signal of external computer with the power supply, the laser device shall work as expected. If the laser lamp can not work properly, should check the control signal whether correct or not(include check the voltage specification and logic),if use PWM control as power control,make sure f≥20KHz,Amplitude (peak value) ≤5V,Check and protection switch WP connection is correct at same time.
3.Voltage of power input: HY-w120\'s power input of the power supply shall be 90V-250VAC.
4. Others: A group of protection switches are also reserved for detection of water switch, fan switch,open-enclosure protection and so on.
Packing list :
1 x HY-W120 CO2 Laser Power Supply
