Free Shipping 30W CNC Desktop Laser Marking Machine Metal Marking Laser Engraving Machine Metal Marking Machine
Free shipping 30W CNC desktop laser marking machine metal marking laser engraving machine metal marking machine DIY
Free shipping 30W CNC desktop laser marking machine metal marking laser engraving machine metal marking machine DIY
About the shipping:
1. For Russia or Kazakhstan and Belarus: The free shipping method for our sellers is that the machine will be sent directly to the buyer\'s city including customs clearance and taxes, which is a quick way to arrive 25-35 days.
2. To other countries: For such type, it can be sent by ocean shipping, have many contry also is free shipping, so pls contact sales to make sure, we will fins the best way to you.
Technical Parameters
Laser type | IPG / the domestic (optional) |
Laser power | 30w |
Supports graphical format | PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF |
Beam quality | m2 <2 |
Power stability | (8h) <± 1% rms |
Pulse repetition frequency | 20-2KHz |
Power consumed | <800W |
Minimum line width | 50μm |
Minimum character | 0.3mm |
Laser Wavelength | 1064nm |
Galvanometer Size | 100 * 100mm /200*200mm/300*300mm |
Cooling way | Air cooling |
Operating voltage | 110/220V ± 10% /,50/60HZ |
Ambient operating temperature | 15 ° C - 35 ° C |
Weight | 65KG |
Dimensions | 830*680*520 (mm) |
Packing | plywood wooden packaging |
Machine pictures:
Galvanometer system, high stability,long life,high efficiency, improve the quality and speed of the
machine.
High efficincy of mapping No distortion
Operation button

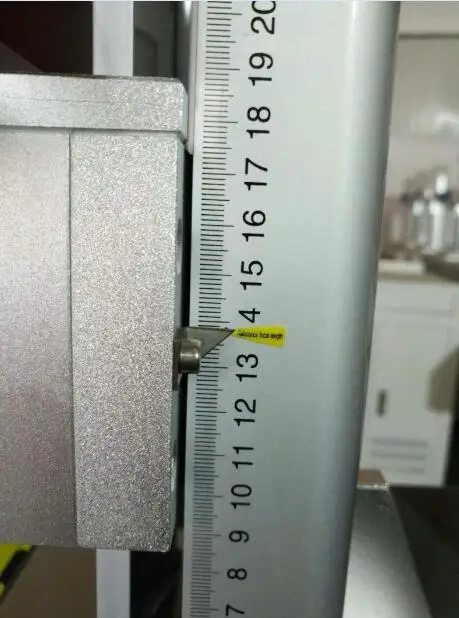

Scale

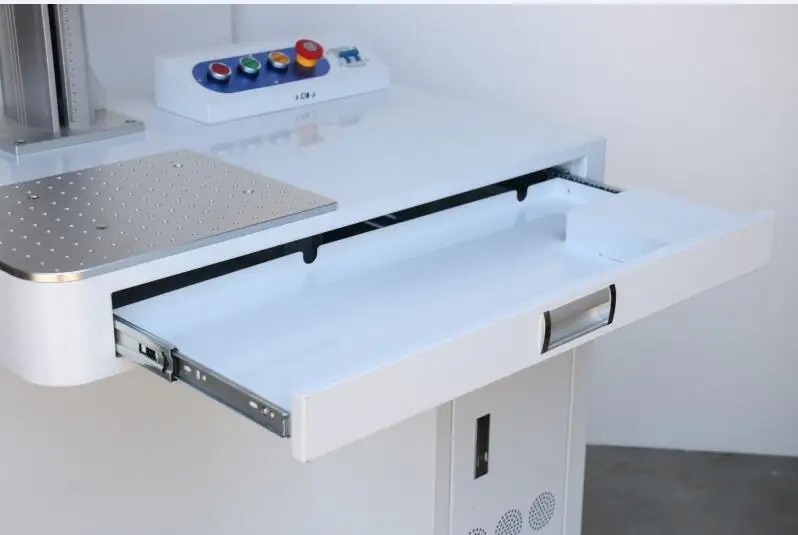

working platform

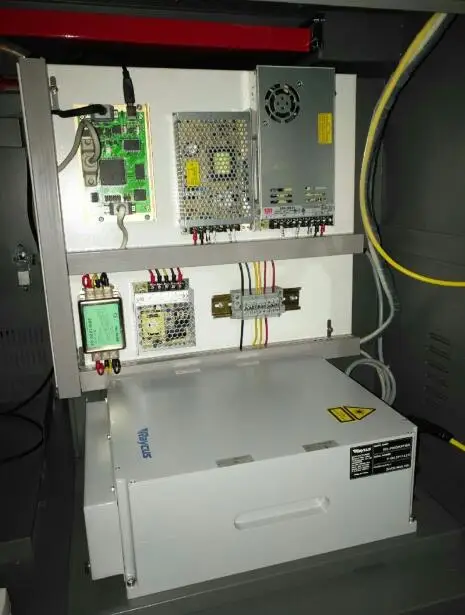

Control box:
About the lasers: this is a security signs, represents different power
and different prices.
1), 50w/50: It is high power. it is expensive than 50L. It is from Innovative and Raycus.
2), 50W Raycus, it is main for lasers, so it is more best, and more power. main from Raycus

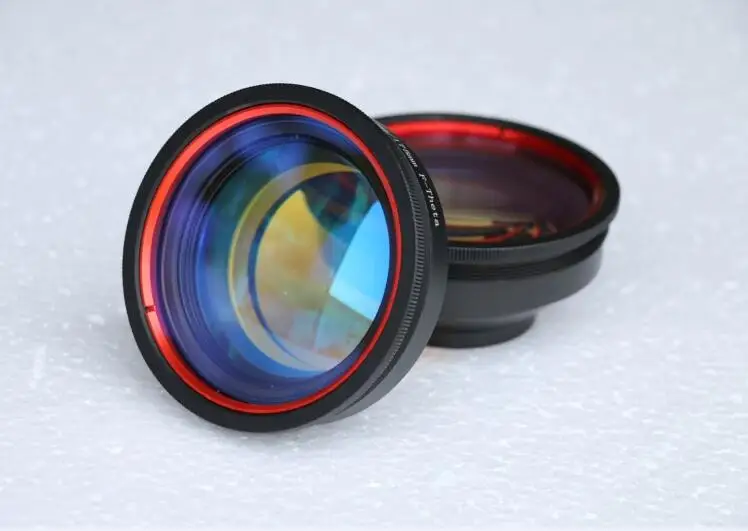

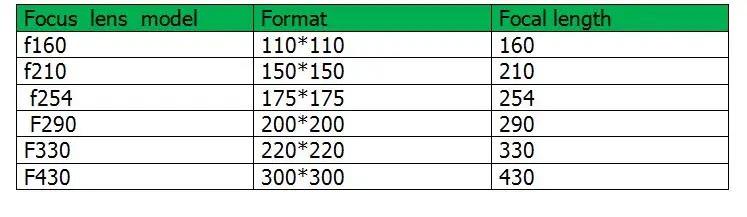

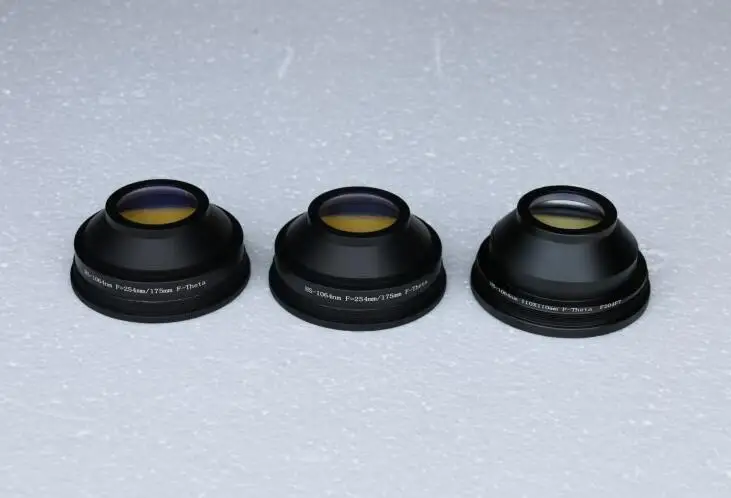

Field mirror Parameters
field mirror optional, Specific information, please ask the sales.

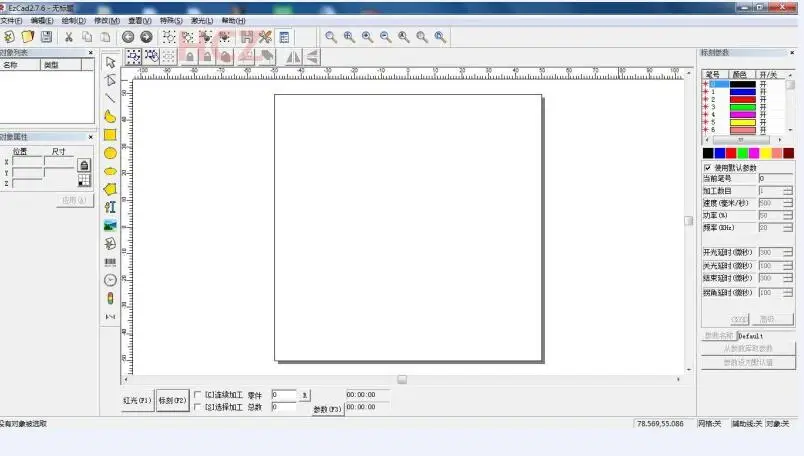

Software:

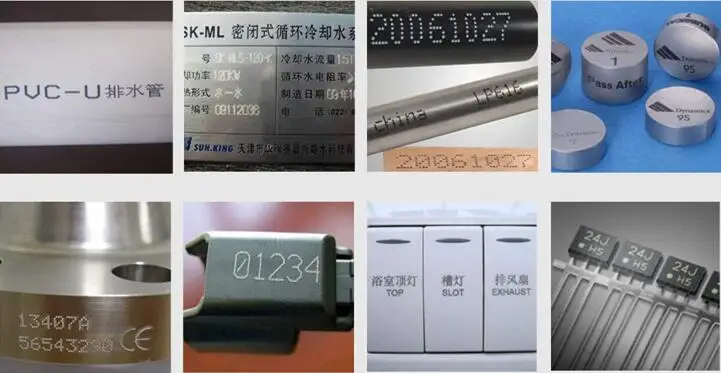

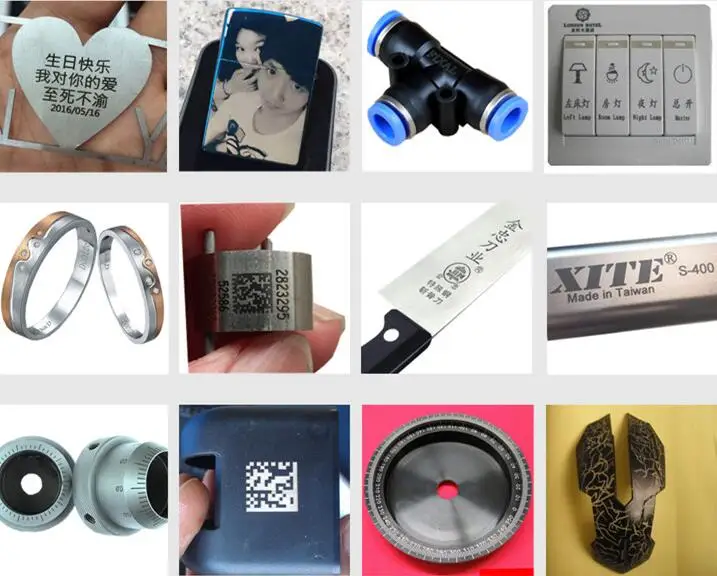

Applicable materials：Applicable various metal,.alloy and some non-metal materials.
Applicable industry:
Metal、alloy 、oxide、ABS、epoxy resin、printing ink,etc. which are widely applying for electronics,jewelry,automobiles,communication products,plastic buttons,IC,etc.
]
If you have any questions, just feel free to contact us!
