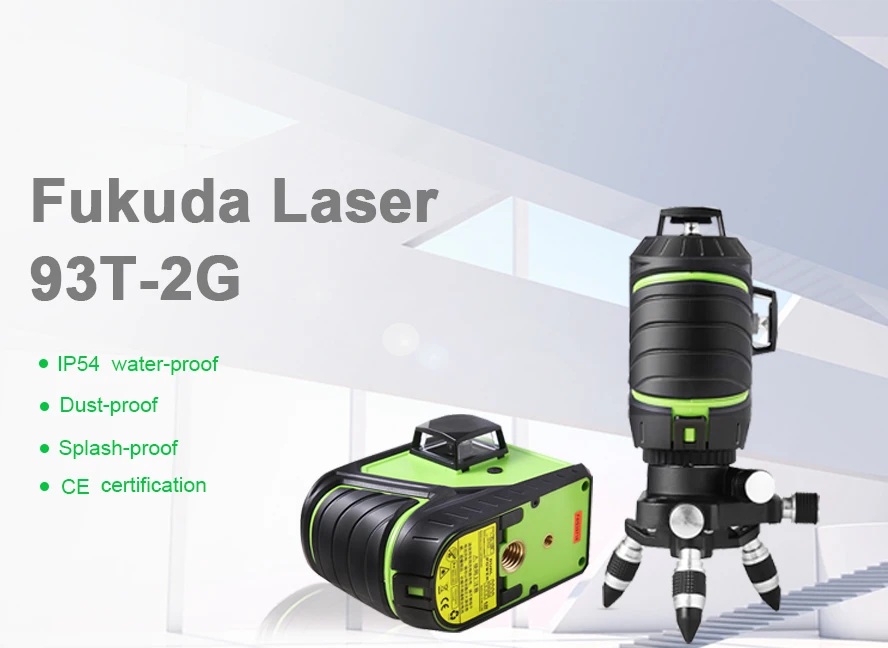

Fukuda 8Lines level 2D MW-93T-2G Laser Level Self-Leveling 360 Horizontal And Vertical Cross Super Powerful green Laser Beam

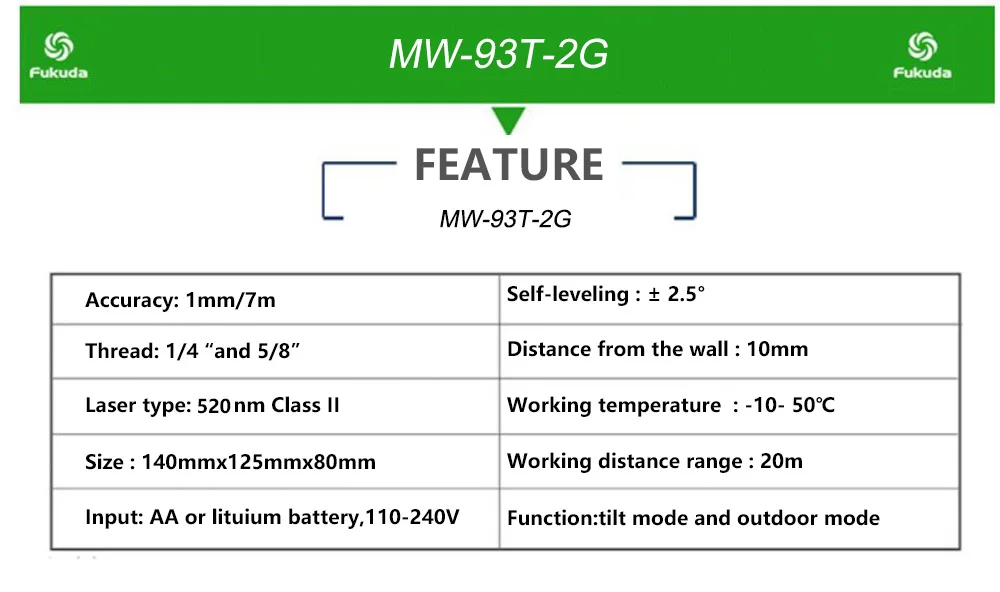

ABOUT LASER LEVEL:
Waterproof grade: IP: 54
Laser Class: II
Level Over-all accuracy: ± 1mm / 7m
Orthotropic accuracy:90° ± 30"
Leveling range: ± 3.5 °
Leveling: gravity pendulum
Maintenance and after-sales: one year warranty
Line-width: 2mm
Working range (Radius): 20m
Power supply:Li-battery or AA battery
Working time: 4.5 Hrs
BOUTTON INTRODUCTION:
The laser level has two laser windows, each window can launch 4 laser lines, totally 8 laser lines(4 laser lines combine to a plane). Attention: There are at least 4 laser lines, it can not keep 1 or 2 laser lines

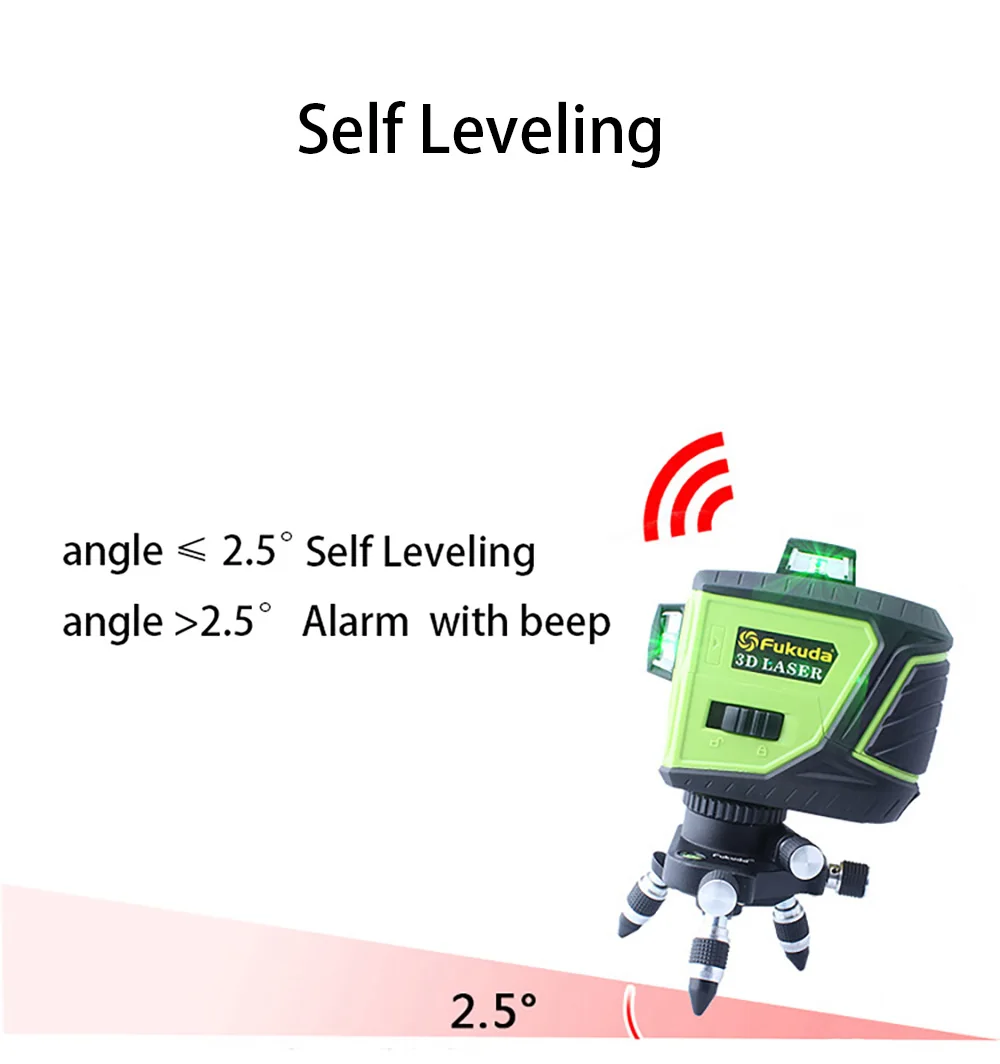

Once the pendulum is in unlocked condition, the instrument will be self-leveling within 4 degrees, when the unit is using out of the leveling range, laser lines and main indicator will keep flashing.
MOUNTING OPTIONS:
The 2D MW-93T laser level has one mounting nut with a 1/4 " 5/8" thread at the bottom of the unit. This allows you to mount it either to a bracket or a tripod for security. The unit can be placed on a regular surface, but securing it usually guarantees less movement for more accurate work.
PENDULUM LOCK:
The 8 lines green beam laser level is a precision instrument and should be treated with care. When not in use, the pendulum should always be in the Off position (OFF mode). Locking the pendulum allows the Cross Line Laser to better withstand vibration and Trauma incurred during transportation or if the units is dropped.
Powerful laser line, before use it, do not look directly into the laser, switch lock, protect children.

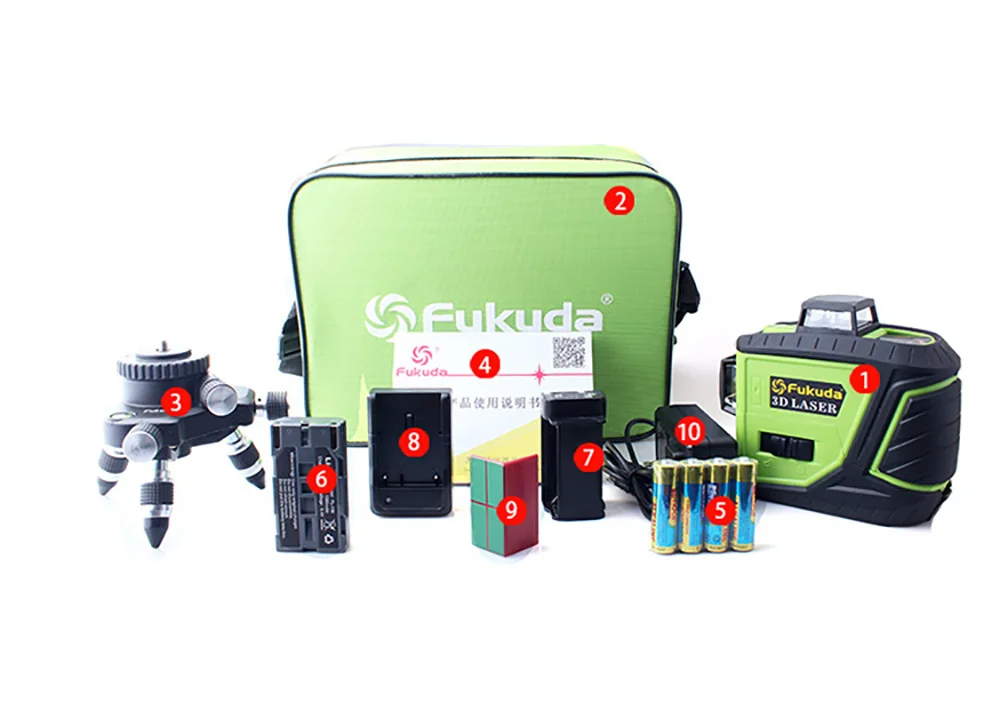

PACKAGE INCLUDED:
1 x FUKUDA 93T Laser level set
1 x Stand base
1 x Cloth case
1 x Reference Board
1 x Manual
