Offline DSP Control System Engraving Machine 6090 U Disk Read G Code CNC Router LY CNC

Offline DSP control system Engraving machine 6090 U disk read G code CNC Router LY CNC 6090L Linear Guide Rail machine

Condition: New

CNC or Not: CNC

Model Number: CNC Liner guide 6090

Acceptable material thickness: 140mm

Rail type: Linear guide rail TRH20 (more precise moving)

Spindle motor: 1.5KW or 2.2KW VFD water cooling spindle , 0-24000r/min

Communication interface: Not need computer, U disk read G code

Offline DSP control system Engraving machine 6090 U disk read G code CNC Router

LY CNC 6090L Linear Guide Rail machine

Mini NEMA23 57 Stepper Motor Base Bracket Mount for DIY CNC LatheUSD 6.21

Wood router cnc lathe machine 4030 1.5kw USB port InterfaceUSD 1880.00-2360.00

5pcs Light Pipes 300mm 1/4 Round Nozzle Water Cooling Flexible With Plastic MayitrUSD 10.70

DIY CNC Router Engraver machine LY Mini with 200W spindle motorUSD 659.00

DIY CNC Kit 0.8KW 1.5KW CNC Spindle Motor + ER11 1.5kw 2.2KW Inverter VFD for CNC Router Milling MachineUSD 340.00-380.00

1500W USB 3 Axes 4 Axis CNC Router 6040 Woodworking PCB Milling Drilling Machine with MACH3 Remote ControllerUSD 2100.00-2600.00

2200W 3 Axes 4 Axis Mini CNC Router 8060 USB Limit Switch CNC Metal Milling Cutting Machine with MACH3 Remote ControllerUSD 3150.00-3630.00

Introduction

The CNC 6090 router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.





Linear Guide Rail, More Precise on moving.

The engraving process is visible as controlled by computer

Simple operation and installation

Warranty

1 year full warranty directly from factory



Shipping

•     By DHL & UPS & FEDEX with tracking number, need 5~10 days;

•     By SEA , need 40~50 days;

•     Please email us your phone number after you pay for the item only for delivery purpose.





Technical Parameters

MODEL	Offline DSP control system 6090L
Machine Dimensions:	900 * 1200 * 600mm
Rack material:	6061 and 6063 Hard aluminum alloy
Table size	640 * 1080mm (20mm aluminum alloy T table)
Engraving area:	560 *850mm
Z-Axis Stroke:	120mm, Engraving depth depends on the length of the tool edge
Acceptable material thickness：	140mm

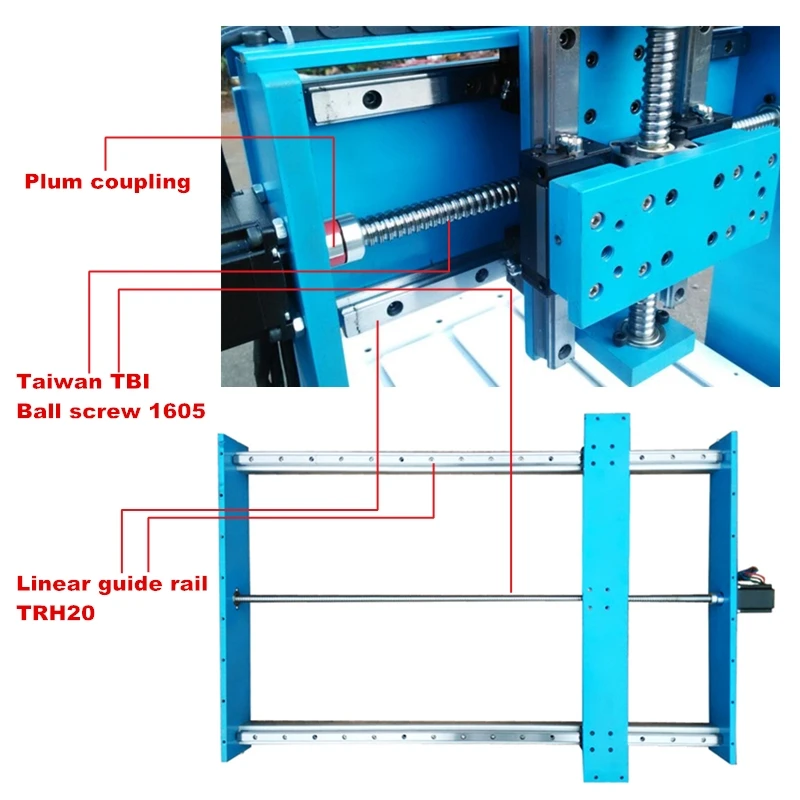

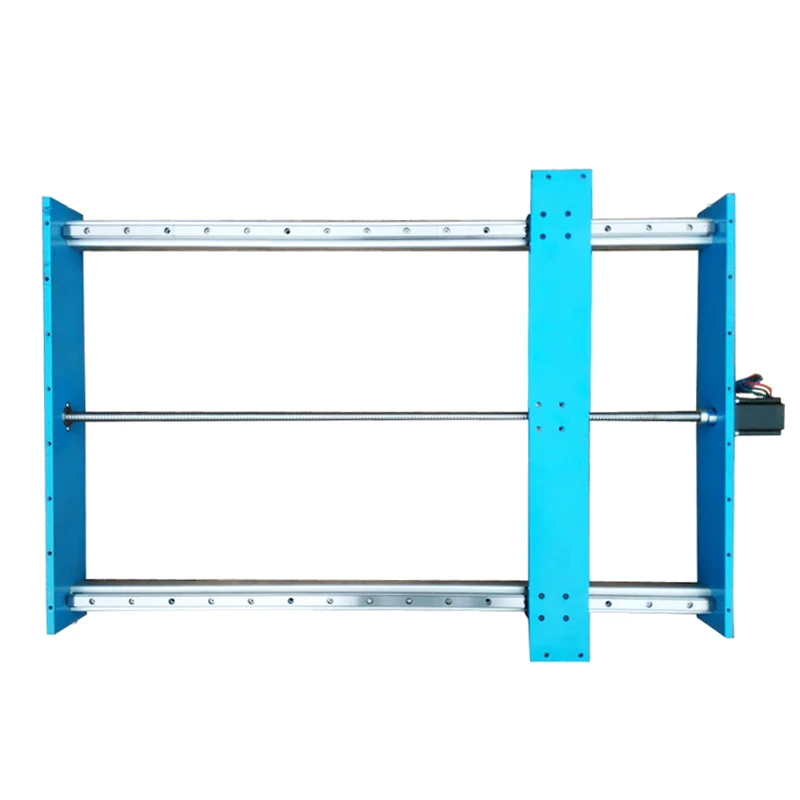

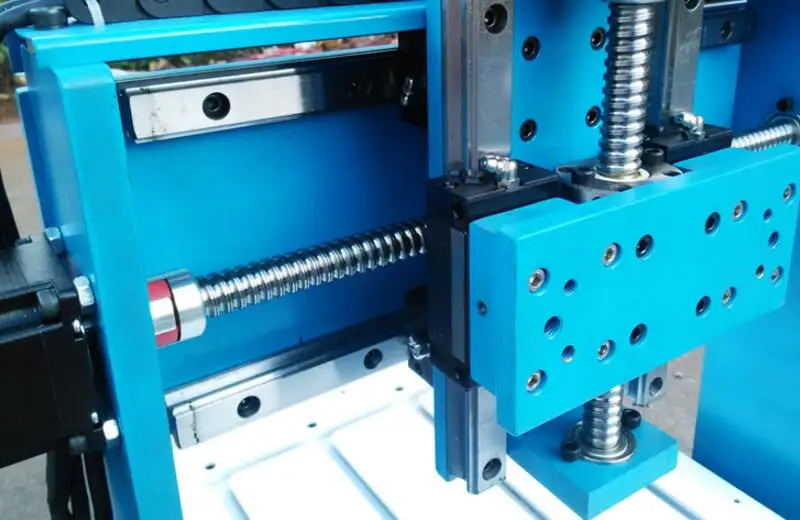

Rail type:	Linear guide rail TRH20 (more precise moving)

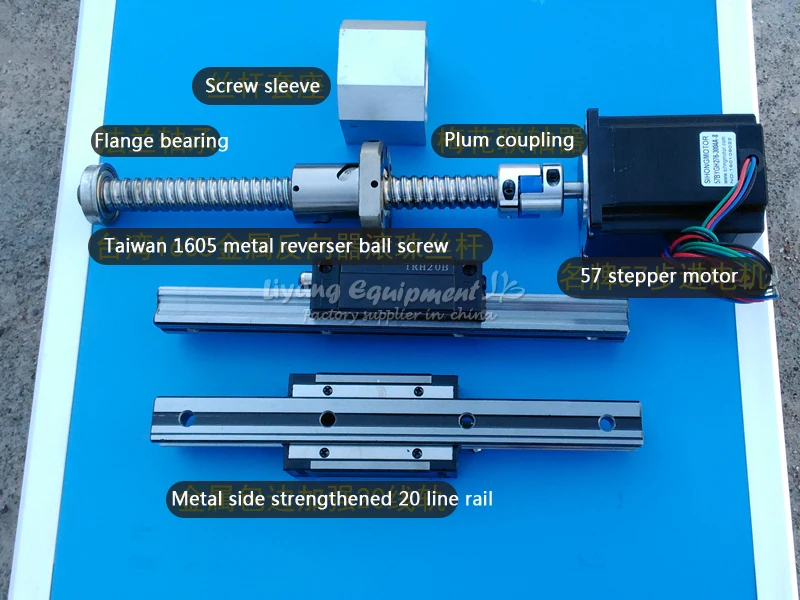

Type of screw:	Taiwan TBI Ball screw 1605
Spindle motor:	1.5KW or 2.2KW VFD water cooling spindle , 0-24000r/min
Collet type:	1.5KW ER11, 2.2KW ER20,1/8"(3.175mm) and 6mm Collet
Stepper motor and drive:	two-phase 57/3A
Maximum operating speed:	4000mm/min (Engraving speed :　300-3000mm/min)
Repeat positioning Accuracy:	0.03mm
Communication interface:	Not need computer, U disk read G code
Tool auto-checking	yes
Software Compatability:	Mach3 (Type3,Wentai, ArtCAM, coppercam)
Command code:	G code/.nc/.ncc/.tab/.txt
Machine weight:	155kg

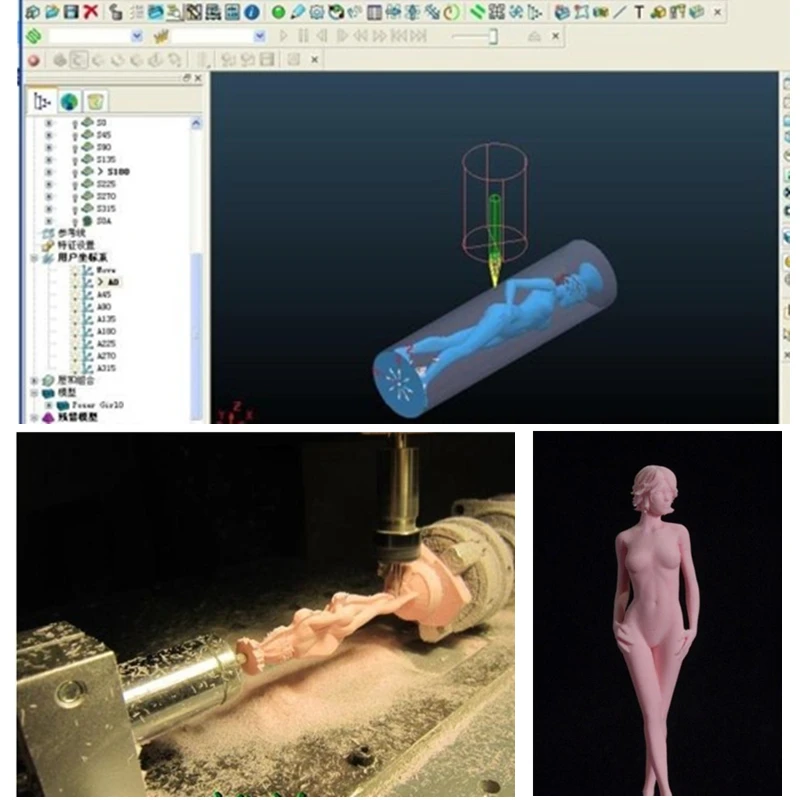

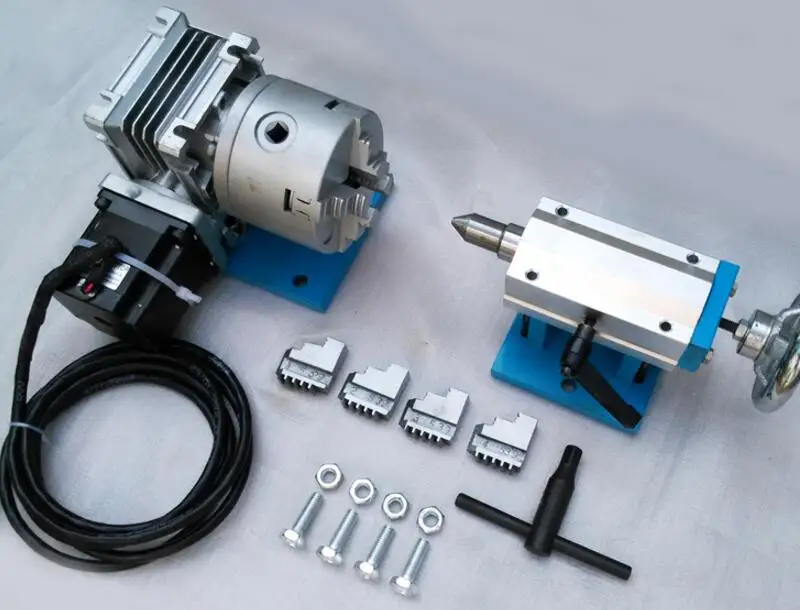

Rotation Axis (4th Axis) Description:the color of the rotary axis will be send at random	Chuck Size: 80mm self-centering chuck Center height: H = 71mm Clamping diameter: 80mm or less Deceleration mode: Gear box Deceleration ratio: 20:1 Stepper motor: 57 step motor current 3A Positioning accuracy: 0.075 °





Attribute	3axis		4axis
	1.5KW	2.2KW	1.5KW	2.2KW
Axis	3axis	3axis	4axis	4axis
Weigh	155KG	155KG	160KG	160KG

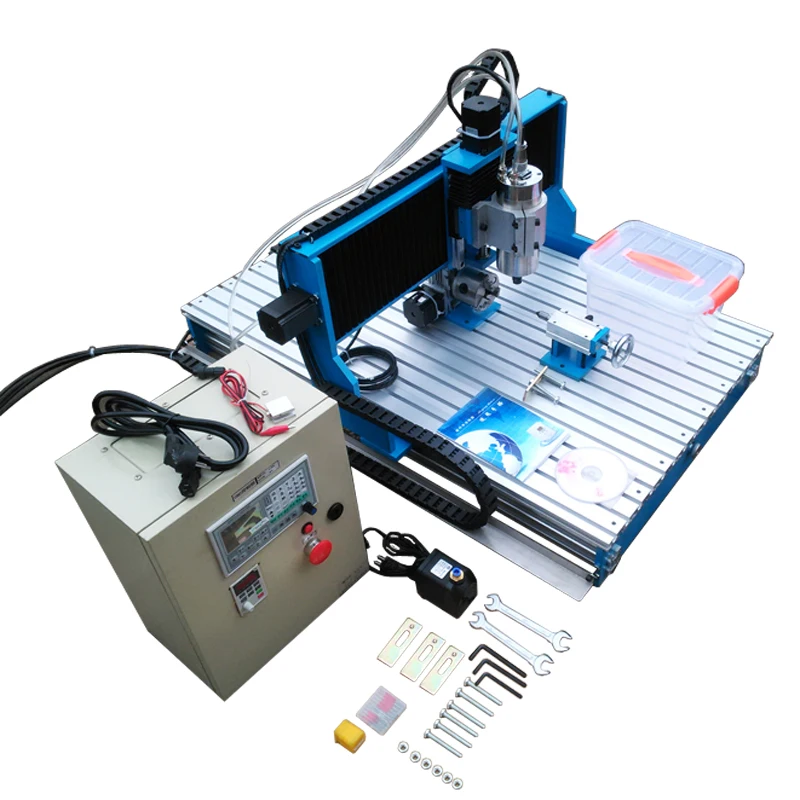

Packing list
1× Engraving machine	√	√	√	√

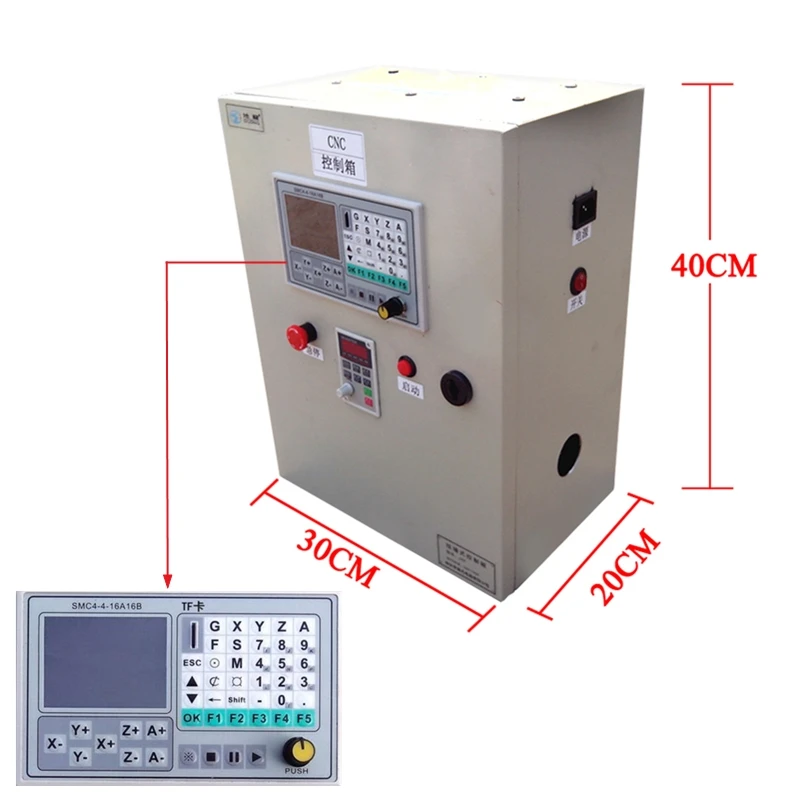

1×Offline DSP Control box	√	√	√	√
1× Power cable	√	√	√	√
1× Parallel port cable	ⅹ	ⅹ	ⅹ	ⅹ
1× USB port cable	ⅹ	ⅹ	ⅹ	ⅹ
1× Tool package (tools 8 pcs, wrench 2pcs, clamp 4pcs)	√	√	√	√
1× Rotation axis	ⅹ	ⅹ	√	√
1×tool auto-checking instrument	√	√	√	√

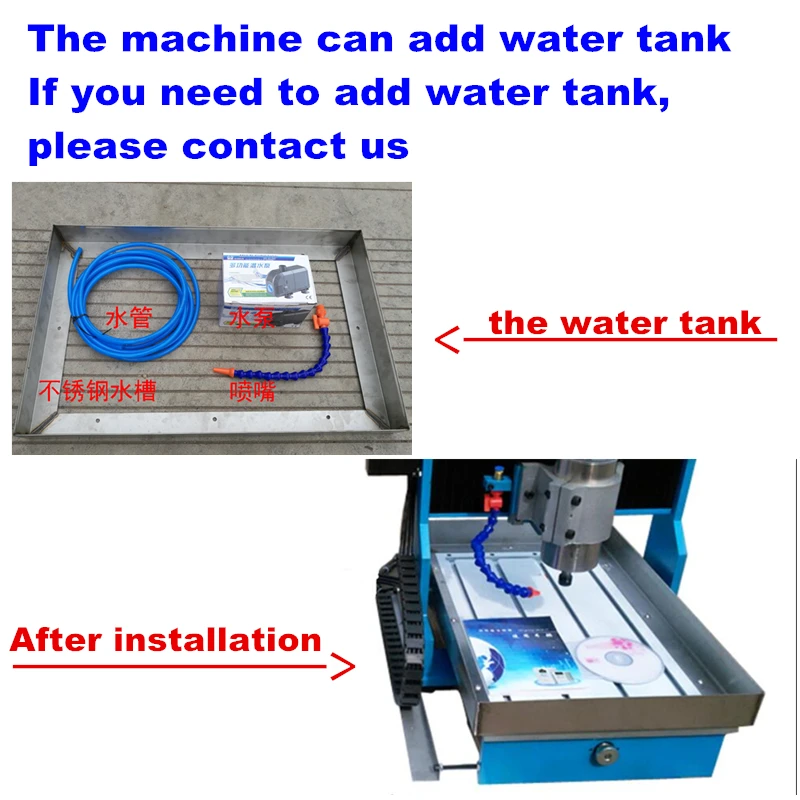

1x water pump	√	√	√	√
1× CD (if not get, may be lost in customs, please contact us)	√	√	√	√

Note:

This machine have other spindle, For example 800W;

But the price may be different;

If you need other spindle ,please message us or contact us, thank you very much;



this machine we also have 3 axis model ,if you need pls contact us























Attribute	3axis		4axis
	1.5KW	2.2KW	1.5KW	2.2KW
Axis	3axis	3axis	4axis	4axis
Weigh	155KG	155KG	160KG	160KG
Packing list
1× Engraving machine	√	√	√	√
1×Offline DSP Control box	√	√	√	√
1× Power cable	√	√	√	√
1× Parallel port cable	ⅹ	ⅹ	ⅹ	ⅹ
1× USB port cable	ⅹ	ⅹ	ⅹ	ⅹ
1× Tool package (tools 8 pcs, wrench 2pcs, clamp 4pcs)	√	√	√	√
1× Rotation axis	ⅹ	ⅹ	√	√
1×tool auto-checking instrument	√	√	√	√
1x water pump	√	√	√	√
1× CD (if not get, may be lost in customs, please contact us)	√	√	√	√



Shipment



After payment is done and passed aliexpress checking, shipping will be made within 7 work days.



Custom Duty

A  Seller’s shipping method  means send machine to local seaport by sea , terms is CFR. please make sure can clear customs .

Import duties,taxes and your local fees are not included in the price or shipping charge .These charges are the buyer\'s responsibity.Pls make sure you can clear customs before order if can not clear customs before the deadline, your Customs will distroy the goods, and you have to bear all cost caused by the Customs clearance dealy. If want to send by courier like DHL, UPS, Fedex or EMS, pls provide us with your city name, post code, so we can check if arrive, if remote areas and how much they cost.



B  Please check with your country\'s customs office to determine what these additional costs will be before you order.



Note



A  Pls check all goods carefully before you sign to accept the package and report to us within one week if there are any parts loss or machine problems. Pls show related photos and videos.



B Due to machine is special product, big size, if shipping back, shipping cost and import tax will be very high, so we do not accept Return, but we will grantee that it can work well. During warranty, we can change you spare parts for free (Except for consumable parts)



C For Machine,Warranty is one year,during warranty,if the spare parts was sent back for repair, buyer pays for the returning shipping cost and fees, we responsible for the 2nd shipping cost and handling charges.(Except for consumable parts)
